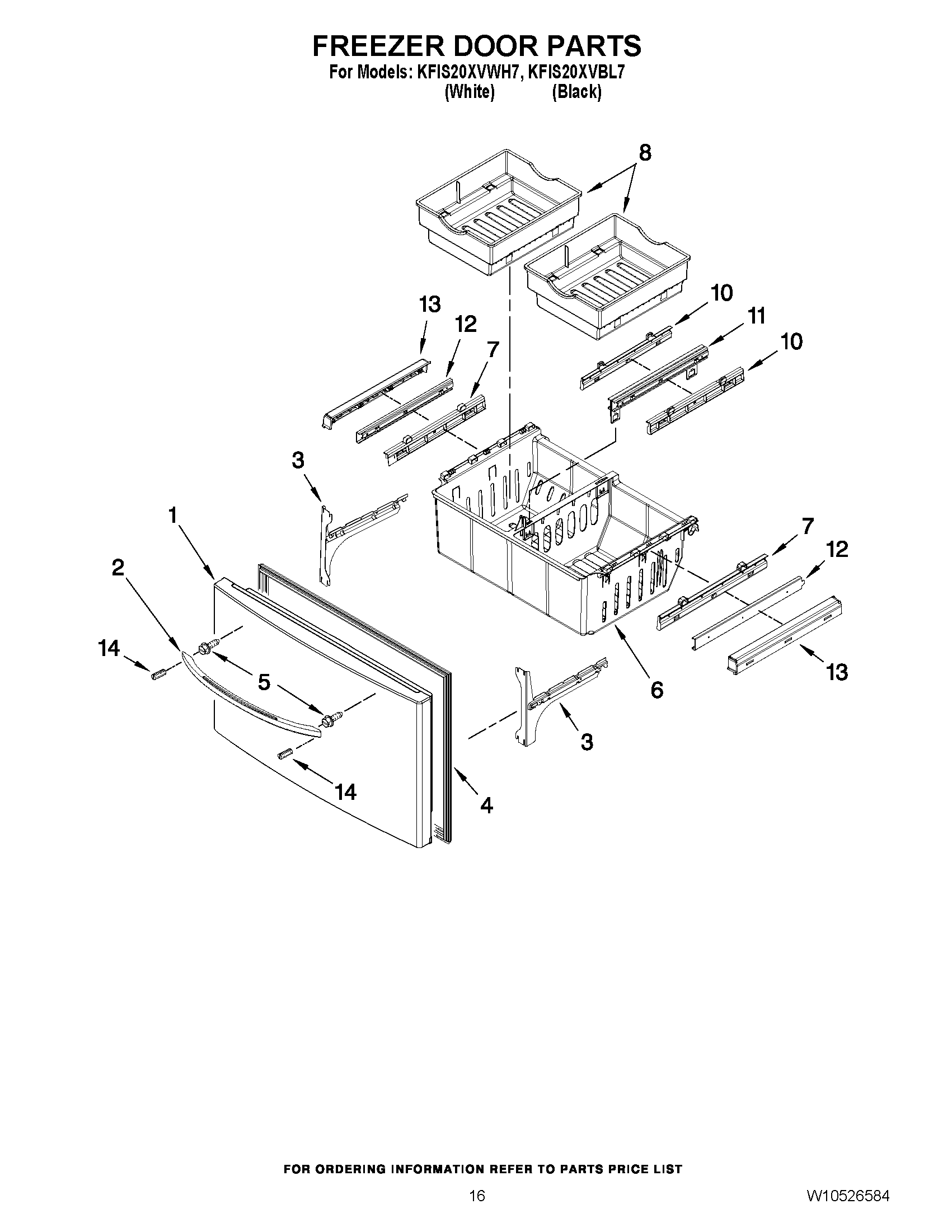

KFIS20XVBL7 09 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (WHITE)
1	FREEZER DOOR (BLACK)
2	HANDLE, DOOR (BLACK)
2	WPW10314515 Whirlpool Refrigerator Handle
3	WPW10330991 Whirlpool Refrigerator Bracket
3	WPW10330993 Whirlpool Refrigerator Bracket
4	WPW10443321 Whirlpool Door Gasket
4	WPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
5	WPW10661886 Whirlpool Refrigerator Door Handle Screw
6	BIN, LOWER
7	W10187469 Whirlpool Refrigerator Bracket
8	W10184227 Whirlpool Refrigerator Freezer Bin
10	W10184223 Whirlpool Refrigerator Bracket
11	W10235358 Whirlpool Refrigerator Glide
12	WPW10235368 Whirlpool Refrigerator Glide
13	W10826790 Whirlpool Refrigerator Retainer
13	W10826791 Whirlpool Refrigerator Retainer
14	WP3400203 Whirlpool Screw
