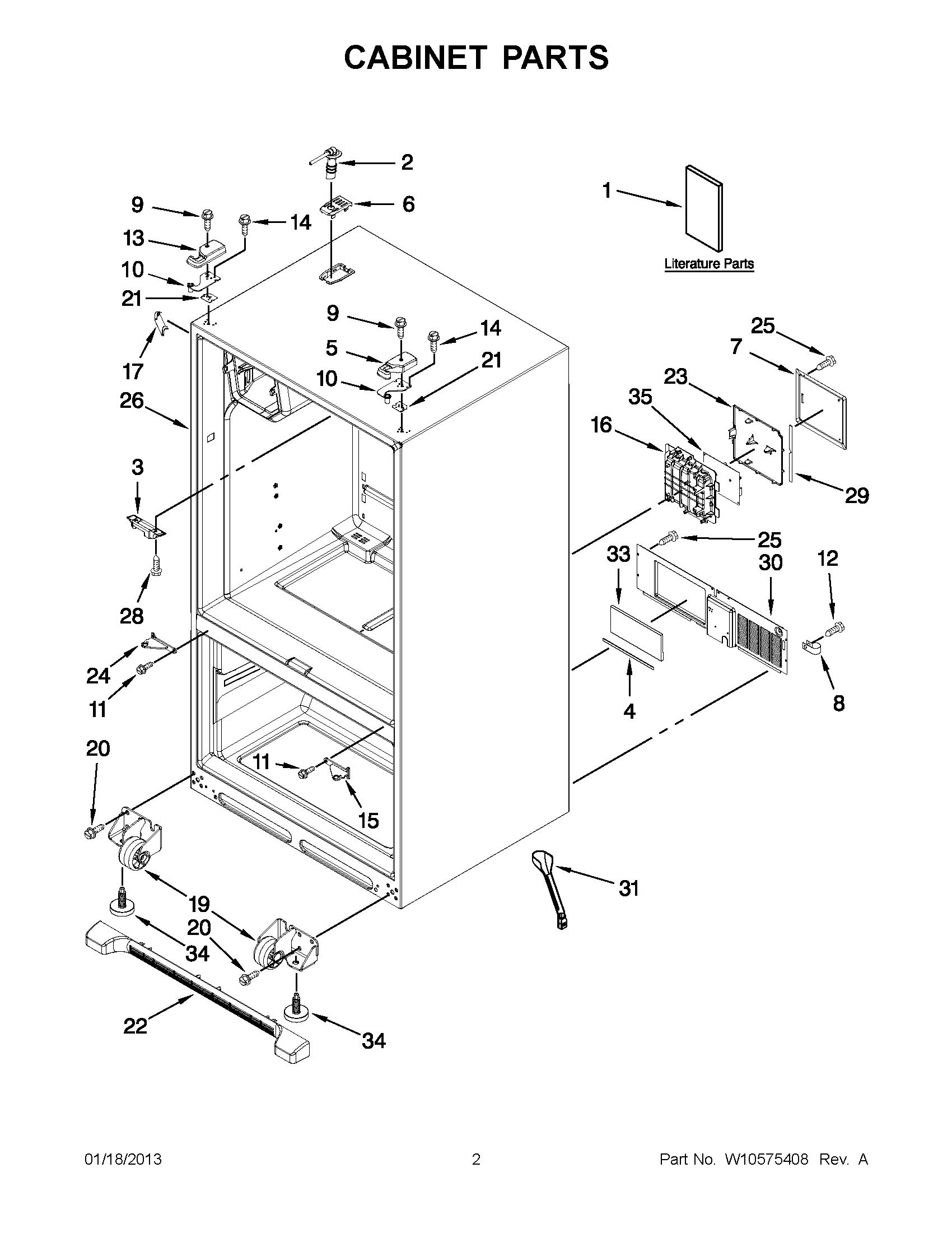

KFIS20XVBL8 01 – CABINET PARTS

KFIS20XVBL8 01 – CABINET PARTS

Written by

in

KFIS20XVBL8 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1GUIDE, ENERGY
1USE & CARE GUIDE
2TUBE-WATER
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WP67005956 Whirlpool Refrigerator Cover
567005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
612981401B Whirlpool Refrigerator Filtration Cover
612981401W Whirlpool Refrigerator Cover Filter
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10W11592375 Whirlpool Door Hinge
10W11592374 Whirlpool Refrigerator Top Door Hinge
11WP67006380 Whirlpool Screw
1267006425 Whirlpool Refrigerator Screw
13W10337647 Whirlpool Refrigerator Cover
13WPW10337634 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
1513000002WD Whirlpool Refrigerator Door Hinge
15W10918168 Whirlpool Refrigerator Door Hinge
16WP67006390 Whirlpool Refrigerator High Voltage Box
1712587703W Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
2112999501 Whirlpool Refrigerator Hinge Shim
2112999502 Whirlpool Refrigerator Hinge Shim
22WPW10534154 Whirlpool Refrigerator Front Grille
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23W10296536 Whirlpool Refrigerator Cover
24W10918113 Whirlpool Refrigerator Door Hinge
24W10918164 Whirlpool Refrigerator Door Hinge
25W11686675 Whirlpool Screw
26CABINET (NOT A SERVICEABLE PART)
28W10854958 Whirlpool Refrigerator Screw
29GASKET, HV BOX
30WPW10270394 Whirlpool Refrigerator Back Cover
31W10619951 Whirlpool Drain Tube with Grommet
33INSULATION, SOUND
34WPW10141622 Whirlpool Leveler
35WPW10312695 Whirlpool Refrigerator Control Board + Core
