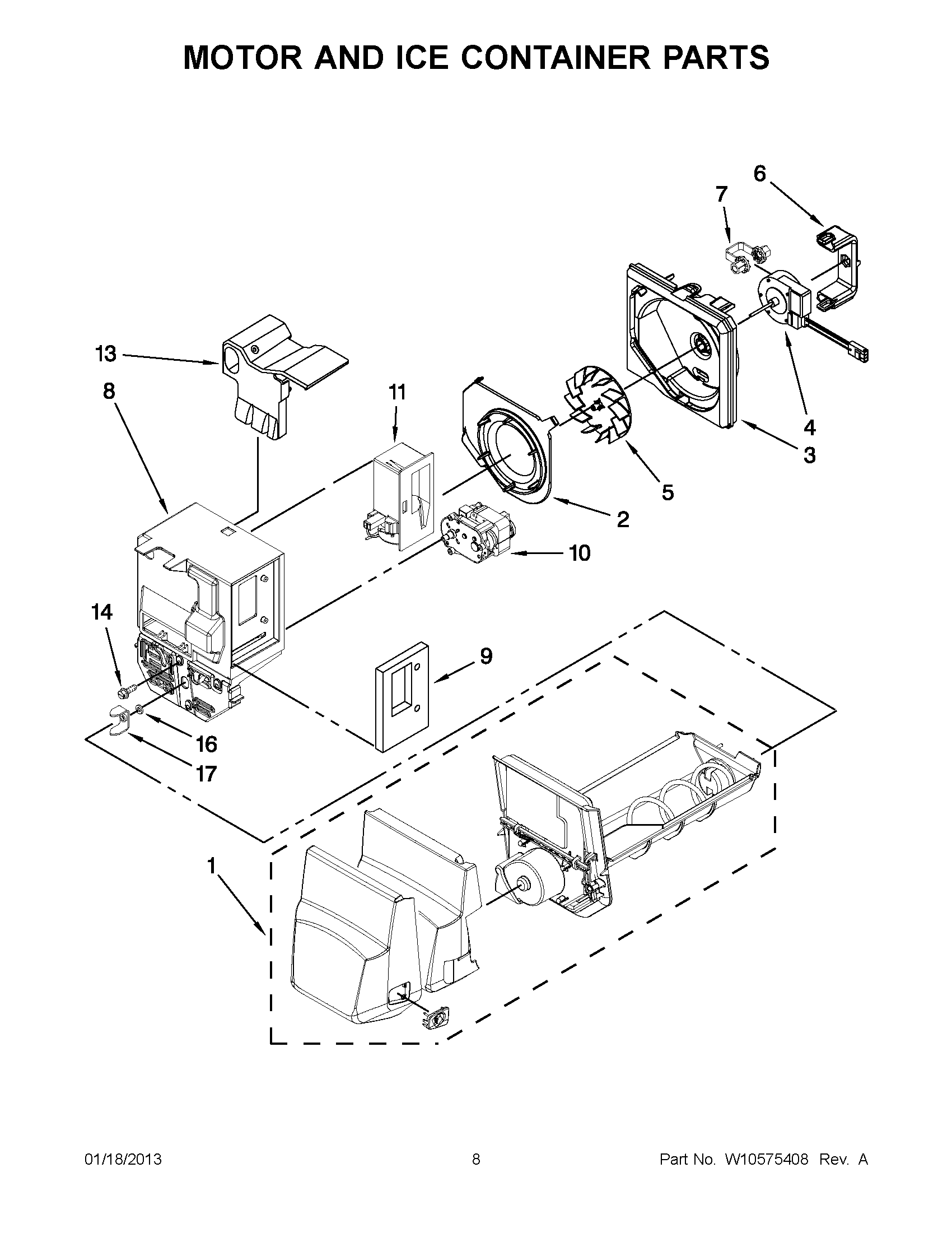

KFIS20XVBL8 04 – MOTOR AND ICE CONTAINER PARTS

KFIS20XVBL8 04 – MOTOR AND ICE CONTAINER PARTS

Written by

in

KFIS20XVBL8 04 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1WPW10324088 Whirlpool Refrigerator Ice Bin
2W10121282 Whirlpool Refrigerator Insert
3W10121281 Whirlpool Refrigerator Shroud
4WPW10162697 Whirlpool Refrigerator Motor
5WPW10123444K Whirlpool Refrigerator Wheel
6W10165970 Whirlpool Refrigerator Clip
7GROMMET, FAN MOTOR
8W10356558 Whirlpool Refrigerator Divider
9WP67006341 Whirlpool Refrigerator Gasket
10WPW10317991 Whirlpool Refrigerator Motor
11WPW10127427 Whirlpool Refrigerator Control
13W11676504 Whirlpool Insert Assembly
1467006425 Whirlpool Refrigerator Screw
16W11378860 Whirlpool Refrigerator Spacer
17WP63052-2 Whirlpool Refrigerator Impeller
