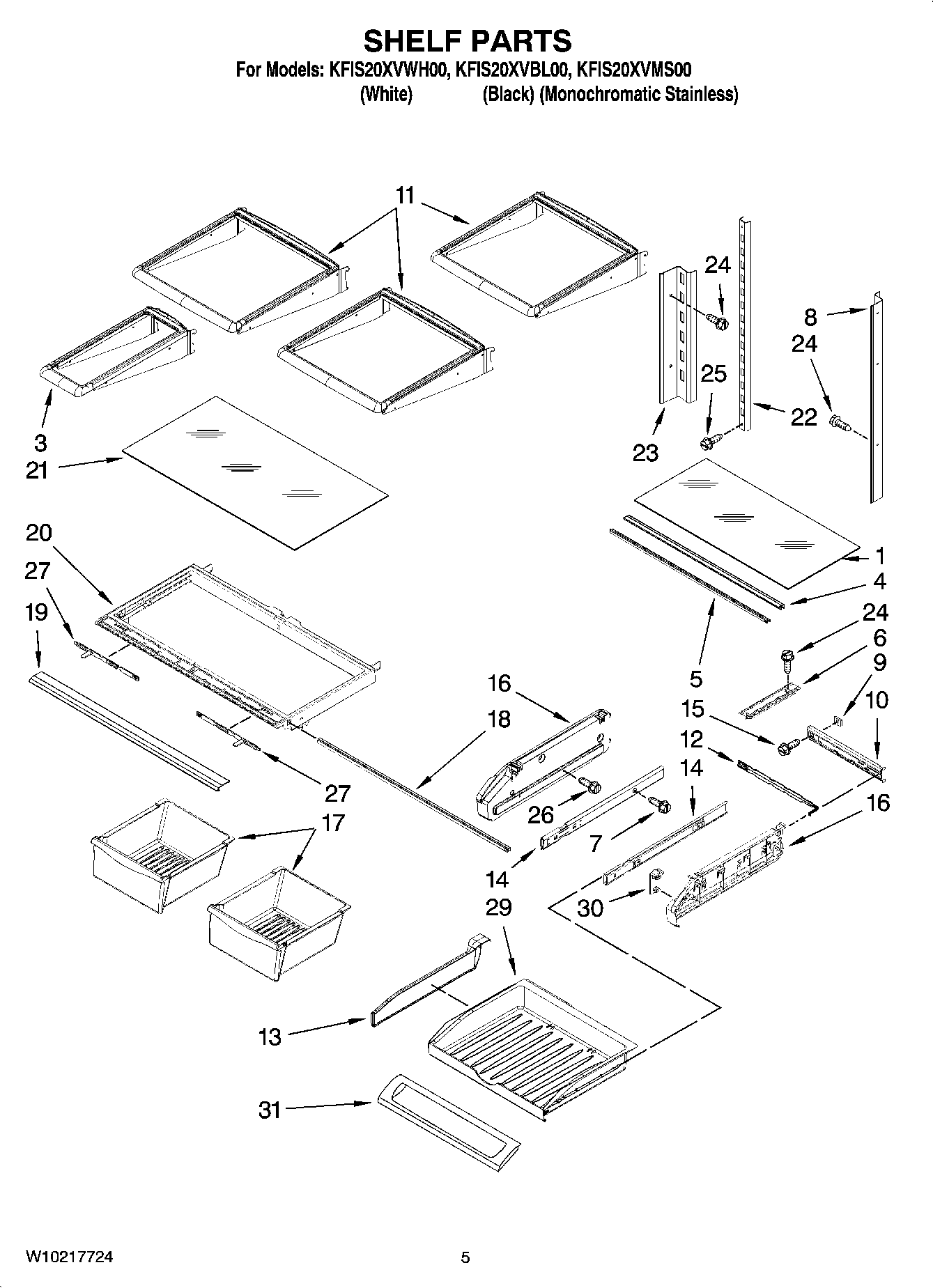

KFIS20XVMS00 03 – SHELF PARTS

Products

Position	Product
1	WP67002332 Whirlpool Refrigerator Glass Pan
3	W10187463 Whirlpool Refrigerator Shelf Assembly
4	WP67006010 Whirlpool Refrigerator Shelf Trim
5	WP12227305WD Whirlpool Drawer Support
6	WP67001719 Whirlpool Refrigerator Track
7	WP98165 Whirlpool Screw
8	LADDER, SIDE (RIGHT HAND)
9	67002329 Whirlpool Refrigerator Pantry Gasket
10	12656202 Whirlpool Refrigerator Housing
11	WP12463912 Whirlpool Refrigerator Glass Shelf
12	WP67003793 Whirlpool Refrigerator Temperature Slide
13	WP67002321 Whirlpool Refrigerator Divider Panel
14	WPW10235370 Whirlpool Refrigerator Glide
16	WP12656105 Whirlpool Drawer Support
16	WP12656018 Whirlpool Drawer Support
17	WPW10143396 Whirlpool Refrigerator Crisper Pan
18	WP12227304WD Whirlpool Refrigerator Drawer Support
19	Trim, Crisper
20	WP67006185 Whirlpool Refrigerator Crisper Frame
21	WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
22	LADDER, CENTER
23	LADDER, SIDE (LEFT HAND)
24	67006425 Whirlpool Refrigerator Screw
25	W10709795 Whirlpool Refrigerator Screw
26	WP67006415 Whirlpool Refrigerator Screw
27	SLIDE
29	W11490183 Whirlpool Refrigerator Utility Pan
30	W11498983 Whirlpool Refrigerator Knob
31	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
