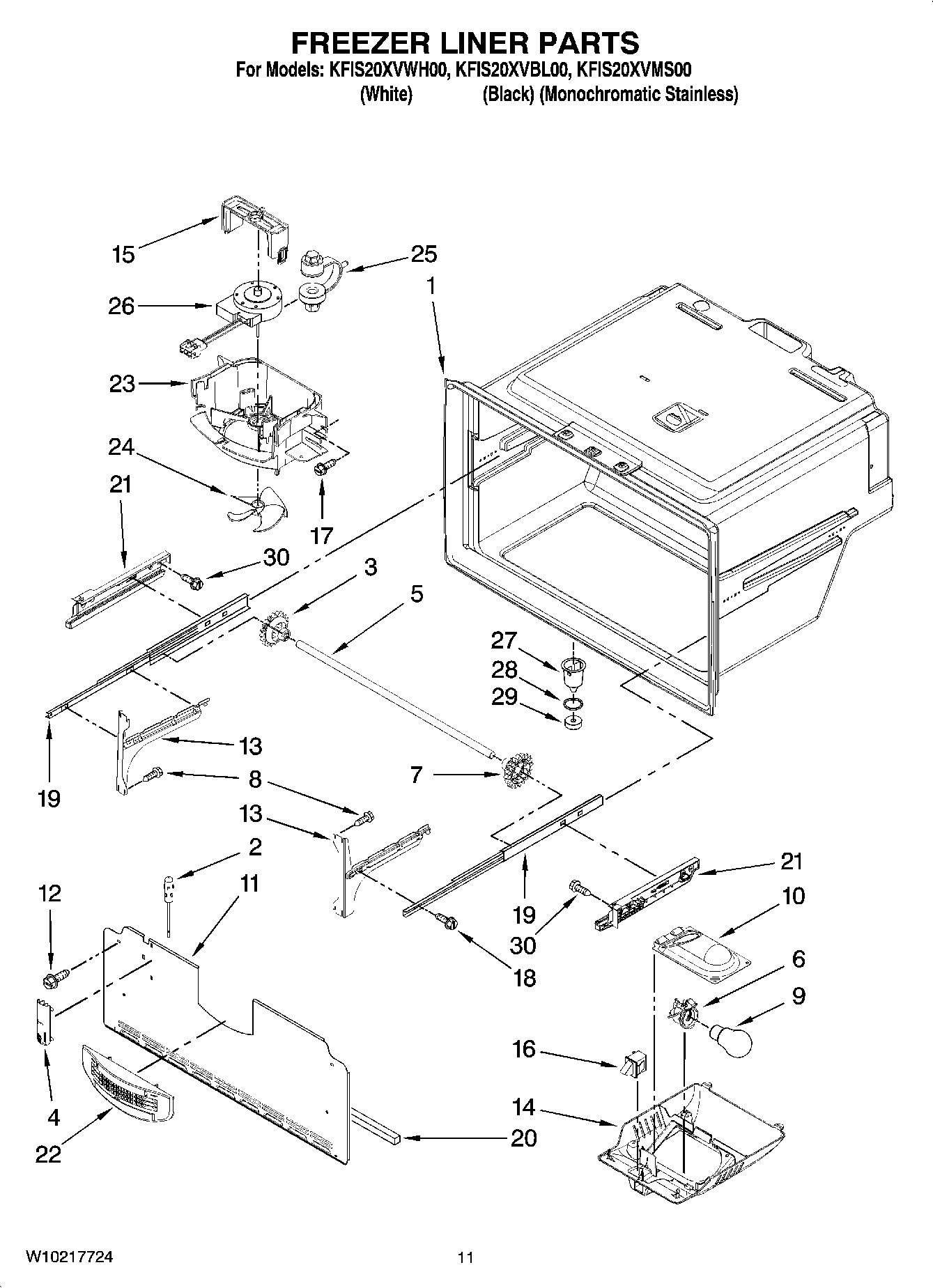

KFIS20XVMS00 06 – FREEZER LINER PARTS

KFIS20XVMS00 06 – FREEZER LINER PARTS

Written by

in

KFIS20XVMS00 06 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
212002355 Whirlpool Refrigerator Thermistor Kit
4WP67003924 Whirlpool Refrigerator Cover
5W11028221 Whirlpool Refrigerator Shaft
6W11447232 Whirlpool Refrigerator Socket
712002497 Whirlpool Refrigerator Drawer Gear Kit
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10Housing, Light
11COVER, EVAPORATOR
1267006425 Whirlpool Refrigerator Screw
13WPW10330994 Whirlpool Refrigerator Bracket
13WPW10330991 Whirlpool Refrigerator Bracket
14MODULE, FREEZER LIGHT
15W11712696 Whirlpool Clip
16W11445850 Whirlpool Door Switch
17WP98165 Whirlpool Screw
18WP3400805 Whirlpool Screw Assembly
19W11658403 Whirlpool Slide
20W11451451 Whirlpool Refrigerator Gasket
21ADAPTER (RIGHT HAND)
21ADAPTER (LEFT HAND)
22W11176847 Whirlpool Refrigerator Grille
23W11700329 Whirlpool Evaporator Shroud
24WP67006337 Whirlpool Refrigerator Fan Blade
25W11676465 Whirlpool Grommet
26W10850438 Whirlpool Refrigerator Evaporator Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
30WP489474 Whirlpool Refrigerator Screw
