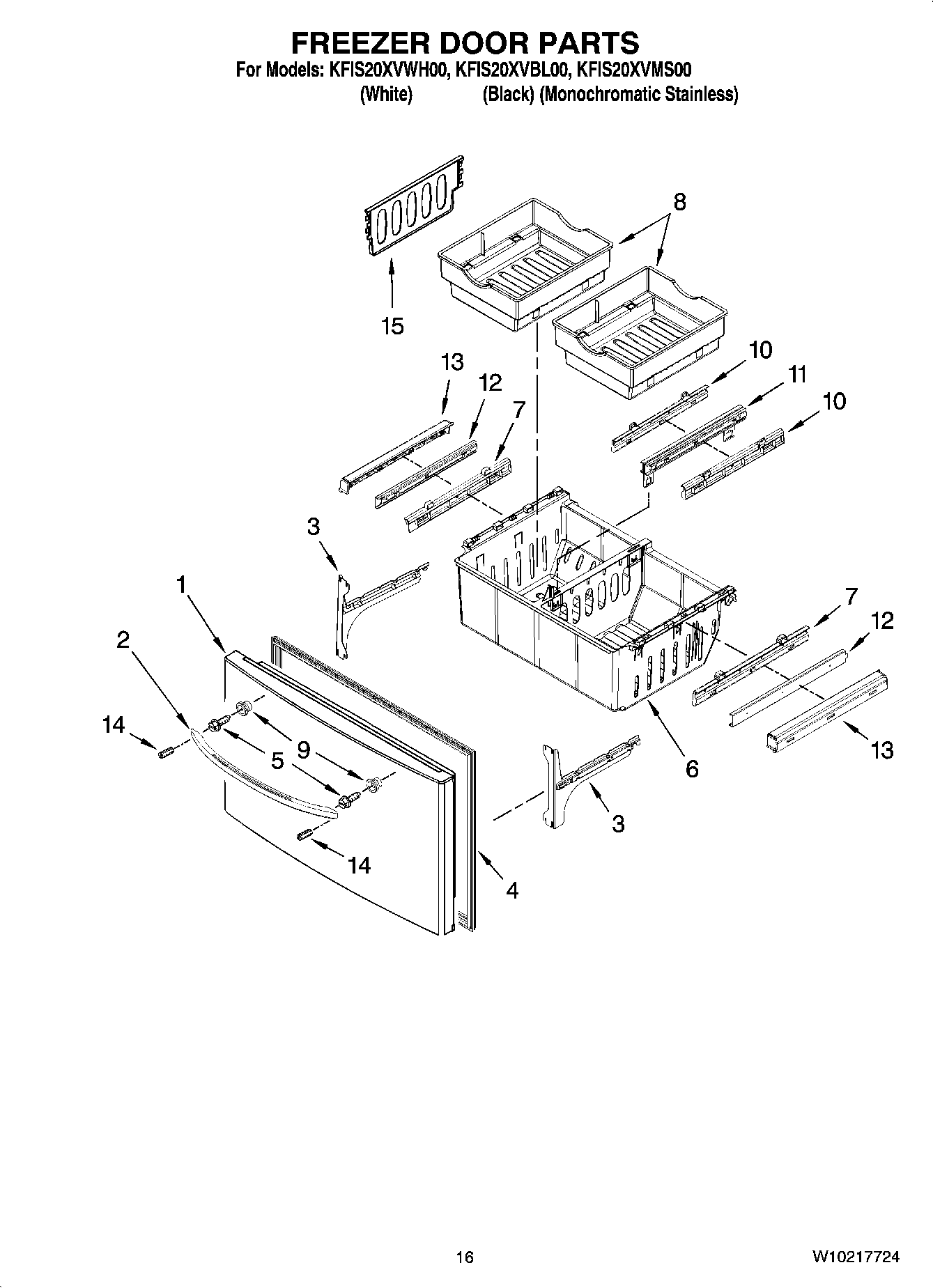

KFIS20XVMS00 09 – FREEZER DOOR PARTS

KFIS20XVMS00 09 – FREEZER DOOR PARTS

Written by

in

KFIS20XVMS00 09 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (White)
1Freezer Door (Stainless)
1Freezer Door (Black)
2Handle, Door (Black)
2WPW10314517K Whirlpool Refrigerator Handle
2WPW10314515 Whirlpool Refrigerator Handle
3WPW10330994 Whirlpool Refrigerator Bracket
3WPW10330991 Whirlpool Refrigerator Bracket
4GASKET-FIP
4WPW10443321 Whirlpool Door Gasket
4WPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
567006901 Whirlpool Refrigerator Screw
6BIN, LOWER
7W10187469 Whirlpool Refrigerator Bracket
8W10184227 Whirlpool Refrigerator Freezer Bin
9WP67006113 Whirlpool Stud Bolt
10W10184223 Whirlpool Refrigerator Bracket
11W10235358 Whirlpool Refrigerator Glide
12WPW10235368 Whirlpool Refrigerator Glide
13W10826791 Whirlpool Refrigerator Retainer
13W10826790 Whirlpool Refrigerator Retainer
14SCREW
15Divider, Upper Bin
