KFIS20XVMS00 10 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
MISCELLANEOUS, CLEANER, STAINLESS STEEL
Torx Key
WP978025 Whirlpool Refrigerator Valve
VALVE, ACCESS (1/2“)
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 876029
WPL ARI154577A
WPL ARI154576A
WPL ARI154575A
WPL ARI154574A
WPL ARI154573A
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI154580A
WPW10324090 Whirlpool Refrigerator Ice Bin
978030 Whirlpool Refrigerator Valve
WP542638 Whirlpool Refrigerator Grease
978027 Whirlpool Refrigerator Primary Valve
350930 Whirlpool White Spray Paint
WPL ARI154579A
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
VALVE, ACCESS (5/8“)
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
978026 Whirlpool Refrigerator Primary Valve
WPL ARI154578A
876764 Whirlpool Refrigerator Primary Valve
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag

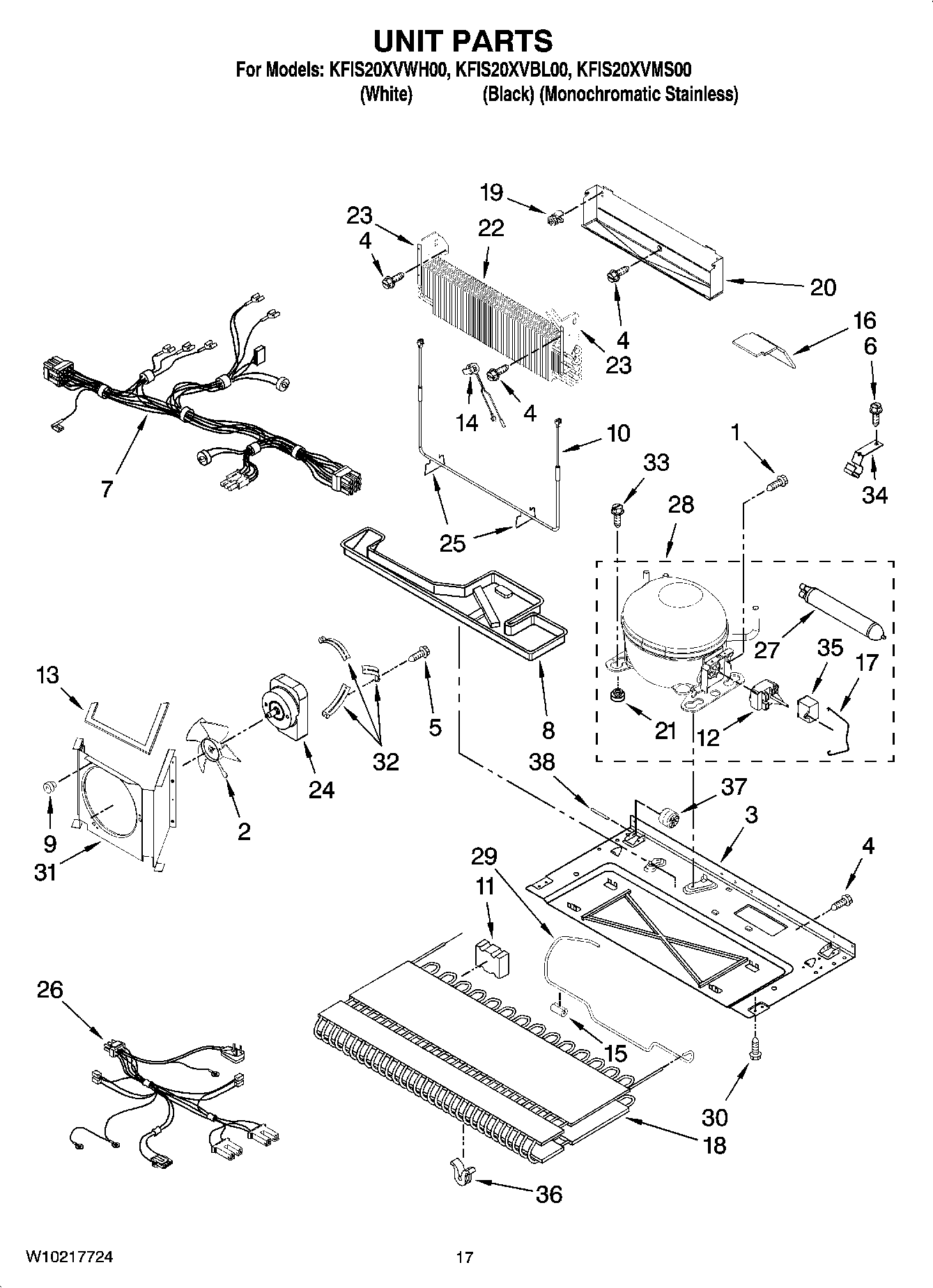

112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5WP67004954 Whirlpool Refrigerator Screw
6WP33001882 Whirlpool Screw
7W10850438 Whirlpool Refrigerator Evaporator Motor
8WP12579803 Whirlpool Refrigerator Drain Pan
9Grommet (3)
10HEATER, DEFROST
11Block, Condenser
12WPW10197428 Whirlpool Start Device
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WP67006387 Whirlpool Refrigerator Thermostat
1567005680 Whirlpool Refrigerator Condenser Grommet
1612820504 Whirlpool Refrigerator Insulation
17Clip, Retaining
18WP67006131 Whirlpool Refrigerator Condenser
19CLIP, EVAP (2)
20W11547653 Whirlpool Refrigerator Drip Tray
21WPW10169124 Whirlpool Refrigerator Grommet
2212002730 Whirlpool Refrigerator Evaporator Kit
23DAM (LEFT HAND)
23DAM (RIGHT HAND)
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Unit Includes Cord
27WPW10143759 Whirlpool Dryer Filter
28W10160407 Whirlpool Refrigerator Compressor
29TUBE, DISCHARGE
30Screw (4)
31Shroud
32WP67004953 Whirlpool Refrigerator Bracket
3312846902 Whirlpool Refrigerator Screw
3410547003 Whirlpool Refrigerator Dryer Clip
35WPW10662129 Whirlpool Refrigerator Run Capacitor
36WPW10137529 Whirlpool Refrigerator Grommet
37WP67005149 Whirlpool Roller
3867006434 Whirlpool Axle Pin
