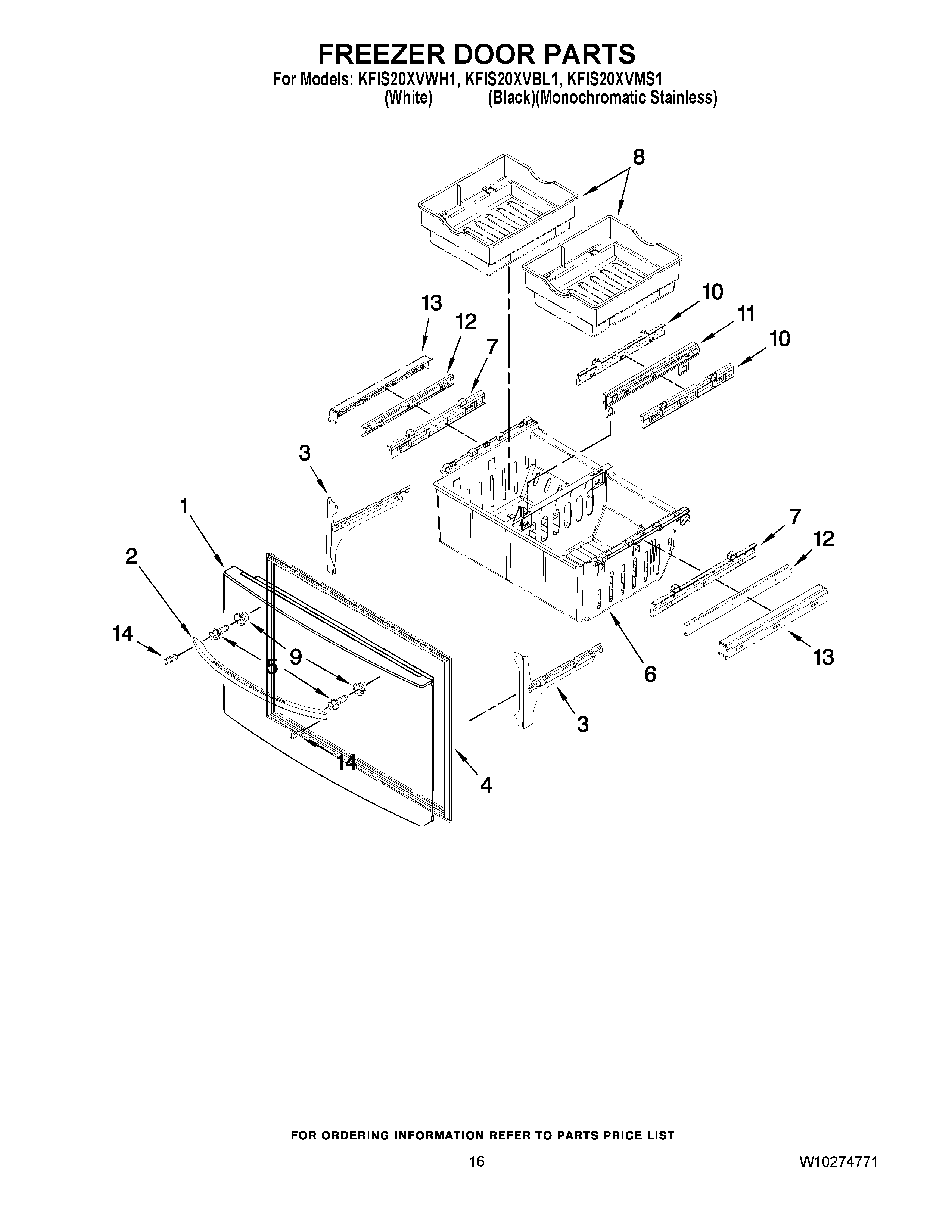

KFIS20XVMS1 09 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (White)
1	Freezer Door (Stainless)
1	Freezer Door (Black)
2	Handle, Door (Black)
2	WPW10314515 Whirlpool Refrigerator Handle
2	WPW10314517K Whirlpool Refrigerator Handle
3	WPW10330994 Whirlpool Refrigerator Bracket
3	WPW10330991 Whirlpool Refrigerator Bracket
4	GASKET-FIP
4	WPW10443321 Whirlpool Door Gasket
4	WPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
5	WP3387230 Whirlpool Screw
6	BIN, LOWER
7	W10187469 Whirlpool Refrigerator Bracket
8	W10184227 Whirlpool Refrigerator Freezer Bin
9	MOUNT, HANDLE
10	W10184223 Whirlpool Refrigerator Bracket
11	W10235358 Whirlpool Refrigerator Glide
12	WPW10235368 Whirlpool Refrigerator Glide
13	W10826791 Whirlpool Refrigerator Retainer
13	W10826790 Whirlpool Refrigerator Retainer
14	SCREW
