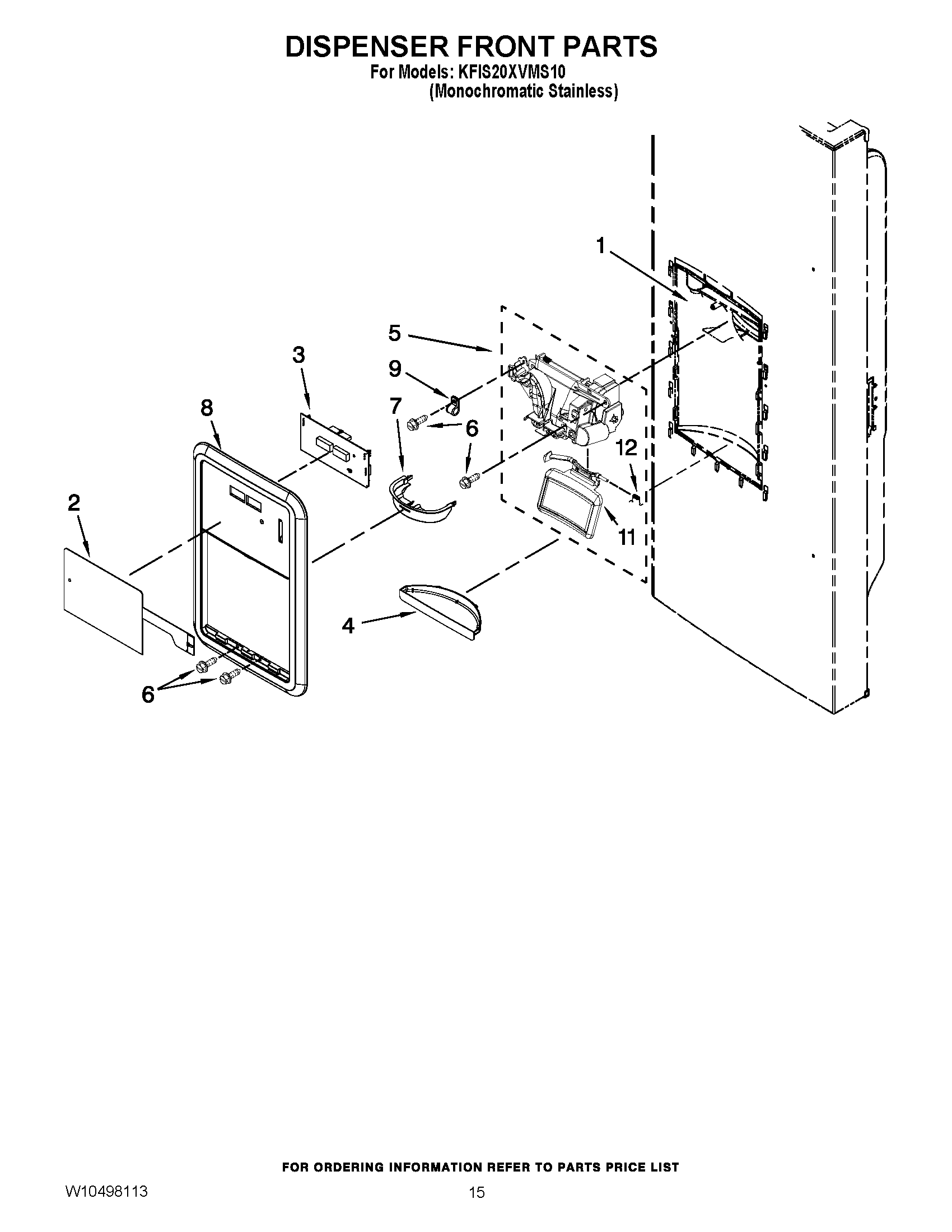

KFIS20XVMS10 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Dispenser Keyboard
3	Board, L.V.
4	SUMP, DISPENSER (STAINLESS)
5	WP13005705 Whirlpool Refrigerator Chute
6	67006425 Whirlpool Refrigerator Screw
7	67006295 Whirlpool Refrigerator Target Ring
8	FACADE, DISPENSER (STAINLESS)
9	M0108106 Whirlpool Refrigerator Clamp
11	WPW10185233 Whirlpool Refrigerator Pad
12	WP12565502 Whirlpool Refrigerator Spring
