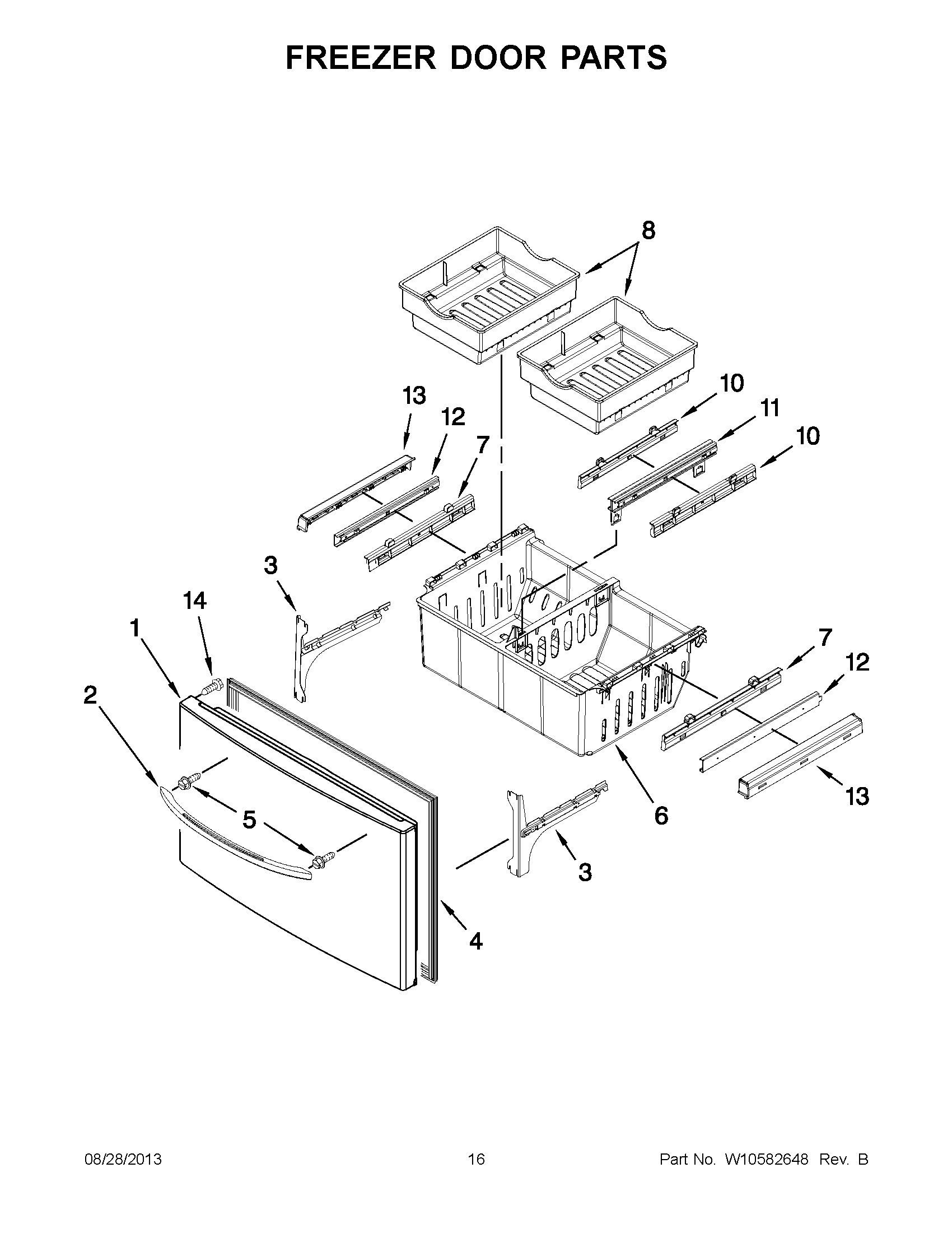

KFIS20XVMS11 09 – FREEZER DOOR PARTS

KFIS20XVMS11 09 – FREEZER DOOR PARTS

Written by

in

KFIS20XVMS11 09 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (STAINLESS)
2WPW10314517K Whirlpool Refrigerator Handle
3WPW10330994 Whirlpool Refrigerator Bracket
3WPW10330995 Whirlpool Refrigerator Bracket
4GASKET-FIP
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6BIN, LOWER
7W10187469 Whirlpool Refrigerator Bracket
8W10184227 Whirlpool Refrigerator Freezer Bin
10W10184223 Whirlpool Refrigerator Bracket
11W10235358 Whirlpool Refrigerator Glide
12WPW10235368 Whirlpool Refrigerator Glide
13W10826790 Whirlpool Refrigerator Retainer
13W10826791 Whirlpool Refrigerator Retainer
14WP98165 Whirlpool Screw
