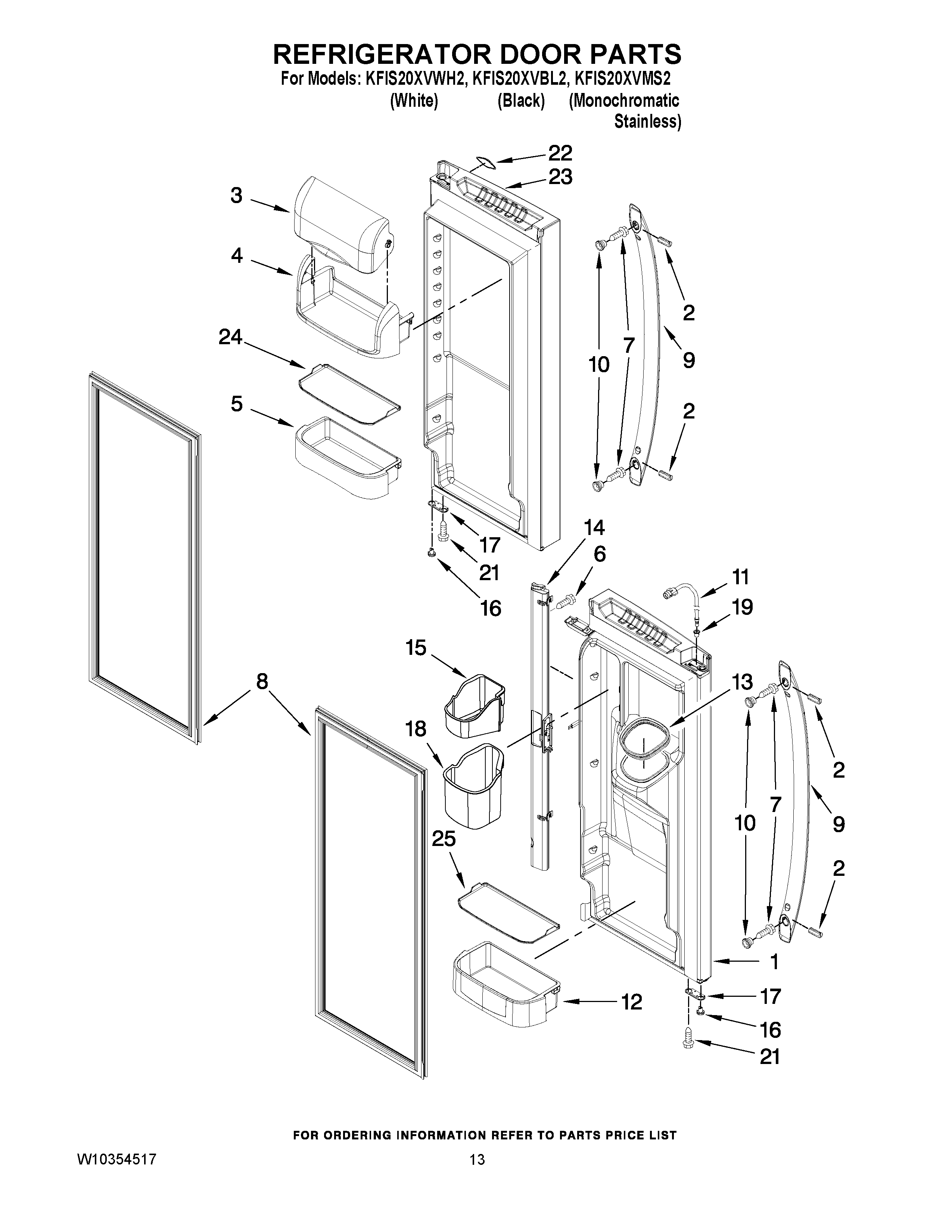

KFIS20XVMS2 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (STAINLESS)
1	DOOR, LEFT (WHITE)
1	DOOR, LEFT (BLACK)
2	WP3400203 Whirlpool Screw
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10119841 Whirlpool Cantilever Bin
6	W11311945 Whirlpool Refrigerator Screw
7	SCREW
8	W11396037 Whirlpool Door Gasket
8	W11378944 Whirlpool Door Gasket
8	GASKET-FIP GRAY
9	WPW10314515 Whirlpool Refrigerator Handle
9	WPW10314517K Whirlpool Refrigerator Handle
9	HANDLE, DOOR (BLACK)
10	WP67006113 Whirlpool Stud Bolt
11	12962106 Whirlpool Refrigerator Waterline Door
12	WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
13	WPW10287601 Whirlpool Seal
14	WPW10151713 Whirlpool Refrigerator Mullion Rail
14	WP12722813W Whirlpool Refrigerator Mullion Rail
14	WP12722813AP Whirlpool Refrigerator Mullion Rail
15	W10187453 Whirlpool Refrigerator Bin
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
16	WP12028505AP Whirlpool Closing Cam
17	W11708403 Whirlpool Door Stop
17	W11703060 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	BUCKET, LOWER
19	12996601 Whirlpool Refrigerator Bushing Clip
21	WP98165 Whirlpool Screw
22	WPW10243391 Whirlpool Refrigerator Nameplate
22	WPW10243392 Whirlpool Dishwasher Nameplate
22	WPW10243393 Whirlpool Dishwasher Nameplate
23	DOOR, RIGHT (WHITE)
23	DOOR, RIGHT (BLACK)
23	DOOR, RIGHT (STAINLESS)
24	W11510593 Whirlpool Refrigerator Mat
25	W11510594 Whirlpool Refrigerator Mat
