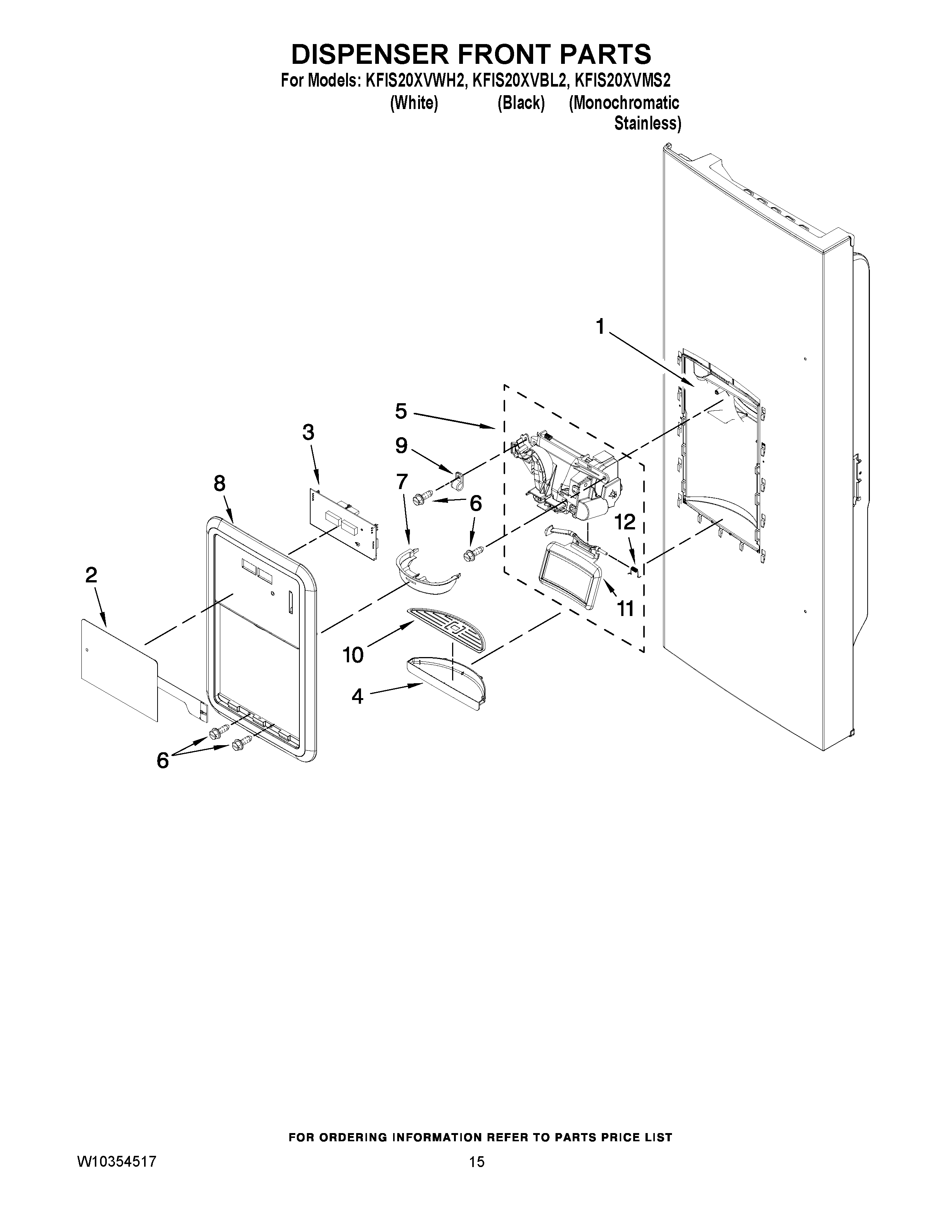

KFIS20XVMS2 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Dispenser Keyboard
3	Board, L.V.
4	Sump, Dispenser (Stainless)
4	Sump, Dispenser (White)
4	Sump, Dispenser (Black)
5	WP13005705 Whirlpool Refrigerator Chute
5	WP13005703W Whirlpool Refrigerator Chute
5	WP13005703B Whirlpool Refrigerator Chute
6	67006425 Whirlpool Refrigerator Screw
7	67006295 Whirlpool Refrigerator Target Ring
8	FACADE, DISPENSER (APOLLO GREY)
8	Facade, Dispenser (White)
8	Facade, Dispenser (Black)
9	M0108106 Whirlpool Refrigerator Clamp
10	Grille, Sump
11	W10170832 Whirlpool Refrigerator Pad
11	WPW10185233 Whirlpool Refrigerator Pad
11	W10170831 Whirlpool Refrigerator Pad
12	WP12565502 Whirlpool Refrigerator Spring
