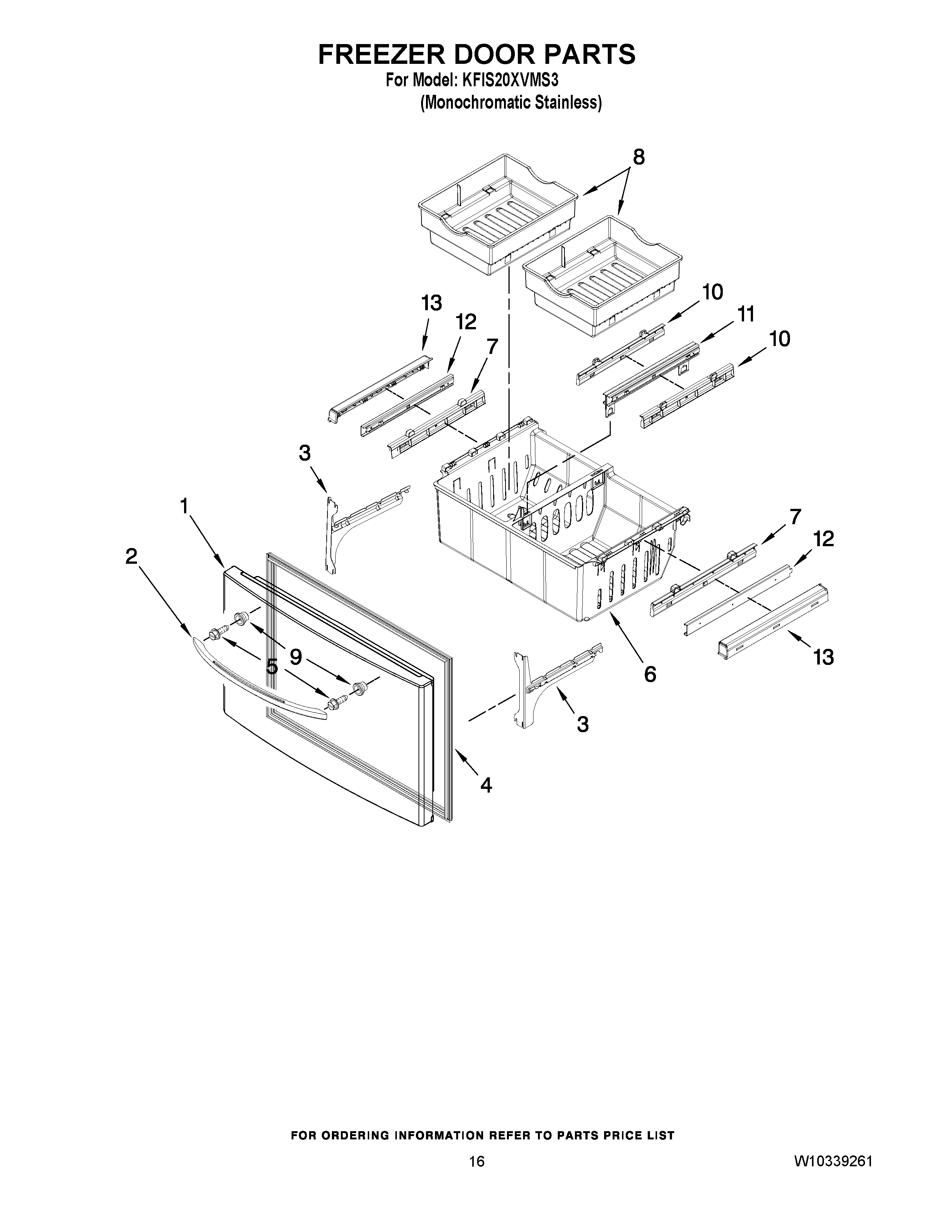

KFIS20XVMS3 09 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (STAINLESS)
2	WPW10314517K Whirlpool Refrigerator Handle
3	WPW10330994 Whirlpool Refrigerator Bracket
3	WPW10330991 Whirlpool Refrigerator Bracket
4	GASKET-FIP
5	SCREW
6	BIN, LOWER
7	W10187469 Whirlpool Refrigerator Bracket
8	W10184227 Whirlpool Refrigerator Freezer Bin
9	WP67006113 Whirlpool Stud Bolt
10	W10184223 Whirlpool Refrigerator Bracket
11	W10235358 Whirlpool Refrigerator Glide
12	WPW10235368 Whirlpool Refrigerator Glide
13	W10826790 Whirlpool Refrigerator Retainer
13	W10826791 Whirlpool Refrigerator Retainer
