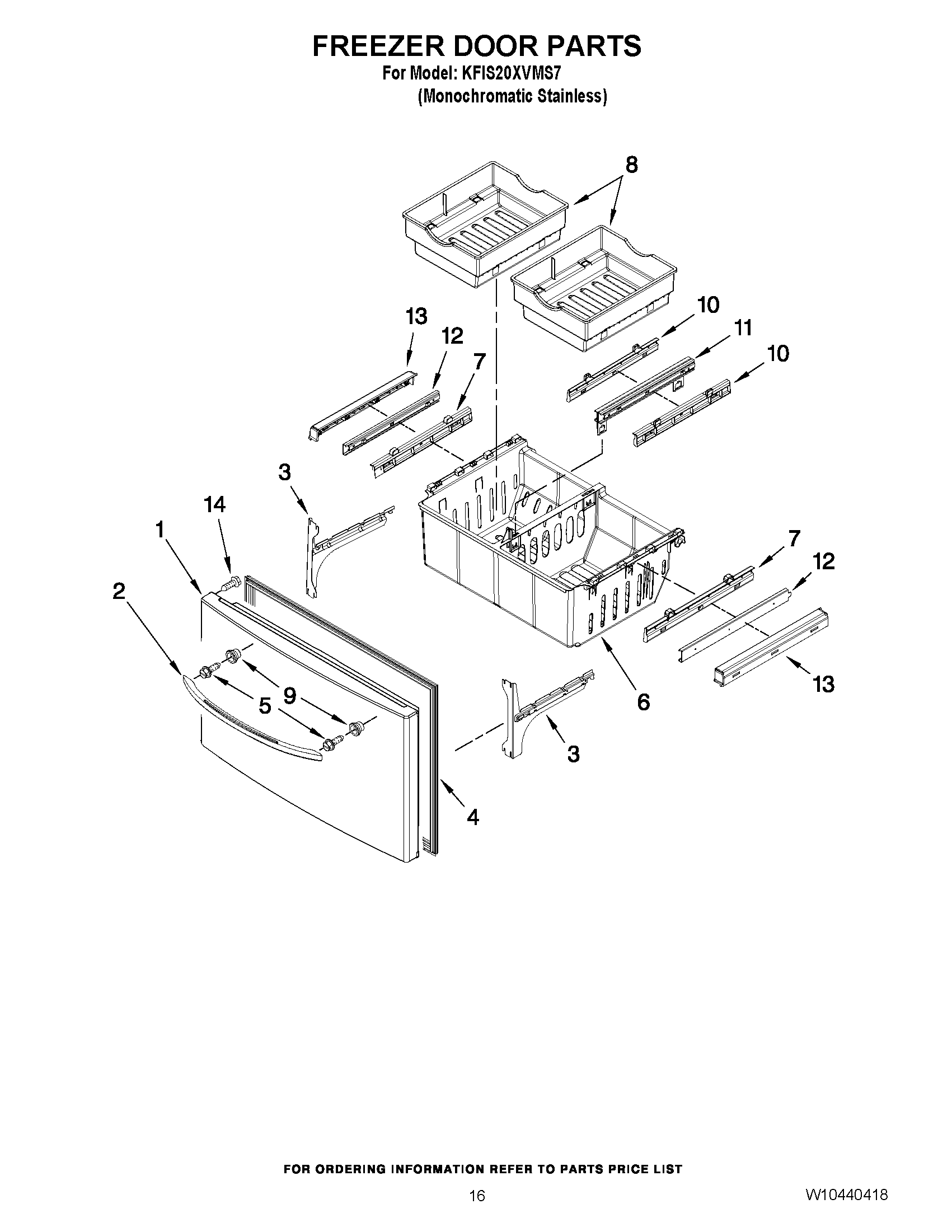

KFIS20XVMS7 09 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (STAINLESS)
2	WPW10314517K Whirlpool Refrigerator Handle
3	WPW10330994 Whirlpool Refrigerator Bracket
3	WPW10330991 Whirlpool Refrigerator Bracket
4	GASKET-FIP
5	SCREW
6	BIN, LOWER
7	W10187469 Whirlpool Refrigerator Bracket
8	W10184227 Whirlpool Refrigerator Freezer Bin
9	WP67006113 Whirlpool Stud Bolt
10	W10184223 Whirlpool Refrigerator Bracket
11	W10235358 Whirlpool Refrigerator Glide
12	WPW10235368 Whirlpool Refrigerator Glide
13	W10826790 Whirlpool Refrigerator Retainer
13	W10826791 Whirlpool Refrigerator Retainer
14	WP98165 Whirlpool Screw
