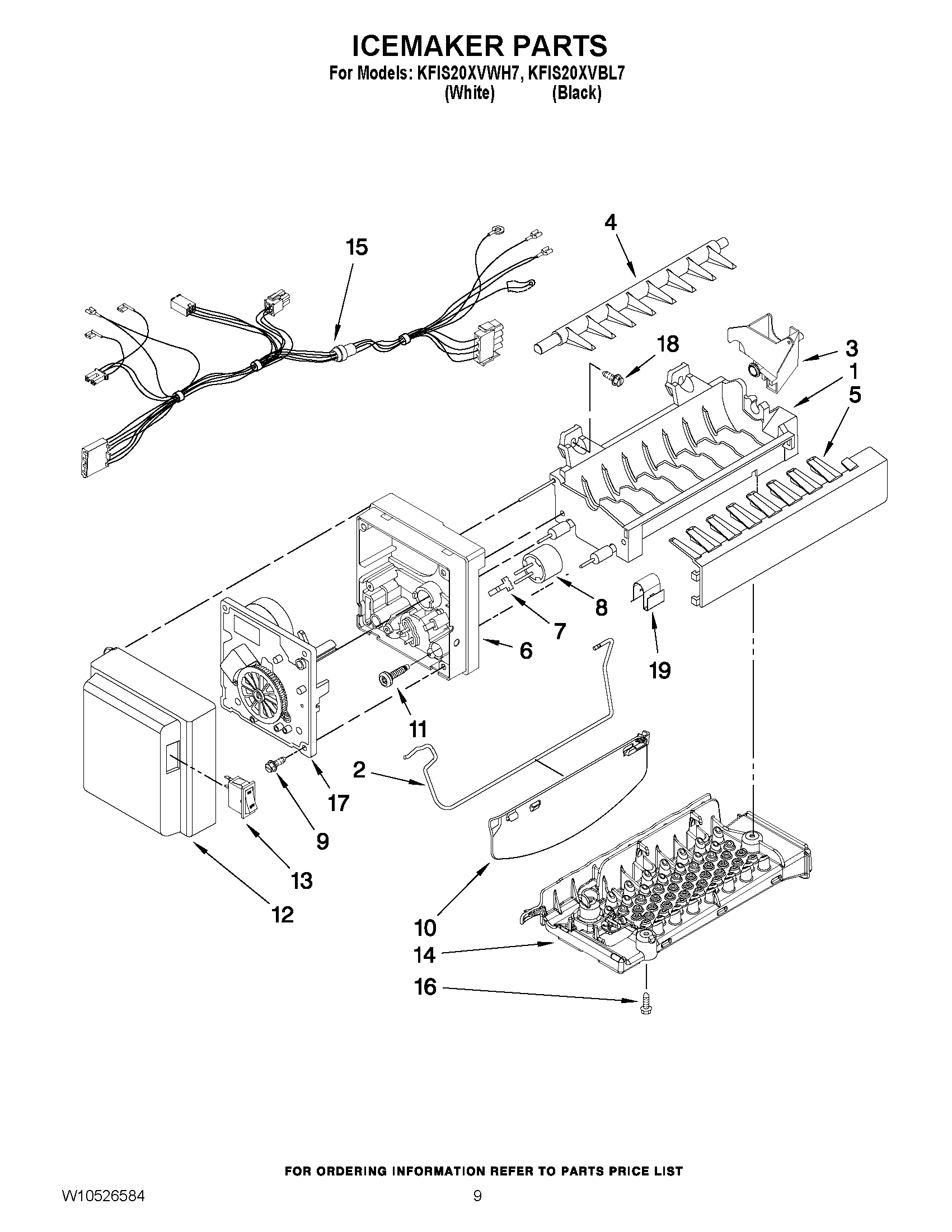

KFIS20XVWH7 05 – ICEMAKER PARTSadmin2025-04-26T12:35:03+00:00KFIS20XVWH7 05 – ICEMAKER PARTS ProductsPositionProduct1WPW10300025 Whirlpool Refrigerator Ice Mold2WPW10175514 Whirlpool Refrigerator Shut-Off Arm3W10327050 Whirlpool Refrigerator Cup Fill4W10318914 Whirlpool Refrigerator Ejector Arm5WPW10122563 Whirlpool Refrigerator Stripper Arm6WP2195914 Whirlpool Refrigerator Ice Maker Housing7WP2315522 Whirlpool Refrigerator Clip8WP627985 Whirlpool Icemaker Cycling Thermostat10WPW10351019 Whirlpool Refrigerator Extension11W10001280 Whirlpool Refrigerator Screw12WPW10121444 Whirlpool Refrigerator Front Cover13WP2313326 Whirlpool Refrigerator Switch14WPW10312691 Whirlpool Refrigerator Air Baffle15W10312698 Whirlpool Refrigerator Wire Harness1667006425 Whirlpool Refrigerator Screw178201515 Whirlpool Refrigerator Motor and Gear Module Kit18W10001240 Whirlpool Refrigerator Screw19WP628379 Whirlpool Refrigerator Clip100WPW10300024 Whirlpool Ice Maker
