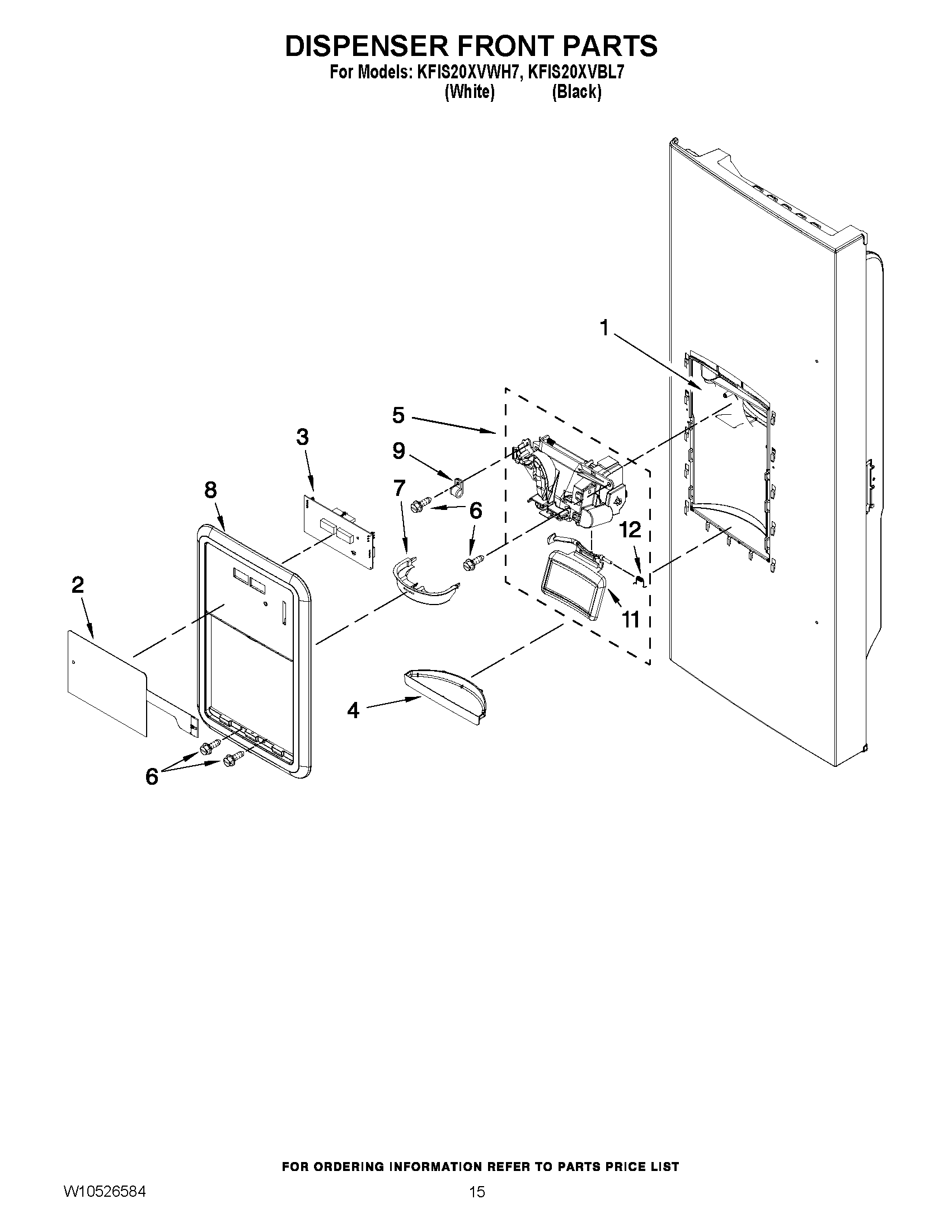

KFIS20XVWH7 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Dispenser Keyboard
3Board, L.V.
4SUMP, DISPENSER (BLACK)
4SUMP, DISPENSER (WHITE)
5WP13005703B Whirlpool Refrigerator Chute
5WP13005703W Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8Facade, Dispenser (Black)
8Facade, Dispenser (White)
9M0108106 Whirlpool Refrigerator Clamp
11W10170831 Whirlpool Refrigerator Pad
11W10170832 Whirlpool Refrigerator Pad
12WP12565502 Whirlpool Refrigerator Spring
