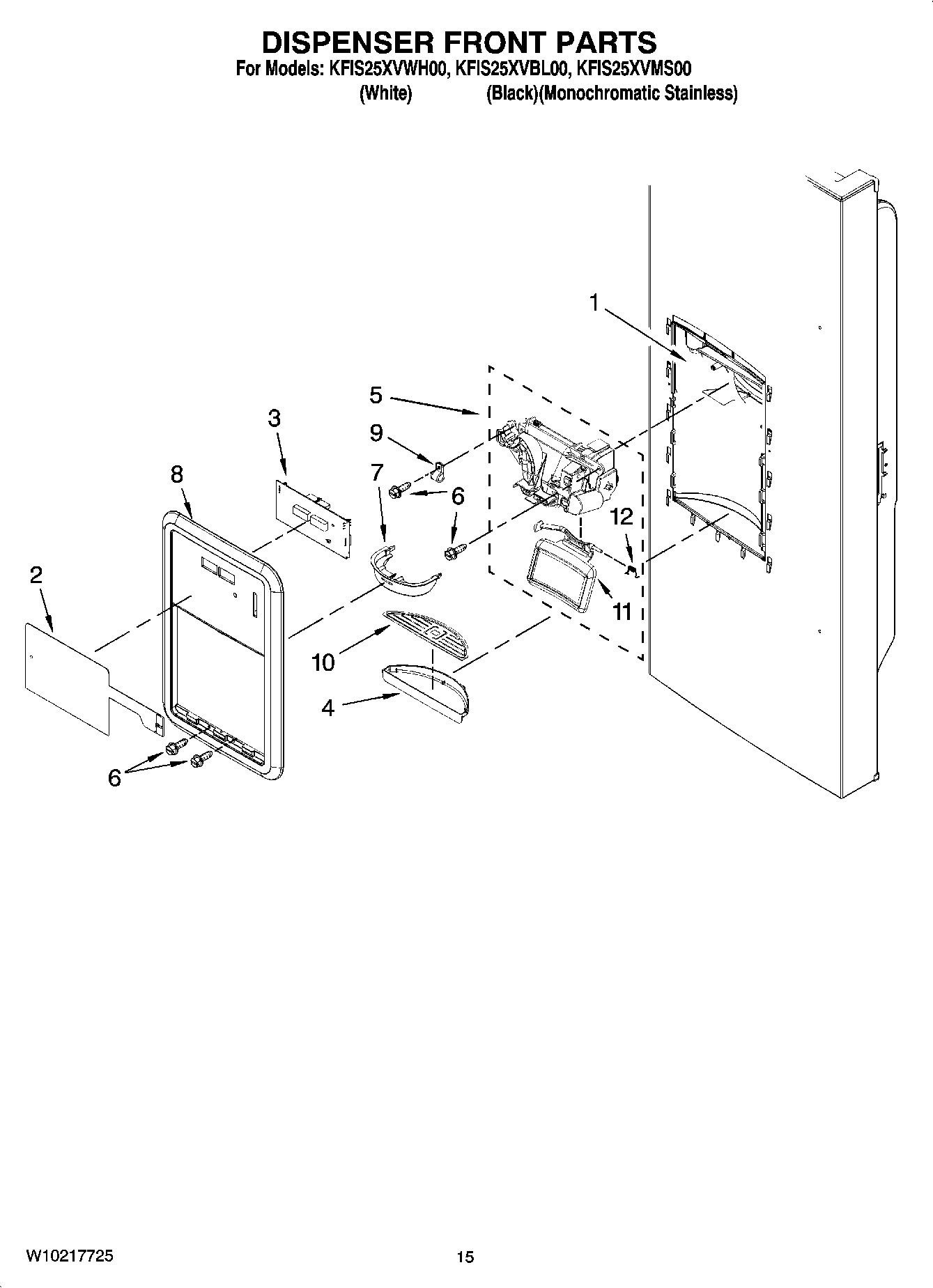

KFIS25XVBL00 08 – DISPENSER FRONT PARTS

KFIS25XVBL00 08 – DISPENSER FRONT PARTS

Written by

in

KFIS25XVBL00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2Dispenser Keyboard
3Board, L.V.
4Sump, Dispenser (Stainless)
4Sump, Dispenser (White)
4Sump, Dispenser (Black)
5WP13005705 Whirlpool Refrigerator Chute
5WP13005703B Whirlpool Refrigerator Chute
5WP13005703W Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8WPW10310688 Whirlpool Refrigerator Cover
8Facade, Dispenser (White)
8Facade, Dispenser (Black)
9M0108106 Whirlpool Refrigerator Clamp
10Grille, Sump
11W10170831 Whirlpool Refrigerator Pad
11W10170832 Whirlpool Refrigerator Pad
11WPW10185233 Whirlpool Refrigerator Pad
12WP12565502 Whirlpool Refrigerator Spring
