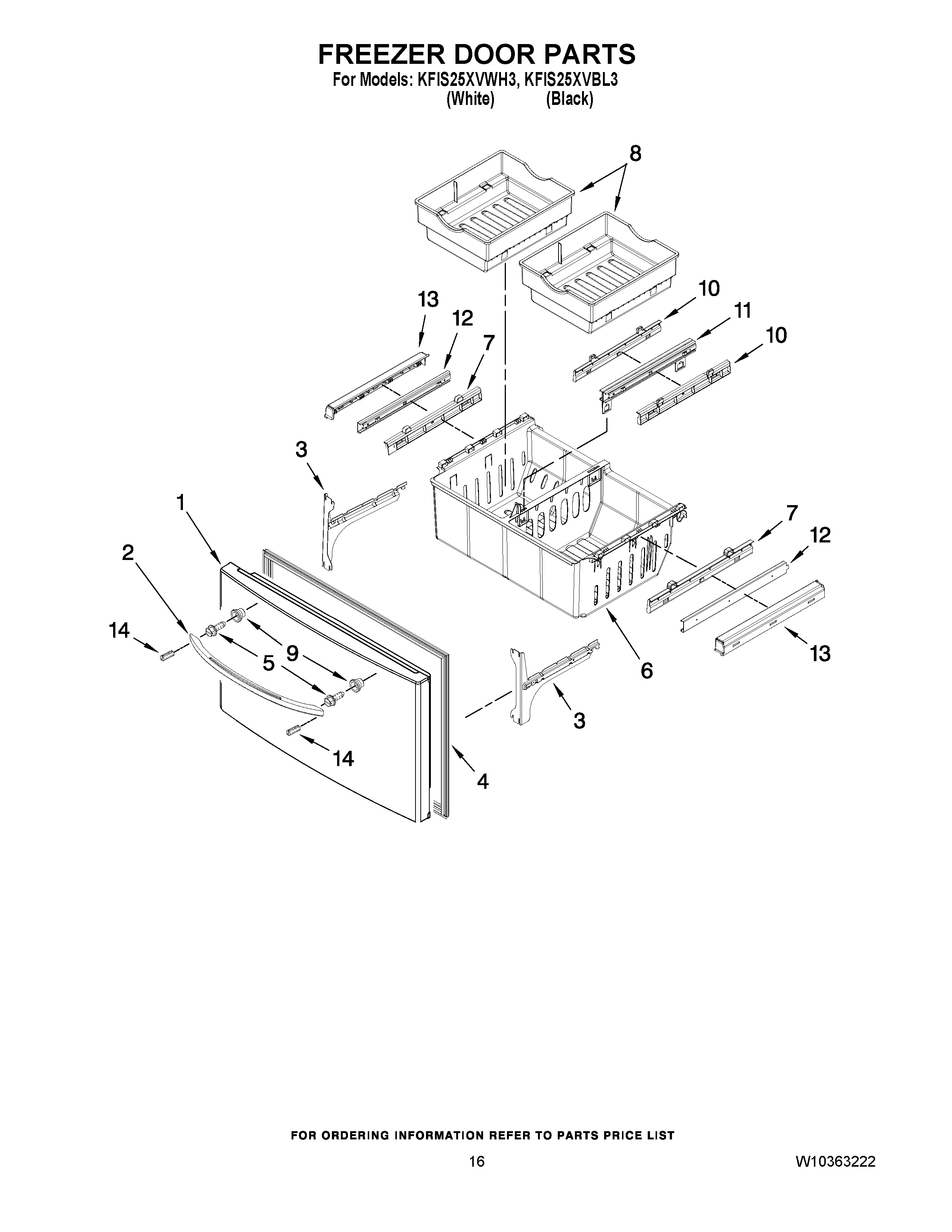

KFIS25XVBL3 09 – FREEZER DOOR PARTS

KFIS25XVBL3 09 – FREEZER DOOR PARTS

Written by

in

KFIS25XVBL3 09 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (WHITE)
1FREEZER DOOR (BLACK)
2HANDLE, DOOR (BLACK)
2WPW10314515 Whirlpool Refrigerator Handle
3WPW10330991 Whirlpool Refrigerator Bracket
3WPW10330993 Whirlpool Refrigerator Bracket
4WPW10443321 Whirlpool Door Gasket
4WPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
5SCREW
6WP67006366 Whirlpool Refrigerator Lower Bin
7W10166742 Whirlpool Refrigerator Bracket
8WP12924903 Whirlpool Refrigerator Freezer Bin
9WP67006113 Whirlpool Stud Bolt
1012925404SP Whirlpool Refrigerator Bracket
11WPW10235357 Whirlpool Refrigerator Glide Assembly
12WPW10235367 Whirlpool Refrigerator Glide
13W10826788 Whirlpool Refrigerator Retainer
13WP67006368 Whirlpool Refrigerator Retainer
14WP3400203 Whirlpool Screw
