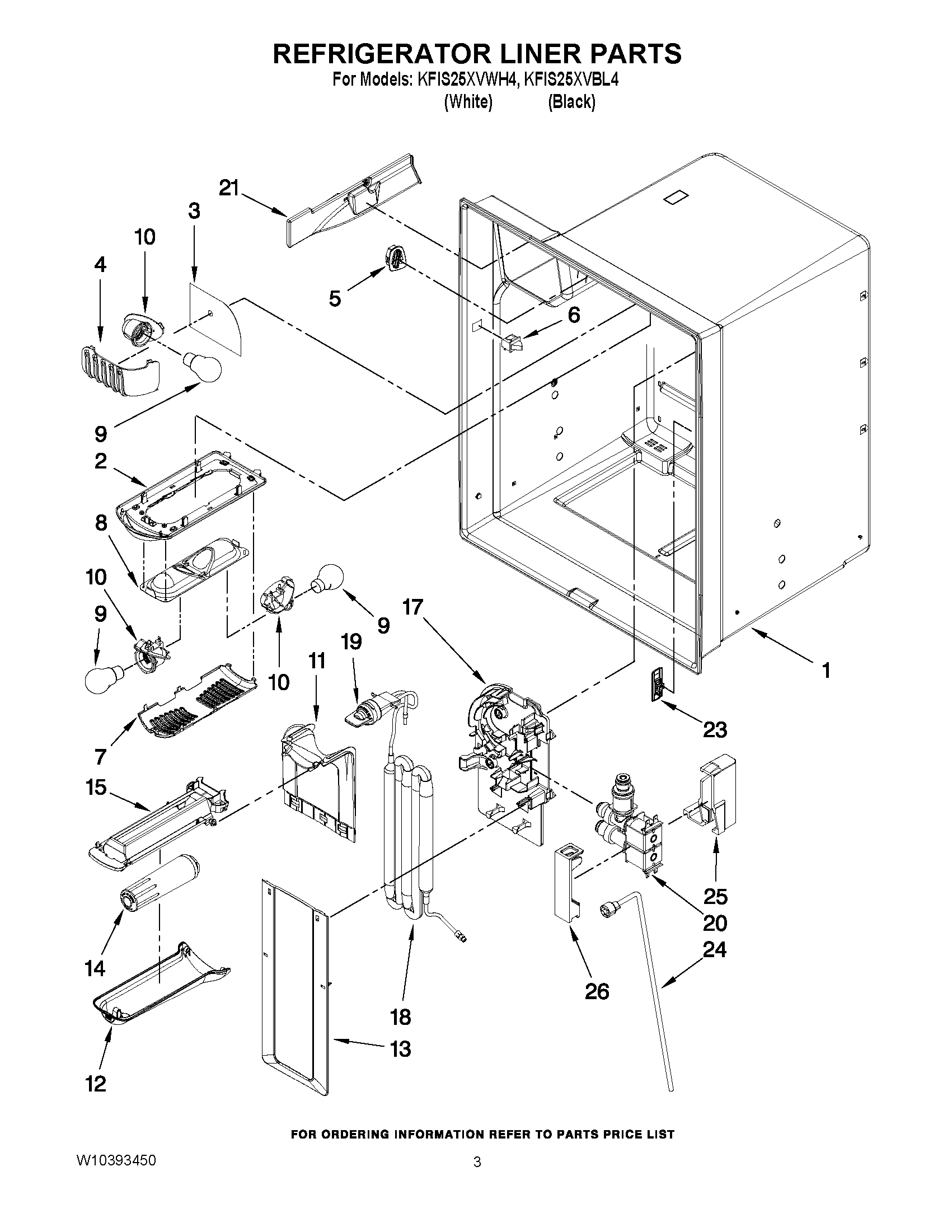

KFIS25XVBL4 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	FOIL, LIGHT
4	12921801 Whirlpool Refrigerator Light Cover
5	W10555984 Whirlpool Refrigerator Grille
6	W11396033 Whirlpool Refrigerator Rocker Switch
7	COVER, LIGHT
8	12806601 Whirlpool Refrigerator Light Housing
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	12960101 Whirlpool Refrigerator Cover
12	WP67006331 Whirlpool Refrigerator Water Filter Cover
13	67006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
15	67006325 Whirlpool Filter Base Bracket
17	67006324 Whirlpool Refrigerator Bracket
18	W10502642 Whirlpool Refrigerator Reservoir
19	W11395888 Whirlpool Refrigerator Bypass Filter Cap
20	WPW10312696 Whirlpool Water Inlet Valve
21	WPW10309869 Whirlpool Refrigerator Cover
23	12987301 Whirlpool Refrigerator Cover
24	WATERLINE, CABINET
25	W10118193 Whirlpool Refrigerator Cover
26	W10118194 Whirlpool Refrigerator Cover
