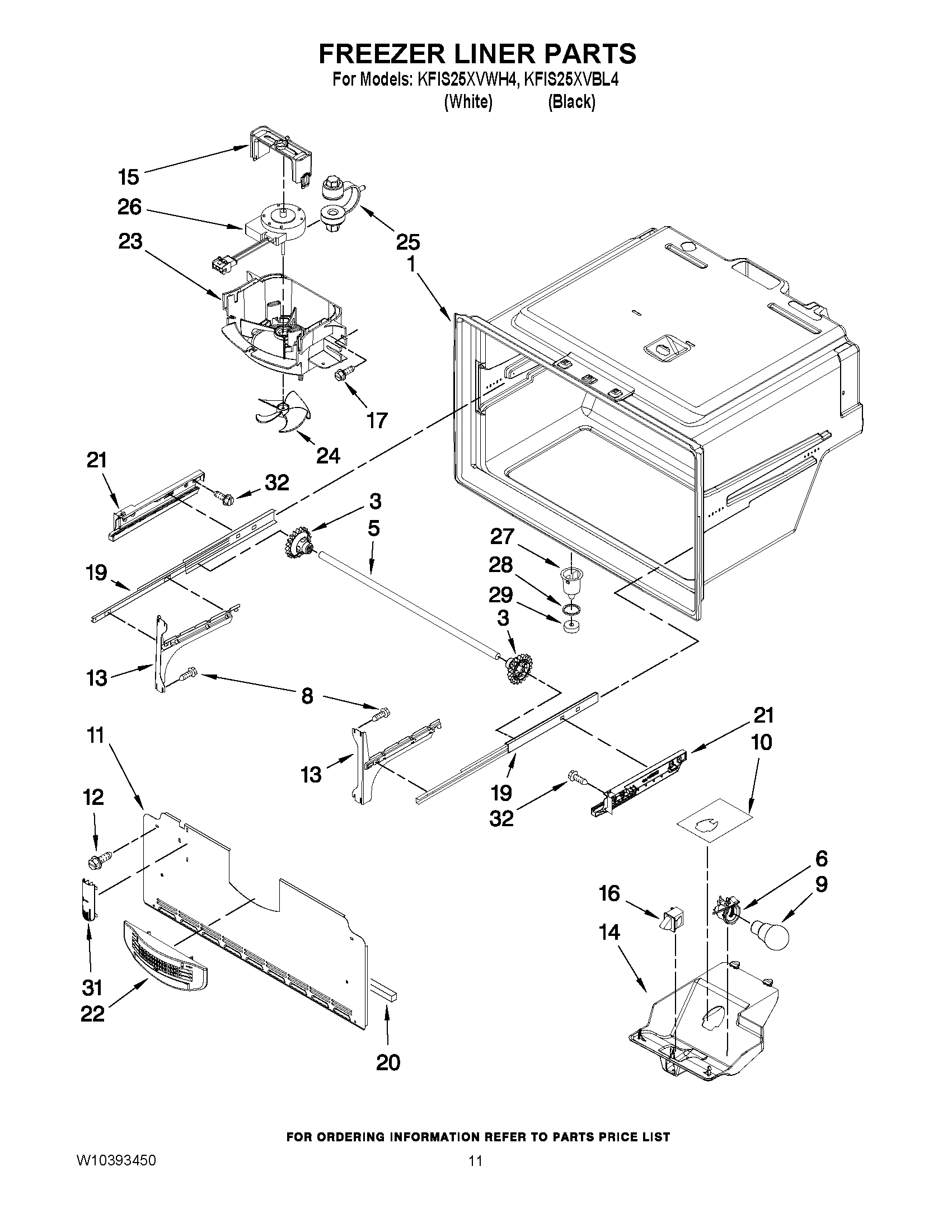

KFIS25XVBL4 06 – FREEZER LINER PARTS

KFIS25XVBL4 06 – FREEZER LINER PARTS

Written by

in

KFIS25XVBL4 06 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
312002497 Whirlpool Refrigerator Drawer Gear Kit
5W11028221 Whirlpool Refrigerator Shaft
6W11447232 Whirlpool Refrigerator Socket
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11469652 Whirlpool Refrigerator Shield
11W10308421 Whirlpool Refrigerator Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13WPW10330993 Whirlpool Refrigerator Bracket
13WPW10330991 Whirlpool Refrigerator Bracket
14W11434460 Whirlpool Refrigerator Housing
15W11712696 Whirlpool Clip
16W11445850 Whirlpool Door Switch
17WP98165 Whirlpool Screw
19W11658402 Whirlpool Drawer Slide Rail
20W11451451 Whirlpool Refrigerator Gasket
21WPW10284682 Whirlpool Refrigerator Bracket
21WPW10284683 Whirlpool Refrigerator Bracket
22W11176847 Whirlpool Refrigerator Grille
23W11700329 Whirlpool Evaporator Shroud
24WP67006337 Whirlpool Refrigerator Fan Blade
25W11676465 Whirlpool Grommet
26W10850438 Whirlpool Refrigerator Evaporator Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
31WP67003924 Whirlpool Refrigerator Cover
32WP489474 Whirlpool Refrigerator Screw
