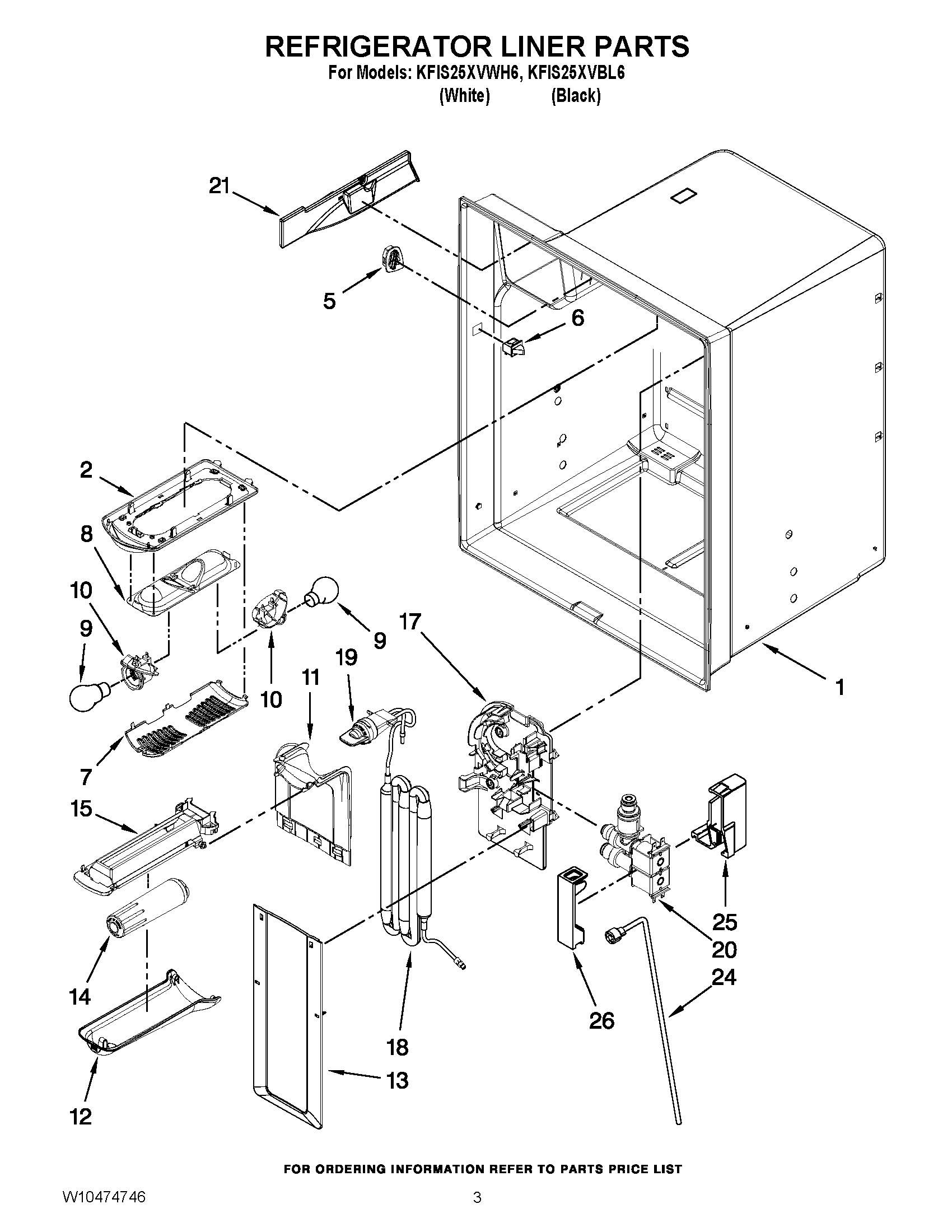

KFIS25XVBL6 02 – REFRIGERATOR LINER PARTS

KFIS25XVBL6 02 – REFRIGERATOR LINER PARTS

Written by

in

KFIS25XVBL6 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2MODULE, LIGHT
5W10555984 Whirlpool Refrigerator Grille
6W11396033 Whirlpool Refrigerator Rocker Switch
7COVER, LIGHT
8W10443023 Whirlpool Refrigerator Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1112960101 Whirlpool Refrigerator Cover
12WP67006331 Whirlpool Refrigerator Water Filter Cover
1367006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
1567006325 Whirlpool Filter Base Bracket
18W10502642 Whirlpool Refrigerator Reservoir
19W11395888 Whirlpool Refrigerator Bypass Filter Cap
20WPW10312696 Whirlpool Water Inlet Valve
21WPW10309869 Whirlpool Refrigerator Cover
24WPW10444033 Whirlpool Refrigerator Water Tube
25W10118193 Whirlpool Refrigerator Cover
26W10118194 Whirlpool Refrigerator Cover
