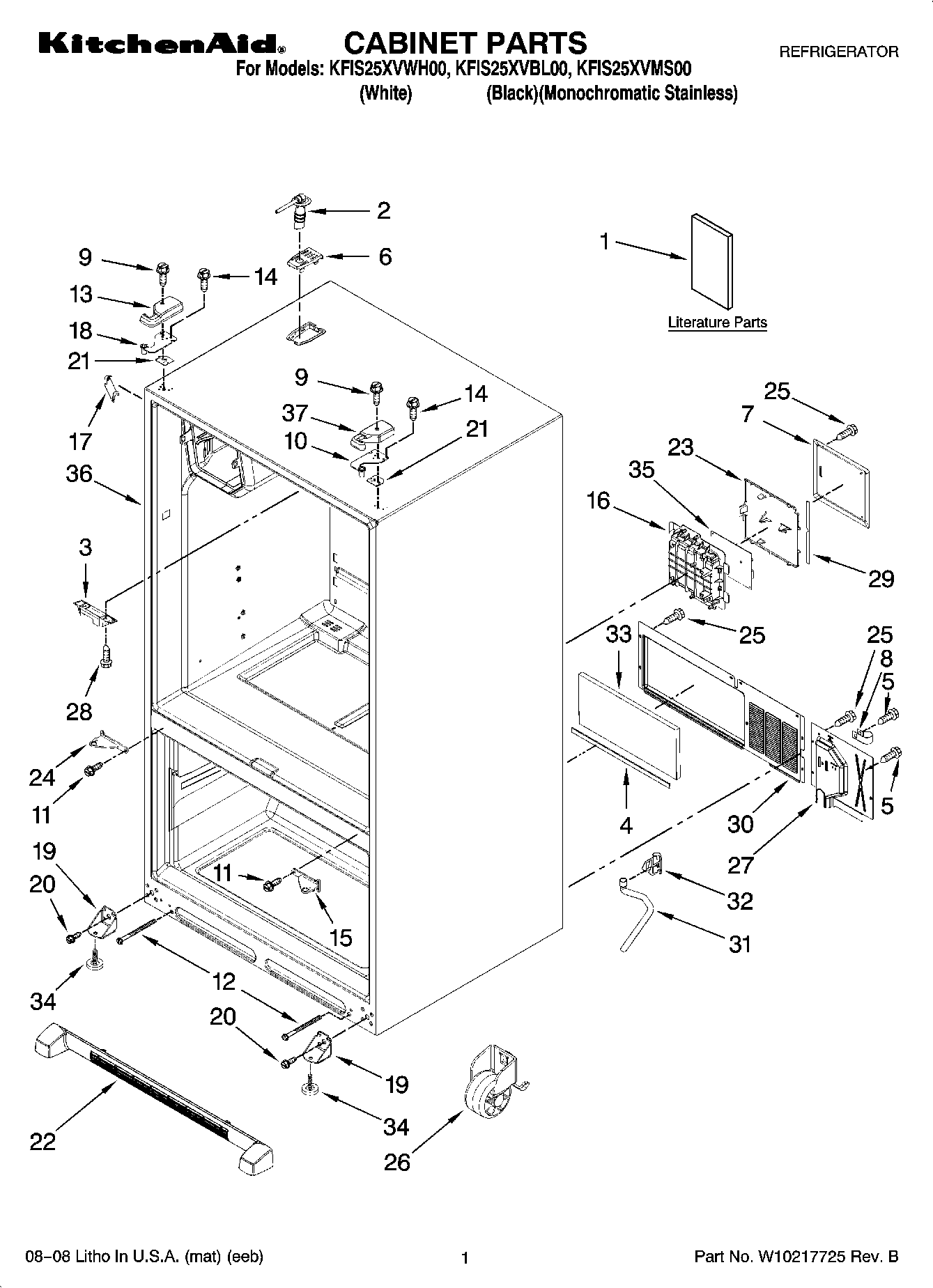

KFIS25XVMS00 01 – CABINET PARTS

KFIS25XVMS00 01 – CABINET PARTS

Written by

in

KFIS25XVMS00 01 – CABINET PARTS

Products

Position	Product
1	Tech Sheet
1	Tag, Energy
1	Use & Care Guide
2	TUBE-WATER
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	67006425 Whirlpool Refrigerator Screw
6	12981401W Whirlpool Refrigerator Cover Filter
6	12981401B Whirlpool Refrigerator Filtration Cover
6	W10191141 Whirlpool Refrigerator Tube Cover
7	COVER, CONTROL BOX
8	W10833902 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	W11592374 Whirlpool Refrigerator Top Door Hinge
11	WP67006380 Whirlpool Screw
12	71003131 Whirlpool Oven Screw
13	W10337647 Whirlpool Refrigerator Cover
13	WPW10337648 Whirlpool Refrigerator Cover
13	WPW10337634 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	HINGE, CENTER RIGHT HAND (WHITE)
15	W10918164 Whirlpool Refrigerator Door Hinge
16	WP67006390 Whirlpool Refrigerator High Voltage Box
17	WP12587703AP Whirlpool Refrigerator Filler
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	W11592375 Whirlpool Door Hinge
19	Bracket, Foot (2)
20	67006564 Whirlpool Refrigerator Screw
21	12999501 Whirlpool Refrigerator Hinge Shim
21	12999502 Whirlpool Refrigerator Hinge Shim
22	WPW10534154 Whirlpool Refrigerator Front Grille
22	WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22	WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23	67006428 Whirlpool Refrigerator LID, HV Control
24	W10917988 Whirlpool Refrigerator Door Hinge
24	67006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
24	W10918113 Whirlpool Refrigerator Door Hinge
25	W11686675 Whirlpool Screw
26	Roller Assy.(Rear)
27	Cover, Water Valve
28	SCREW
29	Gasket, HV Control
30	Cover, Unit
31	W10164397 Whirlpool Refrigerator Drain Tube
32	Clip, Drain Tube
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	W11177593 Whirlpool Leveling Feet
35	WPW10310240 Whirlpool Main Control Board + Core
36	WPL ARI87201A7
37	WPW10191117 Whirlpool Refrigerator Cover
37	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
37	WP67005956 Whirlpool Refrigerator Cover
