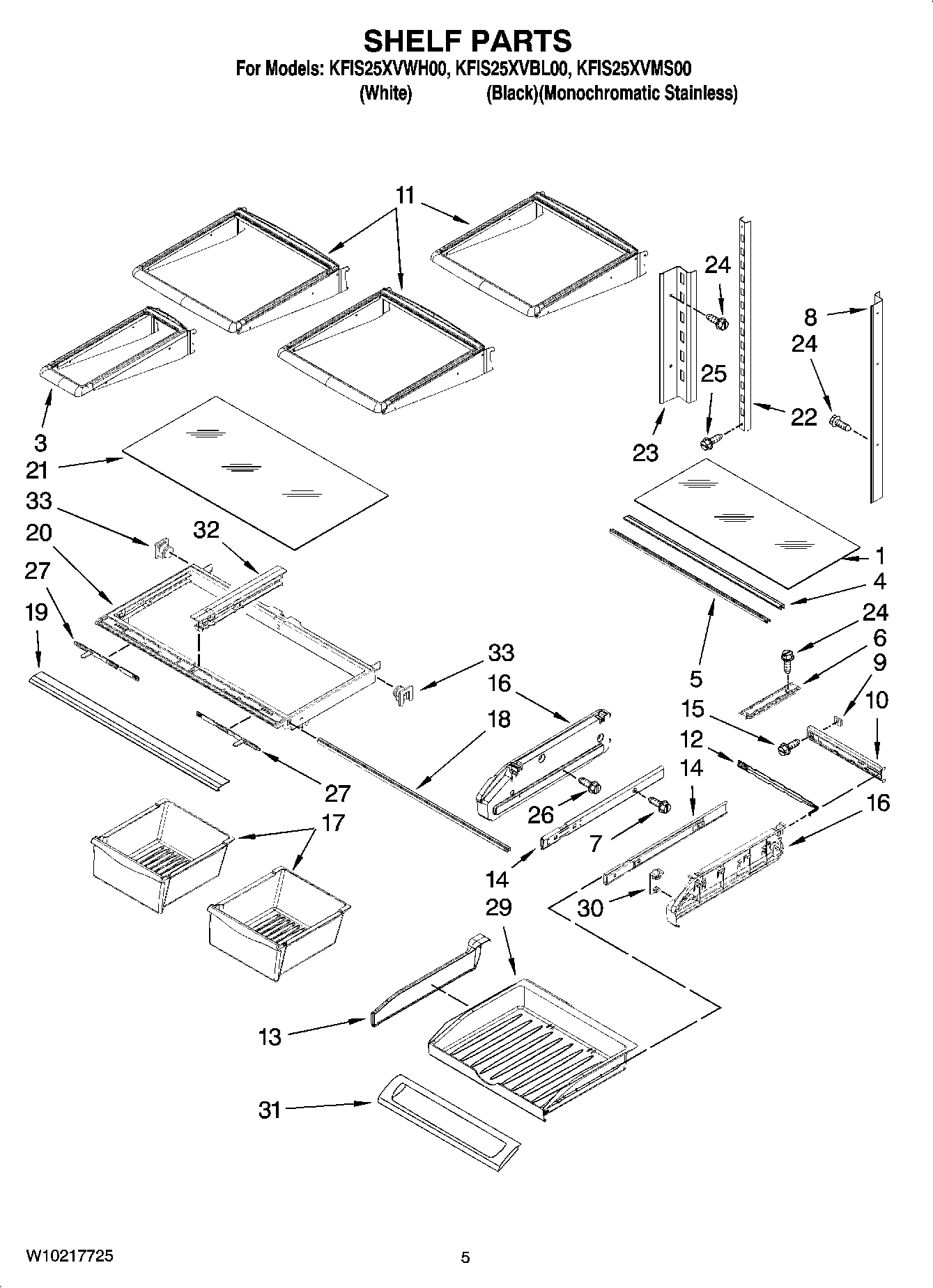

KFIS25XVMS00 03 – SHELF PARTS

Products

PositionProduct
1Glass, Pantry
3Shelf, Mini (Stationary)
4WP67006010 Whirlpool Refrigerator Shelf Trim
5WP12227305WD Whirlpool Drawer Support
6WP67001719 Whirlpool Refrigerator Track
7WP98165 Whirlpool Screw
8W10251965 Whirlpool Refrigerator Ladder
967002329 Whirlpool Refrigerator Pantry Gasket
1012656202 Whirlpool Refrigerator Housing
11W11402525 Whirlpool Glass Shelf
12WP67003793 Whirlpool Refrigerator Temperature Slide
13WP67002759 Whirlpool Refrigerator Divider
14WPW10235370 Whirlpool Refrigerator Glide
16W10874836 Whirlpool Endcap Assembly Left Hand and Right
17WP67004515 Whirlpool Crisper Drawer
18WP12642303WD Whirlpool Refrigerator Drawer Support
19Trim, Crisper
20WP67003854 Whirlpool Shelf Frame
21WP67006704 Whirlpool Glass Crisper Cover
22LADDER, CENTER
23LADDER, SIDE (LEFT HAND)
2467006425 Whirlpool Refrigerator Screw
25W10709795 Whirlpool Refrigerator Screw
26WP67006415 Whirlpool Refrigerator Screw
27SLIDE
29WP67003531 Whirlpool Drawer Assembly
30W11498983 Whirlpool Refrigerator Knob
31WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32WPW10326469 Whirlpool Drawer Slide Rail
33WP12603701 Whirlpool Refrigerator Support
