KFIS25XVMS00 09 – FREEZER DOOR PARTS

KFIS25XVMS00 09 – FREEZER DOOR PARTS

Written by

in

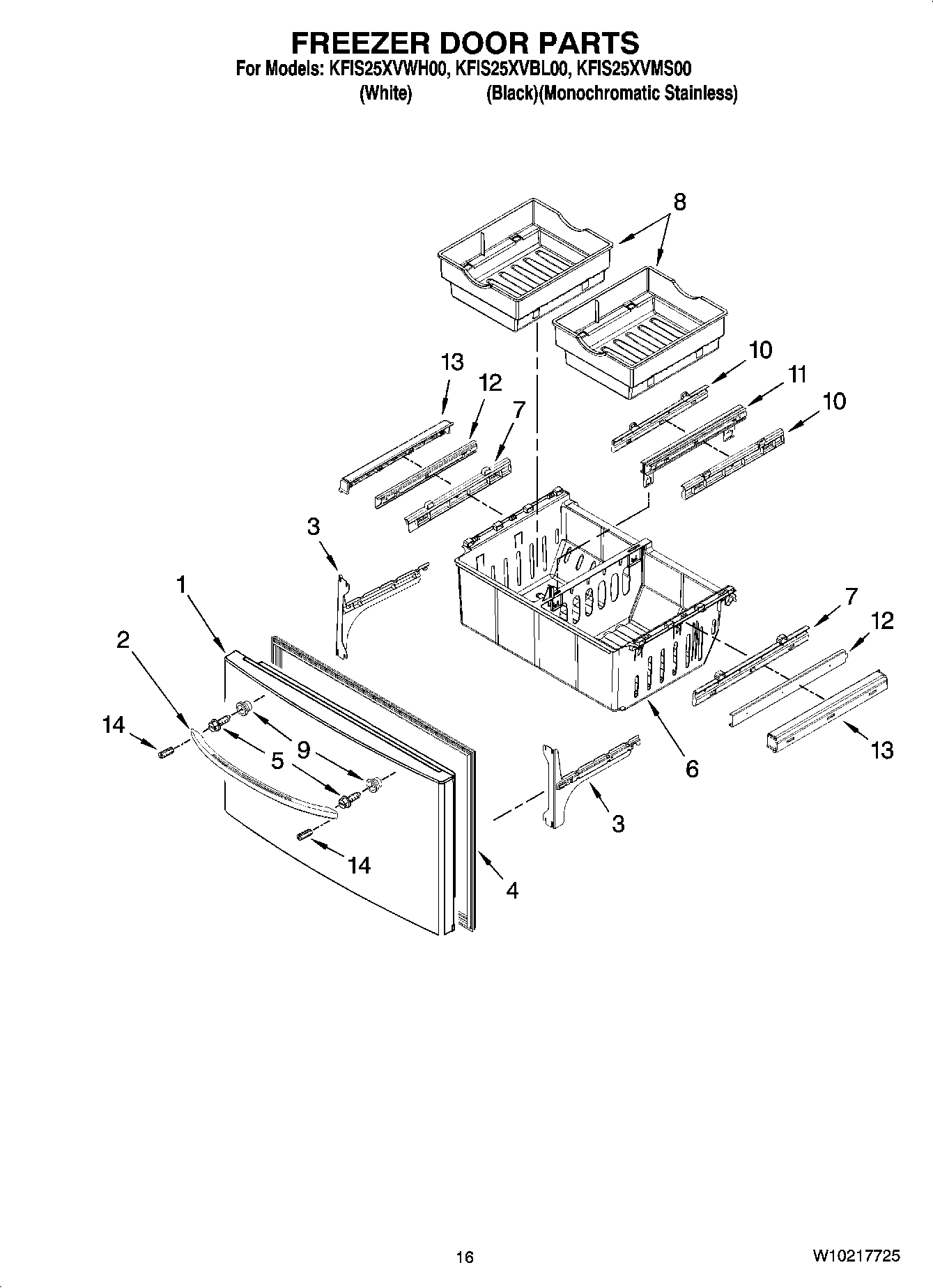

KFIS25XVMS00 09 – FREEZER DOOR PARTS

Products

PositionProduct
1DOR-FIP WH
1DOR-FIP SS
1DOR-FIP BL
2Handle, Door (Black)
2WPW10314515 Whirlpool Refrigerator Handle
2WPW10314517K Whirlpool Refrigerator Handle
3WPW10330991 Whirlpool Refrigerator Bracket
3WPW10330993 Whirlpool Refrigerator Bracket
4WPW10443321 Whirlpool Door Gasket
4GASKET-FIP
4WPW10436253 Whirlpool Refrigerator Black Freezer Door Gasket
567006901 Whirlpool Refrigerator Screw
6WP67006366 Whirlpool Refrigerator Lower Bin
7W10166742 Whirlpool Refrigerator Bracket
8WP12924903 Whirlpool Refrigerator Freezer Bin
9WP67006113 Whirlpool Stud Bolt
10Adapter, Bin (Inner)
11WPW10235357 Whirlpool Refrigerator Glide Assembly
12WPW10235367 Whirlpool Refrigerator Glide
13W10826788 Whirlpool Refrigerator Retainer
13WP67006368 Whirlpool Refrigerator Retainer
14SCREW
