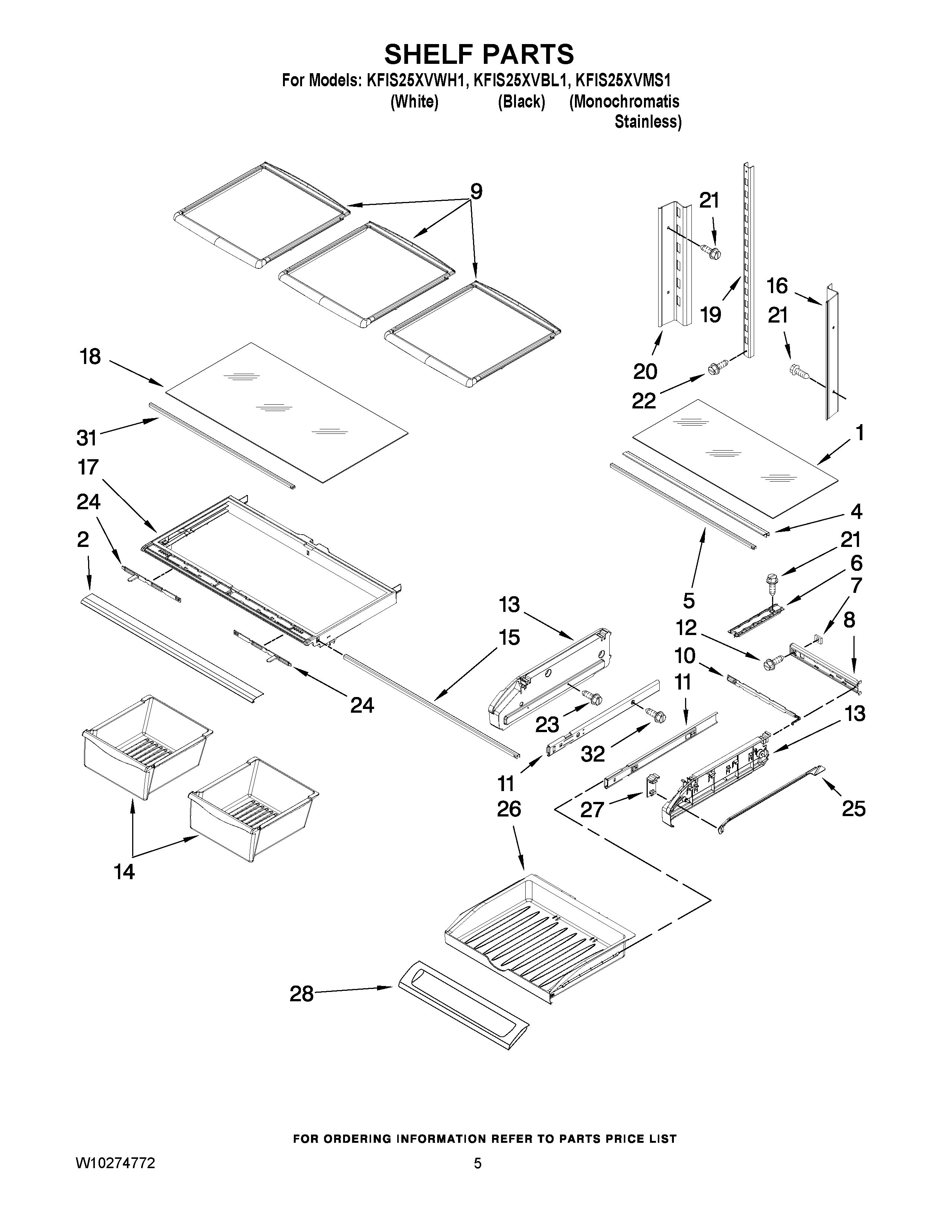

KFIS25XVMS1 03 – SHELF PARTS

Products

Position	Product
1	W11033333 Whirlpool Glass Shelf
2	TRIM, CRISPER
4	WP67006010 Whirlpool Refrigerator Shelf Trim
6	WP67001719 Whirlpool Refrigerator Track
7	67002329 Whirlpool Refrigerator Pantry Gasket
8	12656202 Whirlpool Refrigerator Housing
9	W11402525 Whirlpool Glass Shelf
10	WP67003793 Whirlpool Refrigerator Temperature Slide
11	WPW10235370 Whirlpool Refrigerator Glide
13	W10874836 Whirlpool Endcap Assembly Left Hand and Right
14	WP67004515 Whirlpool Crisper Drawer
15	WP12227305WD Whirlpool Drawer Support
16	W10251965 Whirlpool Refrigerator Ladder
17	WP67003854 Whirlpool Shelf Frame
18	WP67006704 Whirlpool Glass Crisper Cover
19	LADDER, CENTER
20	W10251966 Whirlpool Refrigerator Ladder
21	67006425 Whirlpool Refrigerator Screw
22	W10709795 Whirlpool Refrigerator Screw
23	WP67006415 Whirlpool Refrigerator Screw
24	SLIDE
25	WP67003795 Whirlpool Refrigerator Temperature Control Bar
26	WP67003531 Whirlpool Drawer Assembly
27	W11498983 Whirlpool Refrigerator Knob
28	WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
31	WP12642303WD Whirlpool Refrigerator Drawer Support
32	WP98165 Whirlpool Screw
