KFIS25XVMS10 06 – ICEMAKER PARTS

KFIS25XVMS10 06 – ICEMAKER PARTS

Written by

in

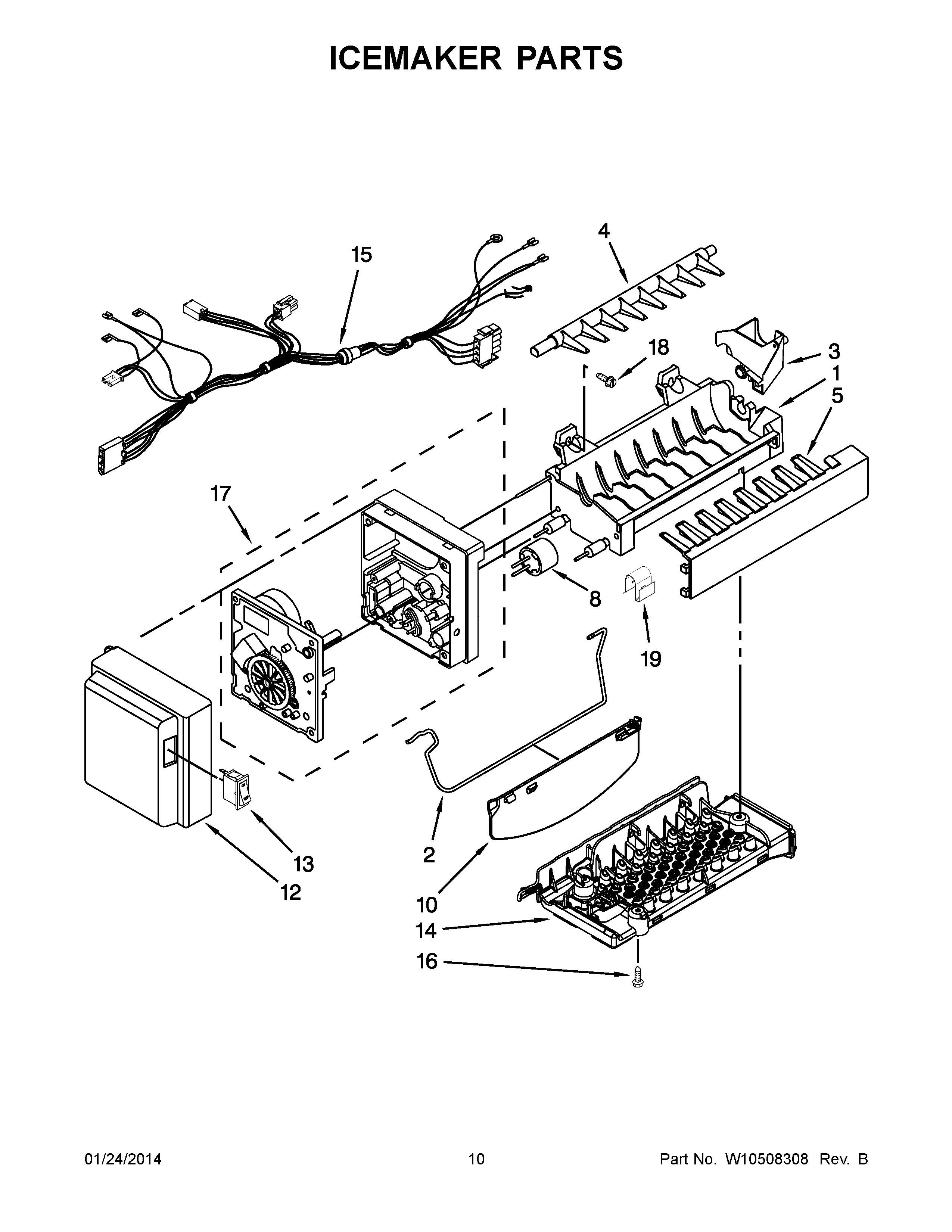

KFIS25XVMS10 06 – ICEMAKER PARTS

Products

PositionProduct
1WPW10300025 Whirlpool Refrigerator Ice Mold
2WPW10378254 Whirlpool Refrigerator Shut Off Arm
3W10377998 Whirlpool Refrigerator Cup Fill
4W10318914 Whirlpool Refrigerator Ejector Arm
5WPW10122563 Whirlpool Refrigerator Stripper Arm
8WP627985 Whirlpool Icemaker Cycling Thermostat
10WPW10351019 Whirlpool Refrigerator Extension
12WPW10460384 Whirlpool Front Cover Assembly
13WP2313326 Whirlpool Refrigerator Switch
14WPW10312691 Whirlpool Refrigerator Air Baffle
15W11029429 Whirlpool Refrigerator Wire Harness
1667006425 Whirlpool Refrigerator Screw
17W10882923 Whirlpool Refrigerator Ice Maker Assembly
18WPW10068250 Whirlpool Dishwasher Screw
19WP628379 Whirlpool Refrigerator Clip
