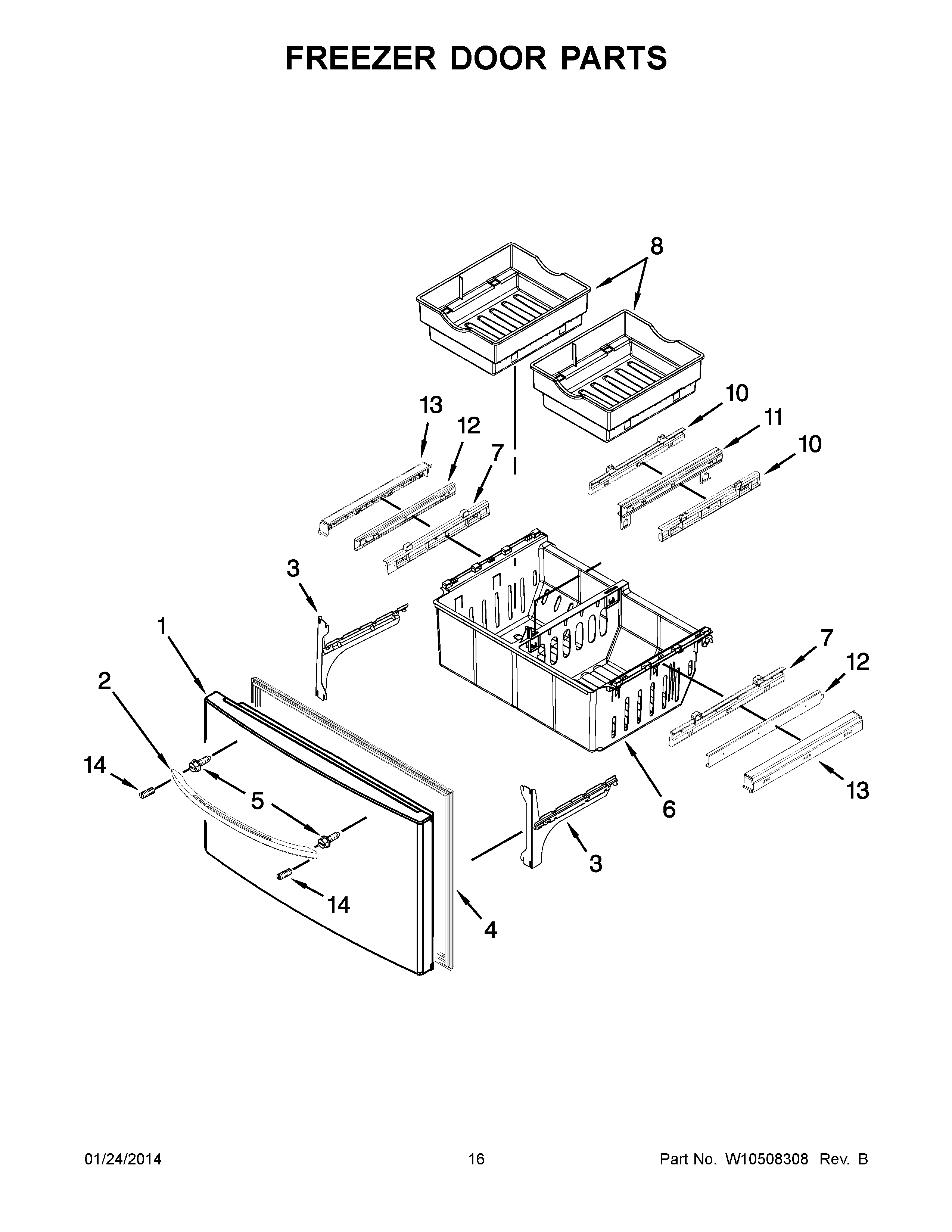

KFIS25XVMS10 09 – FREEZER DOOR PARTS

KFIS25XVMS10 09 – FREEZER DOOR PARTS

Written by

in

KFIS25XVMS10 09 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (STAINLESS)
2WPW10314517K Whirlpool Refrigerator Handle
3WPW10330994 Whirlpool Refrigerator Bracket
3WPW10330995 Whirlpool Refrigerator Bracket
4GASKET-FIP
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WP67006366 Whirlpool Refrigerator Lower Bin
7W10166742 Whirlpool Refrigerator Bracket
8WP12924903 Whirlpool Refrigerator Freezer Bin
1012925404SP Whirlpool Refrigerator Bracket
11WPW10235357 Whirlpool Refrigerator Glide Assembly
12WPW10235367 Whirlpool Refrigerator Glide
13W10826788 Whirlpool Refrigerator Retainer
13WP67006368 Whirlpool Refrigerator Retainer
14WP3400203 Whirlpool Screw
