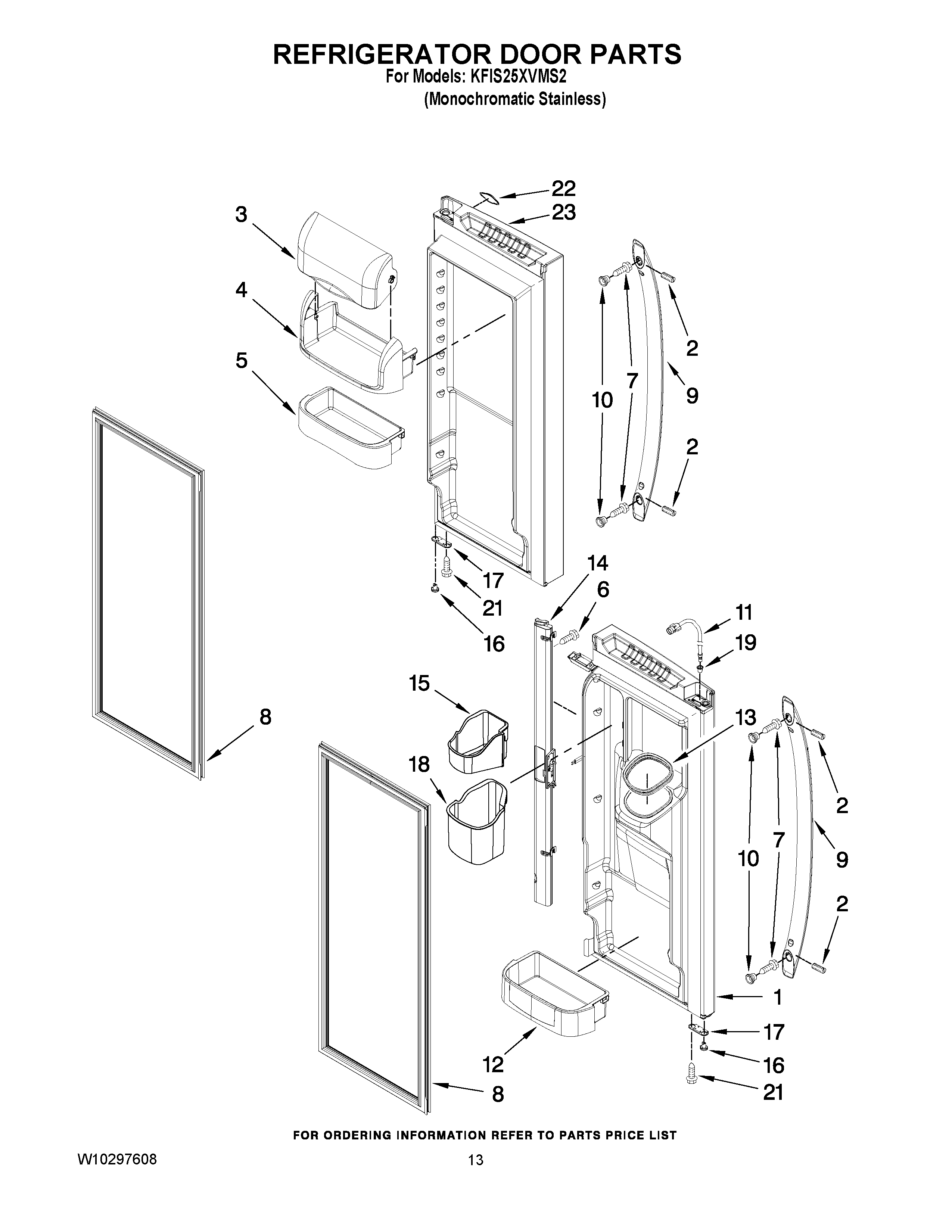

KFIS25XVMS2 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (STAINLESS)
2	SCREW
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10451453 Whirlpool Refrigerator Cantilever Bin
6	W11311945 Whirlpool Refrigerator Screw
7	WP3387230 Whirlpool Screw
8	GASKET-FIP GRAY
9	WPW10314517K Whirlpool Refrigerator Handle
10	MOUNT, HANDLE
11	12962106 Whirlpool Refrigerator Waterline Door
12	WPW10451454 Whirlpool Refrigerator Cantilever Bin
13	WPW10287601 Whirlpool Seal
14	WP12722813AP Whirlpool Refrigerator Mullion Rail
15	W10187453 Whirlpool Refrigerator Bin
16	WP12028505AP Whirlpool Closing Cam
17	W11703060 Whirlpool Door Stop
18	BUCKET, LOWER
19	12996601 Whirlpool Refrigerator Bushing Clip
21	WP98165 Whirlpool Screw
22	NAMEPLATE
23	DOOR, RIGHT (STAINLESS)
