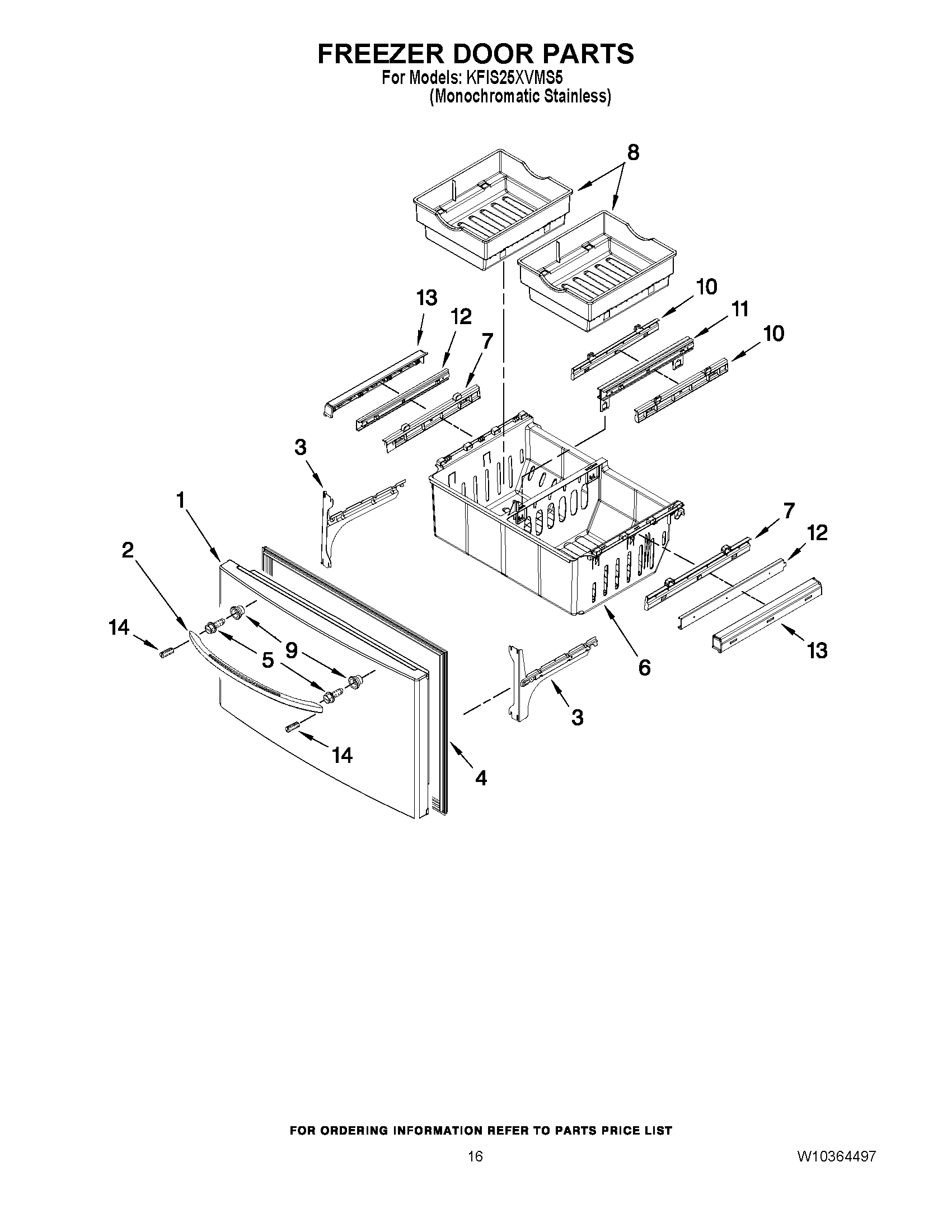

KFIS25XVMS5 09 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (STAINLESS)
2	WPW10314517K Whirlpool Refrigerator Handle
3	WPW10330991 Whirlpool Refrigerator Bracket
3	WPW10330993 Whirlpool Refrigerator Bracket
4	GASKET-FIP
5	SCREW
6	WP67006366 Whirlpool Refrigerator Lower Bin
7	W10166742 Whirlpool Refrigerator Bracket
8	WP12924903 Whirlpool Refrigerator Freezer Bin
9	WP67006113 Whirlpool Stud Bolt
10	12925404SP Whirlpool Refrigerator Bracket
11	WPW10235357 Whirlpool Refrigerator Glide Assembly
12	WPW10235367 Whirlpool Refrigerator Glide
13	W10826788 Whirlpool Refrigerator Retainer
13	WP67006368 Whirlpool Refrigerator Retainer
14	WP3400203 Whirlpool Screw
