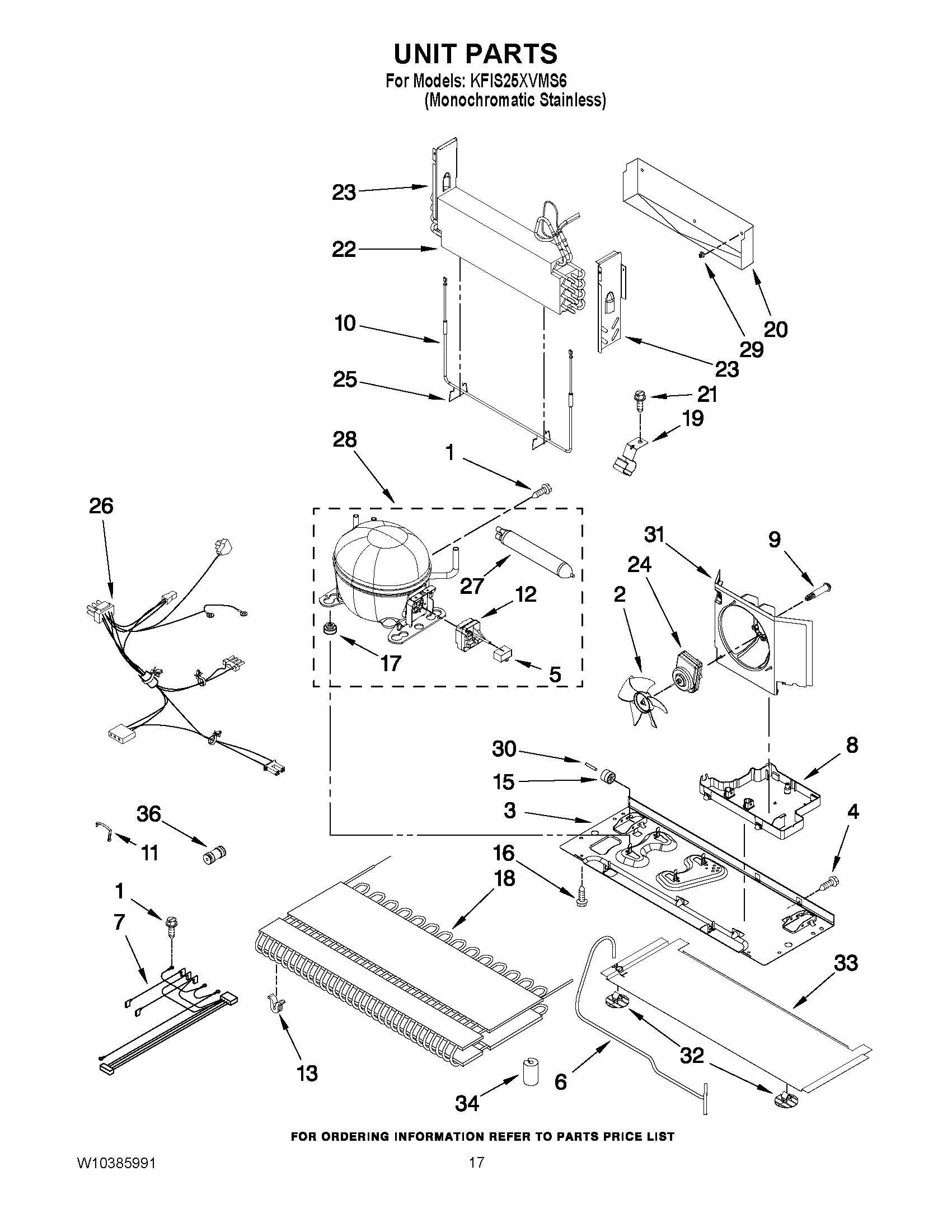

KFIS25XVMS6 10 – UNIT PARTS

KFIS25XVMS6 10 – UNIT PARTS

Written by

in

KFIS25XVMS6 10 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
5	WPW10662129 Whirlpool Refrigerator Run Capacitor
6	WPW10217747 Whirlpool Refrigerator Tube
7	W10850438 Whirlpool Refrigerator Evaporator Motor
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729123 Whirlpool Refrigerator Heater
11	W10204187 Whirlpool Refrigerator Retainer
12	WPW10194431 Whirlpool Start Device
12	WPW10197428 Whirlpool Start Device
13	WPW10137529 Whirlpool Refrigerator Grommet
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346415 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	W11536253 Whirlpool Refrigerator Evaporator
23	12963002SP Whirlpool Refrigerator Evaporator Support
23	DAM, RETURN (RIGHT HAND)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	W11666013 Whirlpool Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10160407 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	W10206339 Whirlpool Fastener
33	EXTENSION-BASEPAN
34	W10852725 Whirlpool Refrigerator Grommet
36	WPW10334458 Whirlpool Refrigerator Connector
