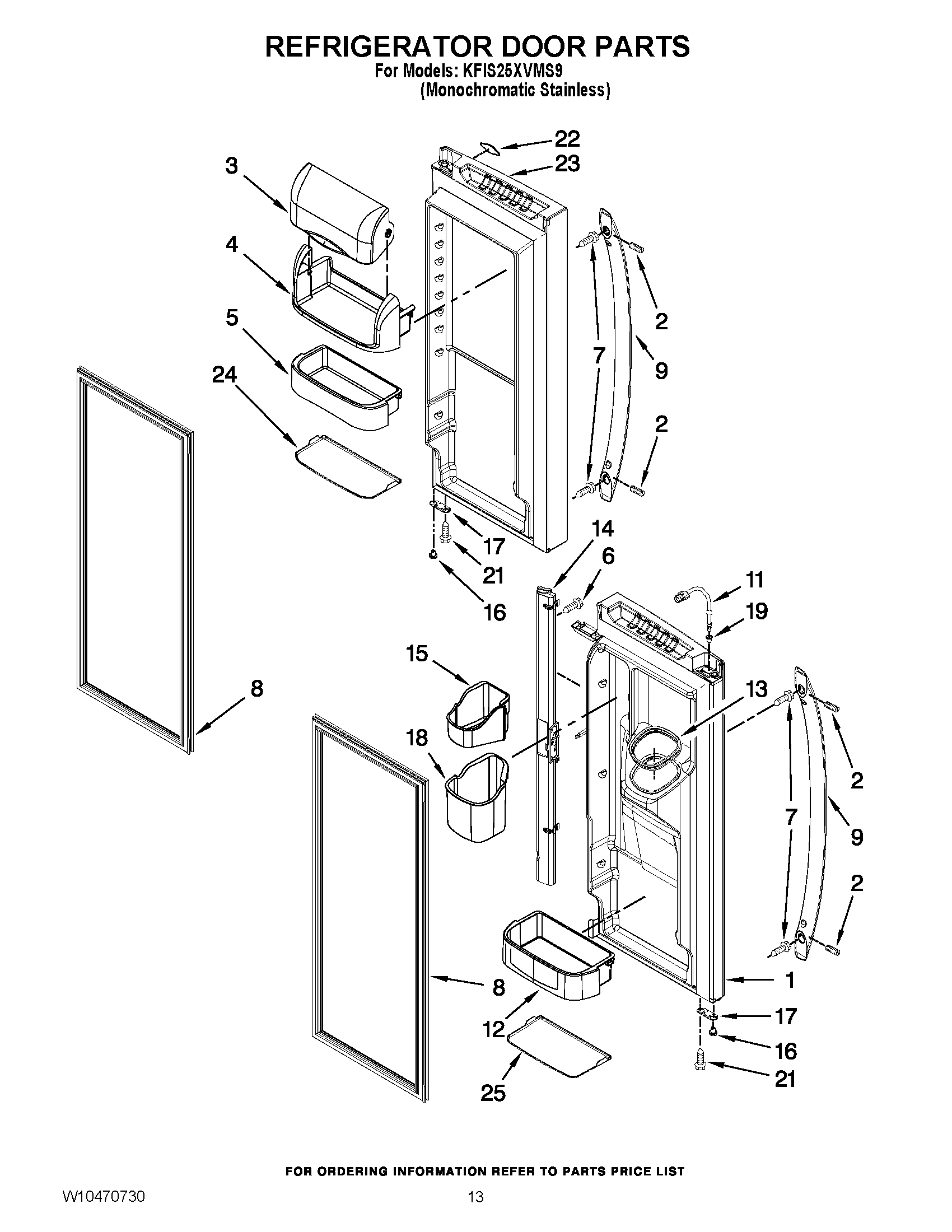

KFIS25XVMS9 07 – REFRIGERATOR DOOR PARTS

KFIS25XVMS9 07 – REFRIGERATOR DOOR PARTS

Written by

in

KFIS25XVMS9 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS)
2WP3400203 Whirlpool Screw
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10119841 Whirlpool Cantilever Bin
6W11311945 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8GASKET-FIP GRAY
9WPW10314517K Whirlpool Refrigerator Handle
11W10275942 Whirlpool Refrigerator Water Tube
12WPW10119846 Whirlpool Refrigerator Door Bin Shelf Basket
13WPW10287601 Whirlpool Seal
14WP12722813AP Whirlpool Refrigerator Mullion Rail
15W10187453 Whirlpool Refrigerator Bin
16WP12028505AP Whirlpool Closing Cam
17W11703060 Whirlpool Door Stop
18BUCKET, LOWER
1912996601 Whirlpool Refrigerator Bushing Clip
21WP98165 Whirlpool Screw
22WPW10243391 Whirlpool Refrigerator Nameplate
23DOOR, RIGHT (STAINLESS)
24W11510593 Whirlpool Refrigerator Mat
25W11510594 Whirlpool Refrigerator Mat
