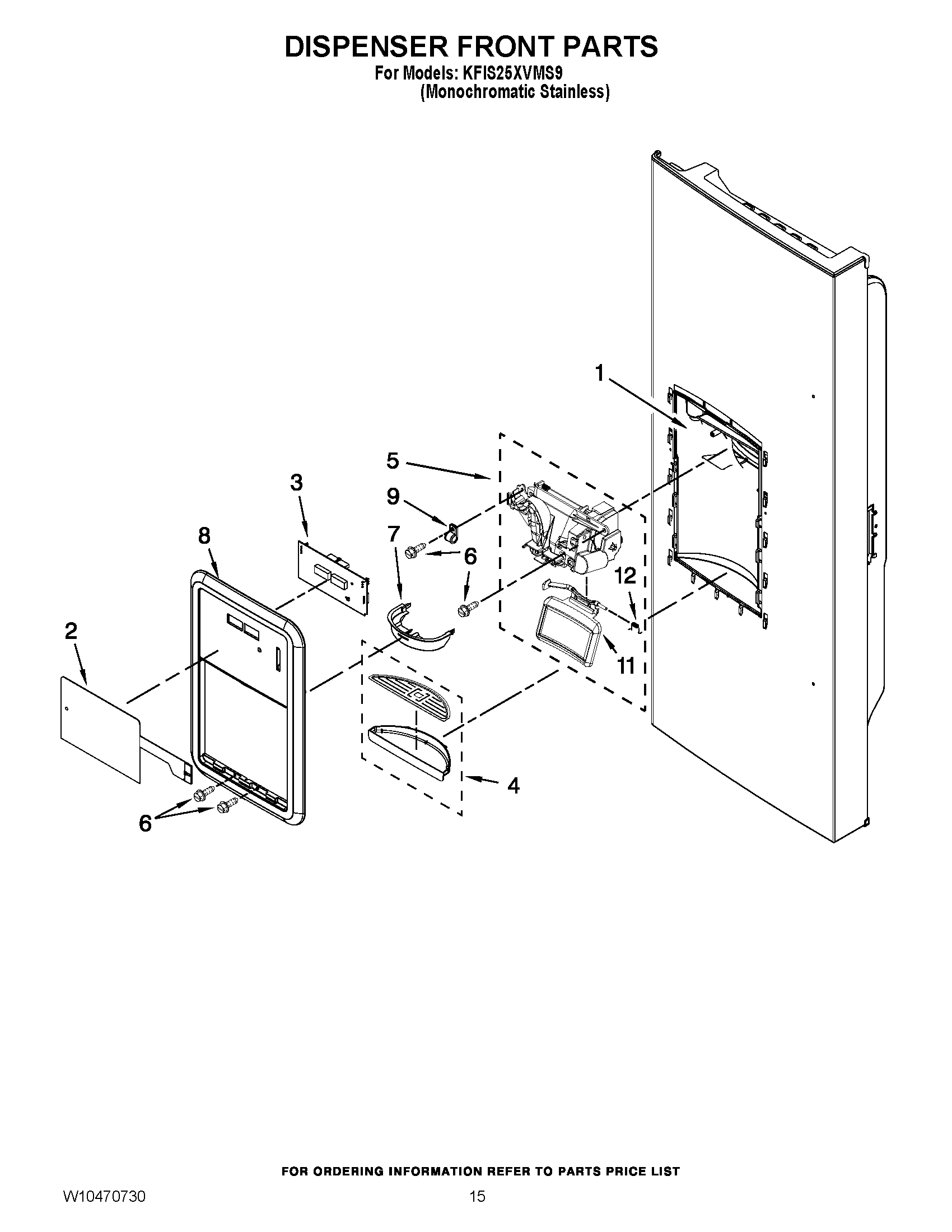

KFIS25XVMS9 08 – DISPENSER FRONT PARTS

KFIS25XVMS9 08 – DISPENSER FRONT PARTS

Written by

in

KFIS25XVMS9 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Dispenser Keyboard
3Board, L.V.
4SUMP, DISPENSER (STAINLESS)
5WP13005705 Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8FACADE, DISPENSER (STAINLESS)
9M0108106 Whirlpool Refrigerator Clamp
11WPW10185233 Whirlpool Refrigerator Pad
12WP12565502 Whirlpool Refrigerator Spring
