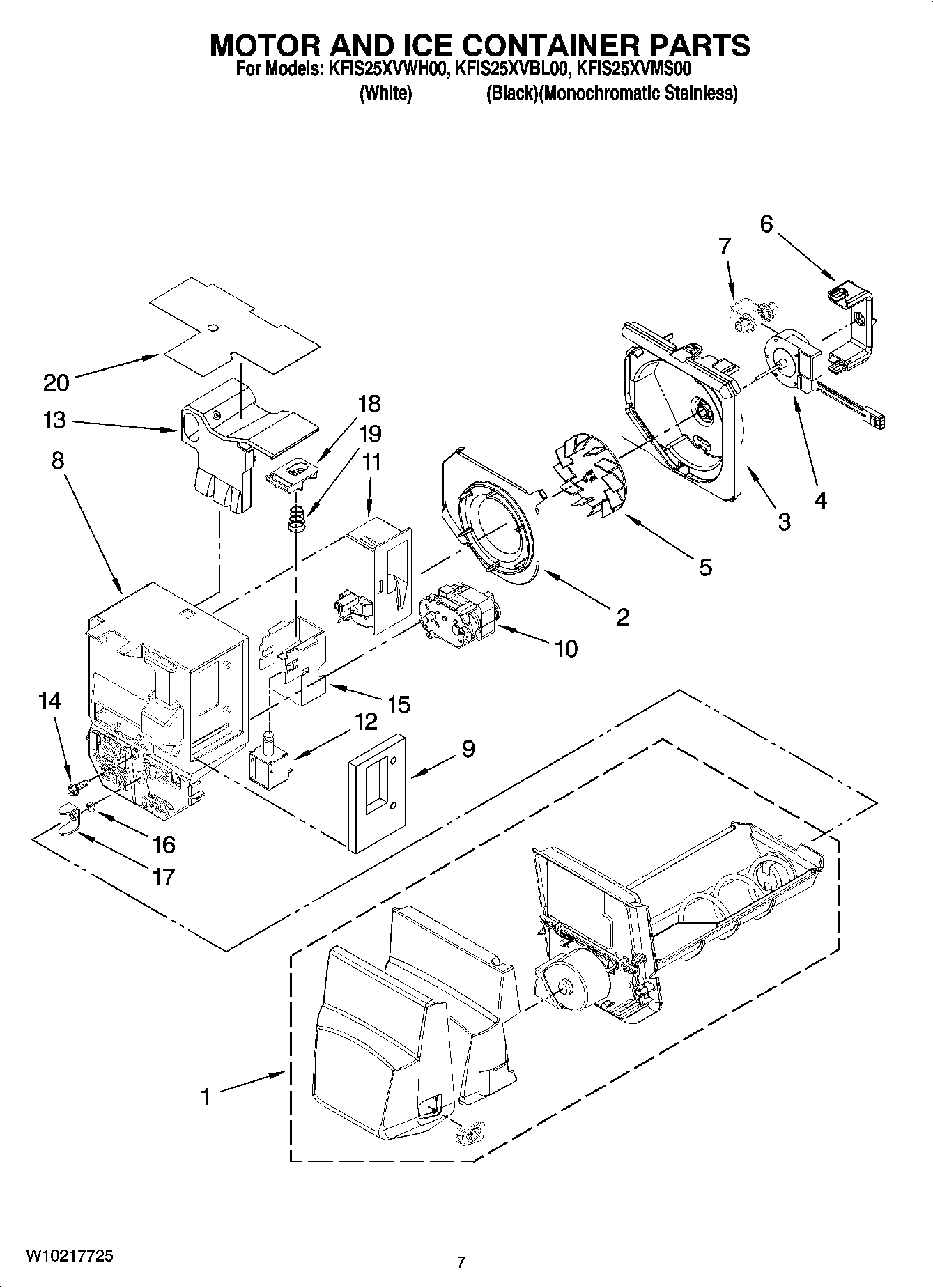

KFIS25XVWH00 04 – MOTOR AND ICE CONTAINER PARTS

KFIS25XVWH00 04 – MOTOR AND ICE CONTAINER PARTS

Written by

in

KFIS25XVWH00 04 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1WPW10324090 Whirlpool Refrigerator Ice Bin
2W10121282 Whirlpool Refrigerator Insert
3W10121281 Whirlpool Refrigerator Shroud
4WPW10162697 Whirlpool Refrigerator Motor
5WPW10123444K Whirlpool Refrigerator Wheel
6W10165970 Whirlpool Refrigerator Clip
7GROMMET, FAN MOTOR
812958408 Whirlpool Refrigerator Divider
9WP67006341 Whirlpool Refrigerator Gasket
1067006342 Whirlpool Refrigerator Auger Motor
11WPW10127427 Whirlpool Refrigerator Control
1267006344 Whirlpool Refrigerator Solenoid
13W11676504 Whirlpool Insert Assembly
1467006425 Whirlpool Refrigerator Screw
1567007111 Whirlpool Refrigerator Spring Bracket
1667006346 Whirlpool Refrigerator Washer
17YOKE, ICE DISPENSER
18YOKE, SOLENOID
1967006348 Whirlpool Refrigerator Spring
20Foil, Ice Box
