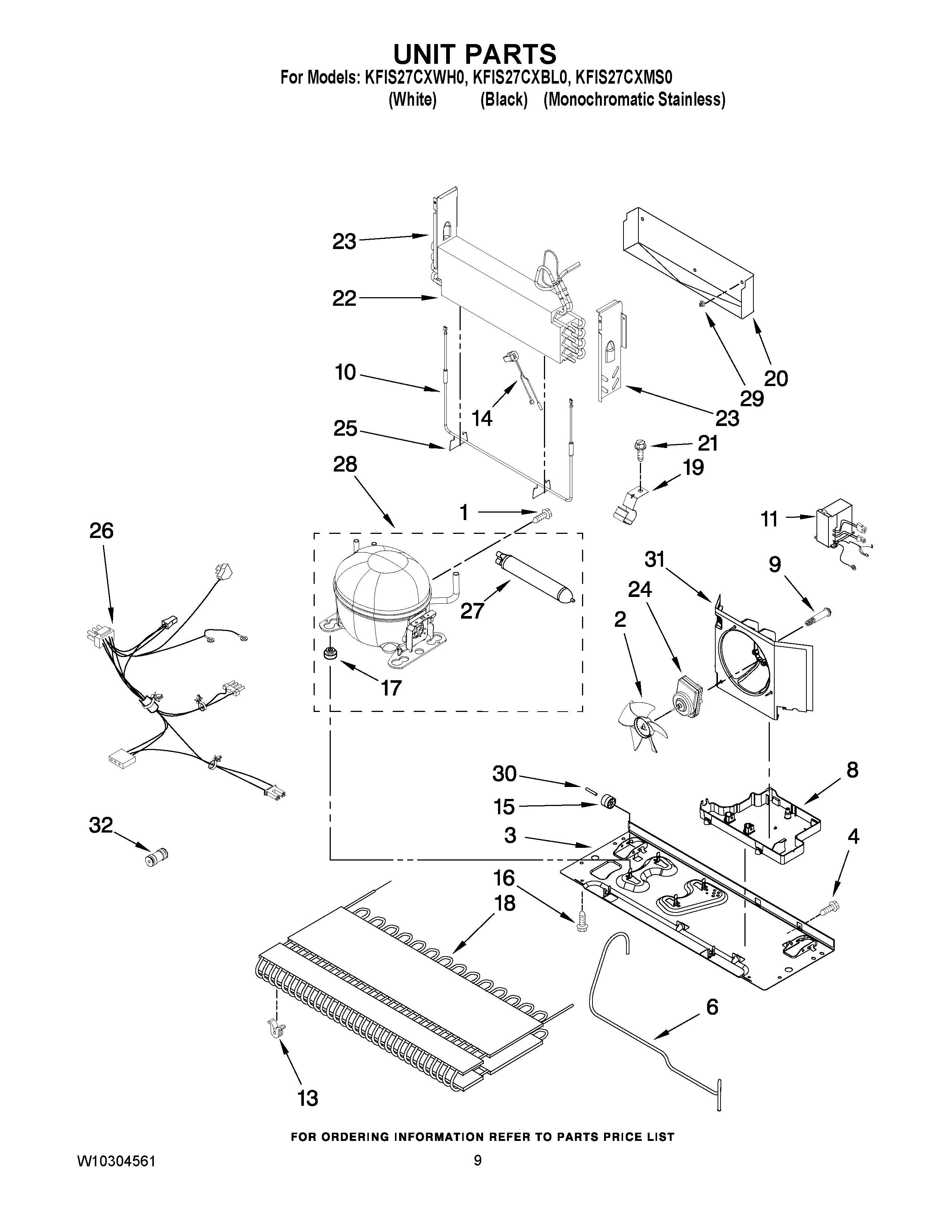

KFIS27CXBL0 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
4	67006425 Whirlpool Refrigerator Screw
6	W10242974 Whirlpool Refrigerator 25" Tube
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729123 Whirlpool Refrigerator Heater
11	W10893917 Whirlpool Refrigerator Inverter Box
13	WPW10137529 Whirlpool Refrigerator Grommet
14	WP67006387 Whirlpool Refrigerator Thermostat
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346415 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	12002730 Whirlpool Refrigerator Evaporator Kit
23	DAM, RETURN (RIGHT HAND)
23	12963002SP Whirlpool Refrigerator Evaporator Support
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	W10271463 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10276644 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	WP4373559 Whirlpool Fitting
