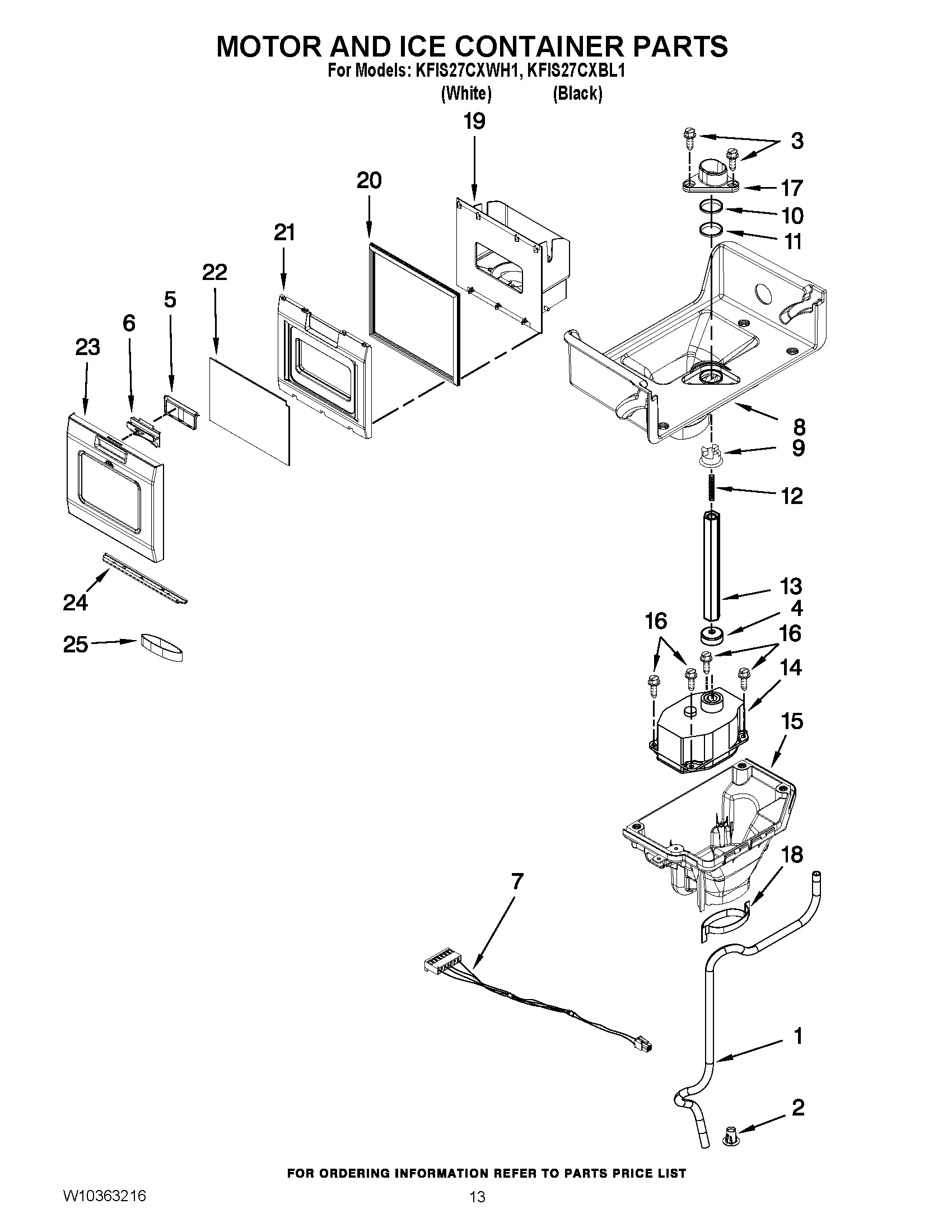

KFIS27CXBL1 07 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	TUBE, DRAIN
2	W10562834 Whirlpool Refrigerator Clip
3	WP3400065 Whirlpool Refrigerator Screw
4	2323357 Whirlpool Refrigerator Washer
5	COVER, LATCH
6	SPRING, LATCH
7	W10291014 Whirlpool Refrigerator Wire Harness
8	COVER, MOUNTING PLATE
9	WP2220458 Whirlpool Drive Cam
10	WP2198628 Whirlpool Door Seal
11	WP2212370 Whirlpool Washer
12	W10852956 Whirlpool Refrigerator Spring
13	SHAFT, MOTOR
14	WP2323603 Whirlpool Refrigerator Motor
15	HOUSING, AUGER MOTOR
16	WP8281163 Whirlpool Refrigerator Screw
17	CLIP, SHAFT
18	GASKET, MOTOR BOX
19	CONTAINER, ICE
20	GASKET, ICE CONTAINER
21	EPS, ICE CONTAINER
22	WINDOW, ICE CONTAINER
23	FRONT, ICE CONTAINER
24	HINGE, ICE BUCKET
25	GASKET, CHUTE
100	CONTAINER, ICE (COMPLETE)
