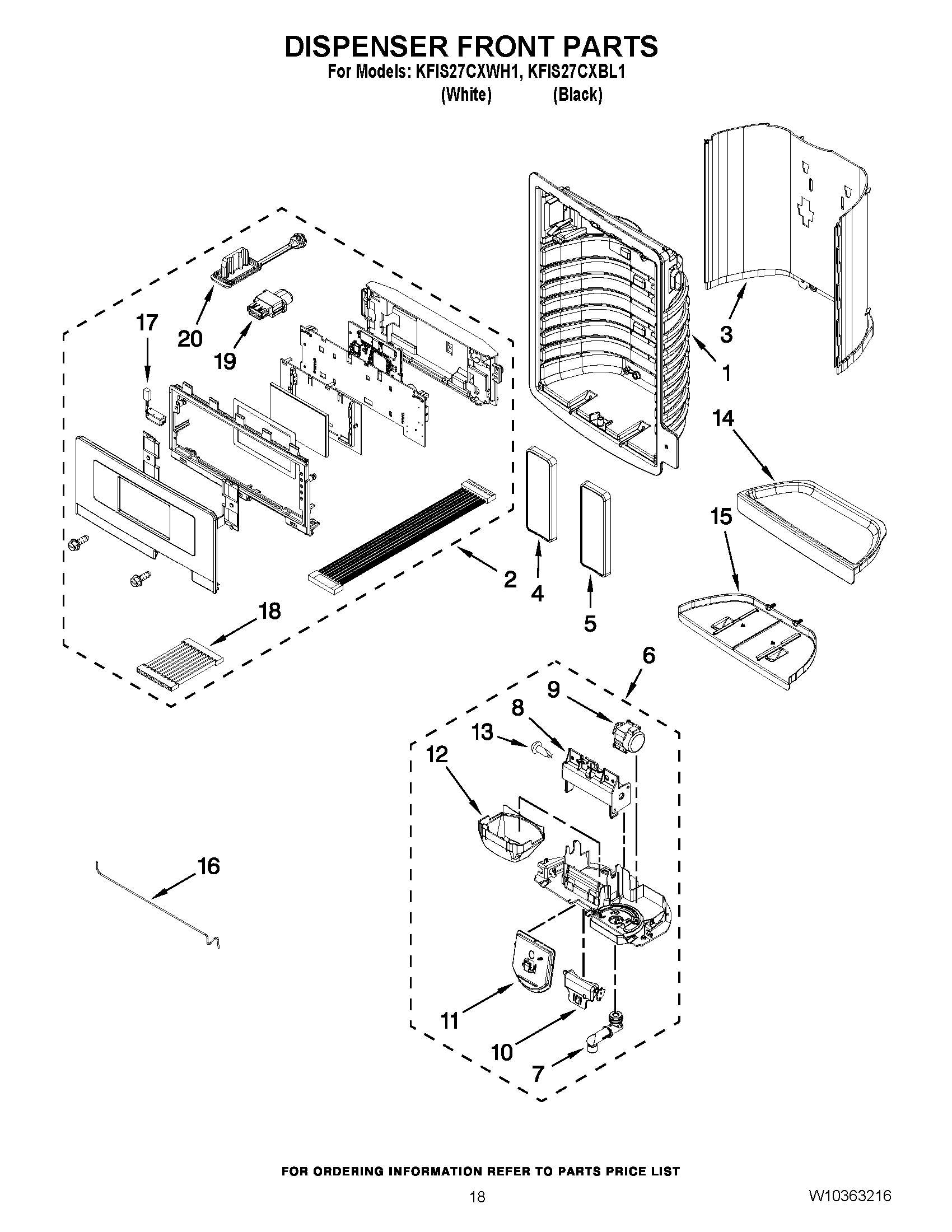

KFIS27CXBL1 10 – DISPENSER FRONT PARTS
Written by
in
KFIS27CXBL1 10 – DISPENSER FRONT PARTS
Products
Position
Product
1
CABINET (NOT A SERVICEABLE PART)
2
UI ASSEMBLY (BLACK)
2
UI ASSEMBLY (WHITE)
3
W11045975 Whirlpool Refrigerator Shield
3
W11045976 Whirlpool Refrigerator Shield
4
PAD, ICE DISPENSER (WHITE)
4
PAD, ICE DISPENSER (BLACK)
5
PAD, WATER DISPENSER (WHITE)
5
PAD, WATER DISPENSER (BLACK)
6
WPW10353552 Whirlpool Refrigerator Separator
7
W11227371 Whirlpool Refrigerator Spigot
8
W10174827 Whirlpool Refrigerator Bracket
9
WPW10205979 Whirlpool Refrigerator Ice Door Motor
10
WPW10346124 Whirlpool Refrigerator Support
11
W10346235 Whirlpool Refrigerator Chute Door
12
WPW10435760 Whirlpool Refrigerator Ice Guide
13
WP4449745 Whirlpool Screw
14
TRAY, DISPENSER (BLACK)
14
TRAY, DISPENSER (WHITE)
15
W10267861 Whirlpool Refrigerator Drip Tray
15
W10267860 Whirlpool Refrigerator Drip Tray
16
TUBE, WATER (DISPENSER)
17
W11290115 Whirlpool Refrigerator Light
18
HARNESS, JUMPER
19
GRATE, DRIP
19
HARNESS, USB
20
COVER- USB
←
