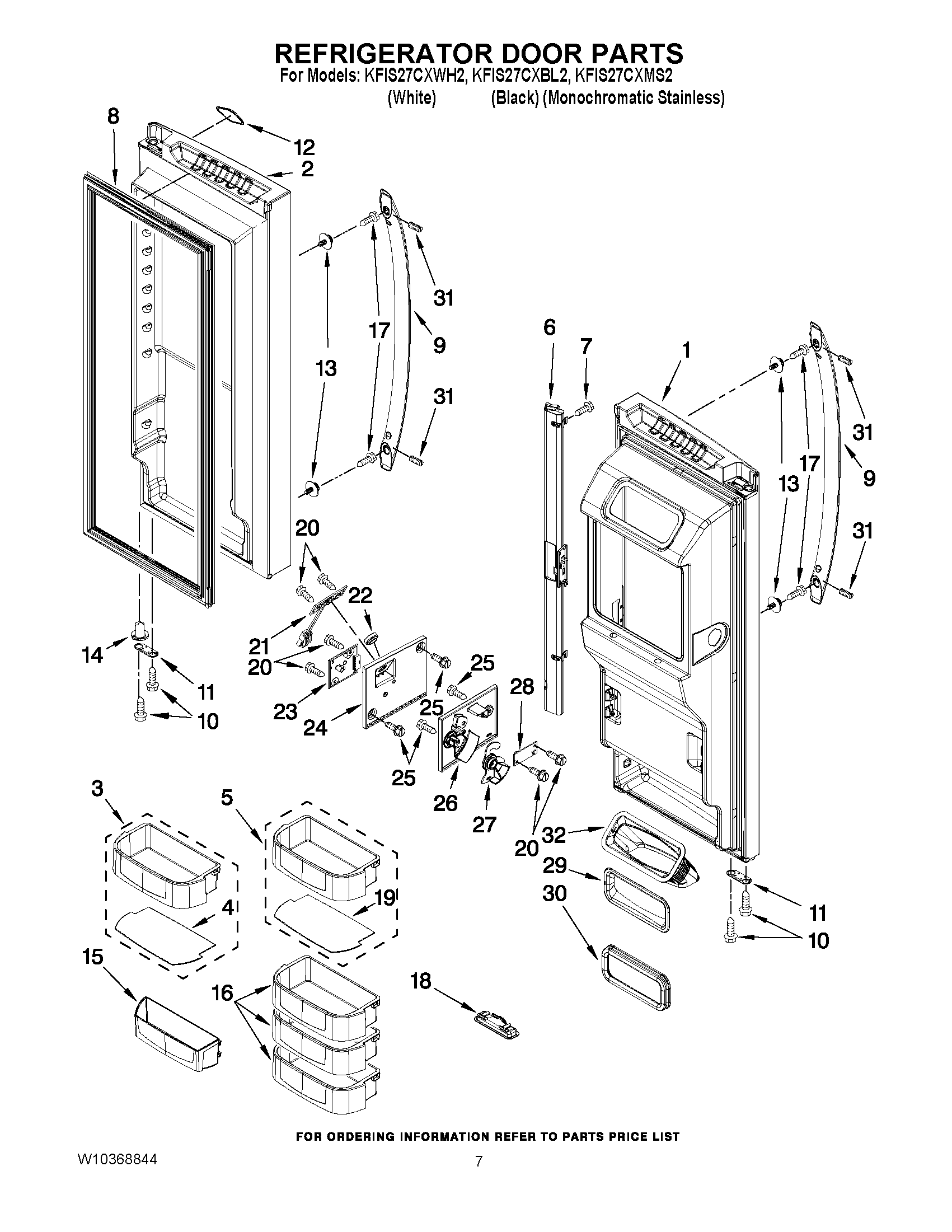

KFIS27CXBL2 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (WHITE)
1	DOOR, LEFT (STAINLESS)
1	DOOR, LEFT (BLACK)
2	DOOR, RIGHT (WHITE)
2	DOOR, RIGHT (STAINLESS)
2	DOOR, RIGHT (BLACK)
3	BUCKET, DOOR SMALL (INCLUDES No.4)
4	GRIPPER, GALLON
5	BUCKET, DOOR GALLON (INCLUDES No.4)
6	WP12722815W Whirlpool Refrigerator Mullion Rail
6	12722815B Whirlpool Refrigerator Mullion Rail
6	WP12722815AP Whirlpool Refrigerator Mullion Rail
7	W11311945 Whirlpool Refrigerator Screw
8	GASKET-FIP GRAY
8	W11378944 Whirlpool Door Gasket
8	W11396037 Whirlpool Door Gasket
9	WPW10314515 Whirlpool Refrigerator Handle
9	WPW10314517K Whirlpool Refrigerator Handle
9	HANDLE, DOOR (BLACK)
10	WP98165 Whirlpool Screw
11	W11708403 Whirlpool Door Stop
11	W11703060 Whirlpool Door Stop
11	12968202W Whirlpool Refrigerator Door Stop
12	WPW10243391 Whirlpool Refrigerator Nameplate
12	WPW10243393 Whirlpool Dishwasher Nameplate
12	WPW10243392 Whirlpool Dishwasher Nameplate
13	WP67006113 Whirlpool Stud Bolt
14	WP67003639 Whirlpool Refrigerator Closer
14	WP12028505AP Whirlpool Closing Cam
14	WP67003638 Whirlpool Closing Cam
15	BUCKET, SMALL
16	BUCKET, DOOR GALLON (RH) (WITHOUT GRIPPER)
17	SCREW
18	LATCH, ICE BIN
19	GRIPPER
20	2006254 Whirlpool Refrigerator Screw
21	WPW10305123 Whirlpool Refrigerator Electronic Control Board
22	LENS, ICE BIN LED
23	BOARD, RECEIVER
24	COVER, RECEIVER
25	WP3400065 Whirlpool Refrigerator Screw
26	COVER, EMITTER
27	SHUTOFF, EMITTER
28	W10870822 Whirlpool Refrigerator Electronic Control Board
29	SEAL, ICE DOOR
30	GASKET, ICE CHUTE
31	WP3400203 Whirlpool Screw
32	CHUTE, ICE DOOR
