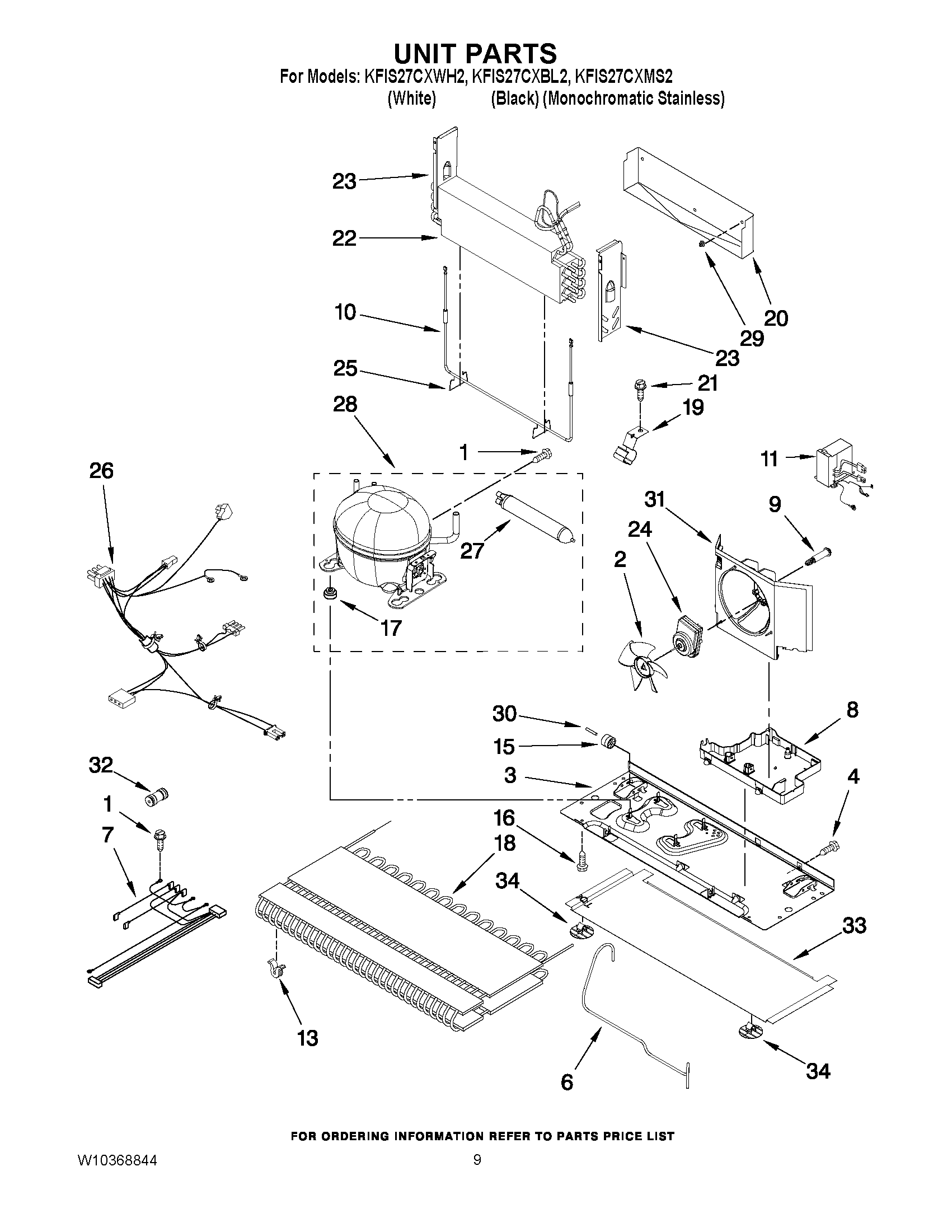

KFIS27CXBL2 05 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
6	W10242974 Whirlpool Refrigerator 25" Tube
7	HARNESS EVAPORATOR (INCL.DEF.HEATER)
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729123 Whirlpool Refrigerator Heater
11	W10893917 Whirlpool Refrigerator Inverter Box
13	WPW10137529 Whirlpool Refrigerator Grommet
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346415 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	67006425 Whirlpool Refrigerator Screw
22	W11536253 Whirlpool Refrigerator Evaporator
23	12963002SP Whirlpool Refrigerator Evaporator Support
23	DAM, RETURN (RIGHT HAND)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	W10271463 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10276644 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	WPW10334458 Whirlpool Refrigerator Connector
33	EXTENSION-BASEPAN
34	W10206339 Whirlpool Fastener
