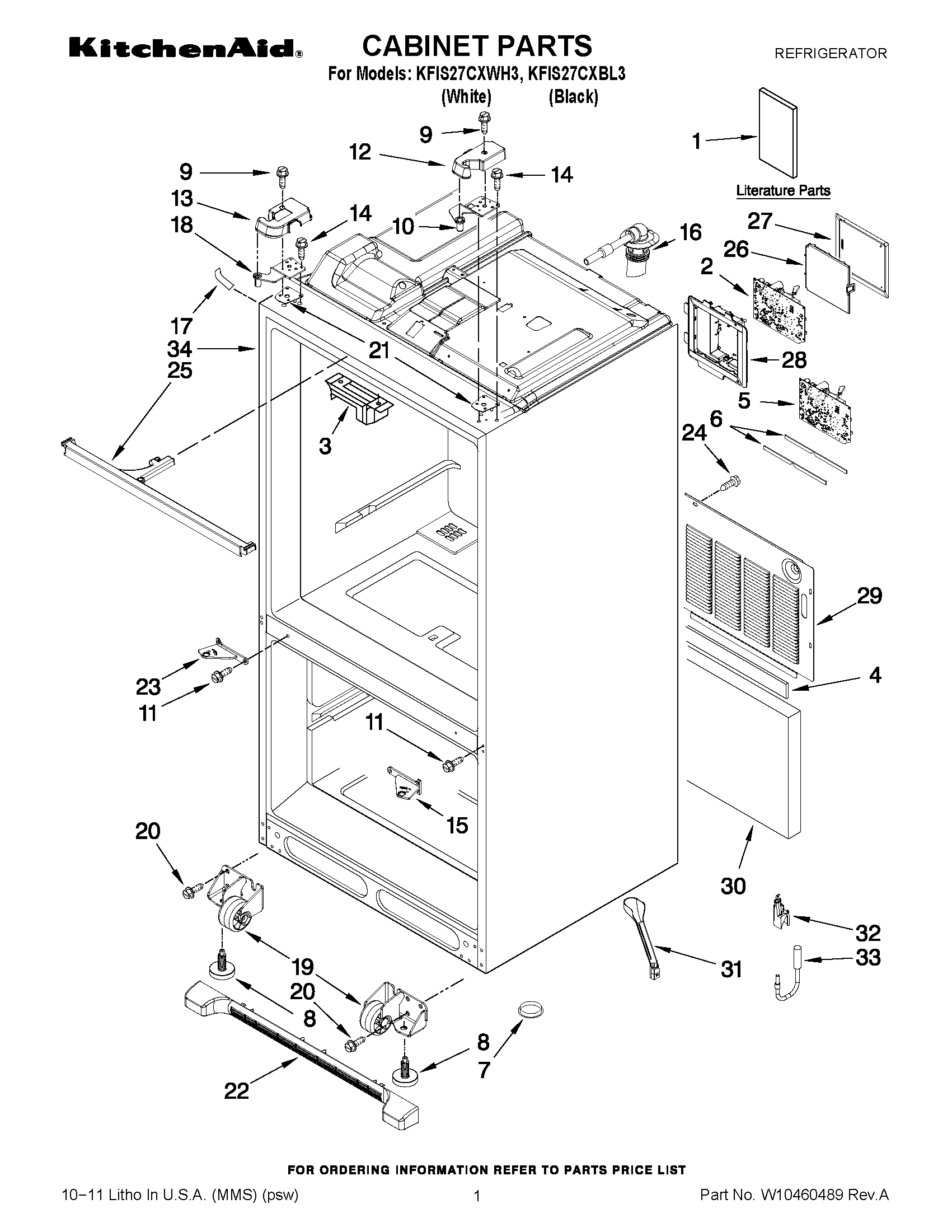

KFIS27CXBL3 01 – CABINET PARTS

KFIS27CXBL3 01 – CABINET PARTS

Written by

in

KFIS27CXBL3 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1TAG, ENERGY
1OWNERS MANUAL
2WPW10226427 Whirlpool Refrigerator Electronic Control Board
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10267646 Whirlpool Refrigerator Electronic Control Board
6GASKET-HV CNTRL-2
7A3076901 Whirlpool Refrigerator Plug
8WPW10141622 Whirlpool Leveler
9WP8281196 Whirlpool Screw
10W11592374 Whirlpool Refrigerator Top Door Hinge
11WP67006380 Whirlpool Screw
12COVER, RIGHT HINGE (WHITE)
12COVER, RIGHT HINGE (BLACK)
13COVER, LEFT HINGE (BLACK)
13COVER, LEFT HINGE (WHITE)
14WP489349 Whirlpool Refrigerator Screw
1513000002WD Whirlpool Refrigerator Door Hinge
15W10918168 Whirlpool Refrigerator Door Hinge
16FILL TUBE, ICEMAKER
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1712587703W Whirlpool Refrigerator Cover
18W10213415 Whirlpool Refrigerator Door Hinge
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
2112999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534154 Whirlpool Refrigerator Front Grille
23W10918164 Whirlpool Refrigerator Door Hinge
23W10918113 Whirlpool Refrigerator Door Hinge
2467006425 Whirlpool Refrigerator Screw
25COVER, WATER LINE (WHITE)
25COVER, WATER LINE (BLACK)
26W10296541 Whirlpool Refrigerator Wire Cover
2712961602 Whirlpool Refrigerator Wire Cover
28WPL W10159461
29WPW10270394 Whirlpool Refrigerator Back Cover
30INSULATION, SOUND
31W10619951 Whirlpool Drain Tube with Grommet
32COVE
33WATERLINE, HOUSEHOLD
34CABINET (NOT A SERVICEABLE PART)
