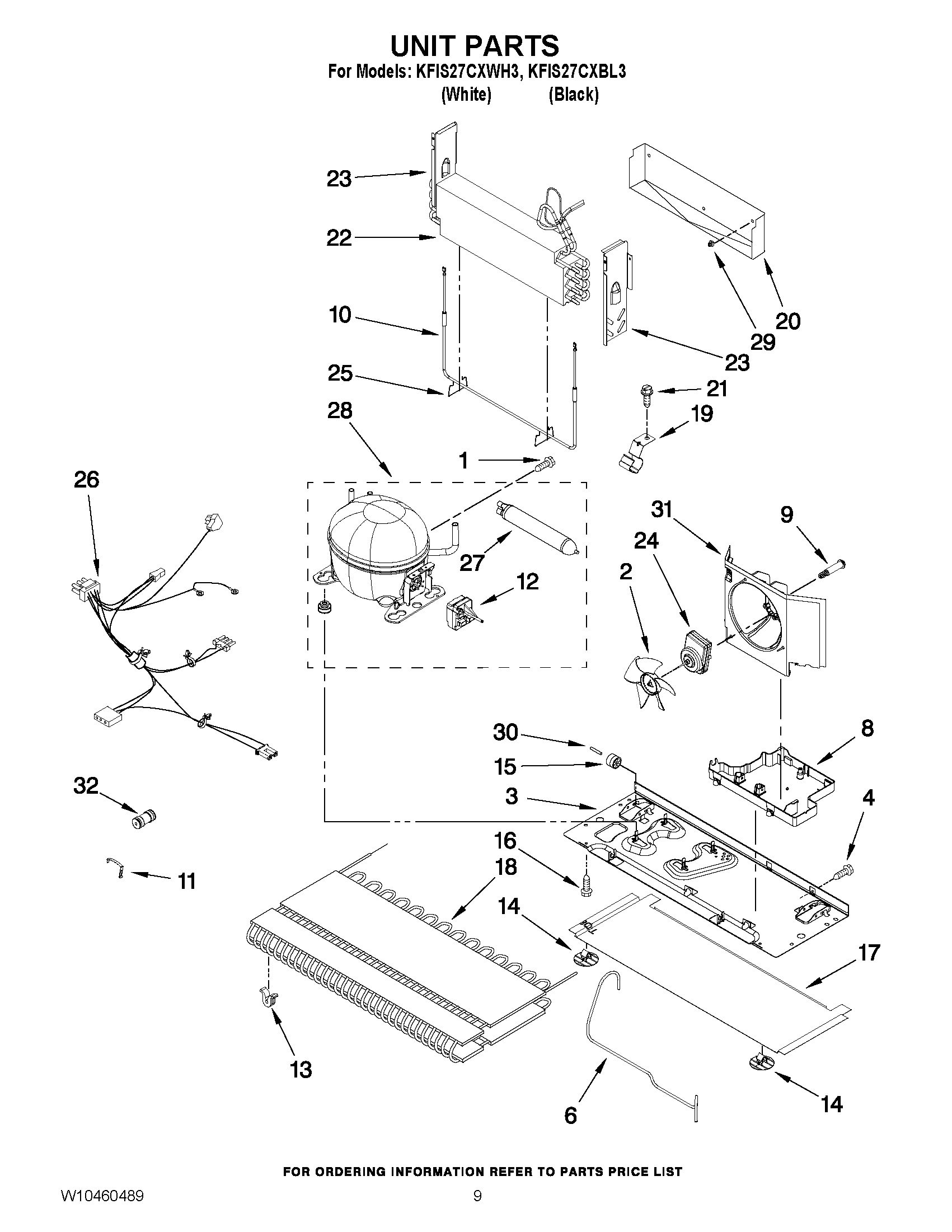

KFIS27CXBL3 05 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W11727651 Whirlpool Plate Assembly
6	W10242974 Whirlpool Refrigerator 25" Tube
8	WPW10655368 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	WP12729123 Whirlpool Refrigerator Heater
11	W10204187 Whirlpool Refrigerator Retainer
12	WPW10197428 Whirlpool Start Device
13	WPW10137529 Whirlpool Refrigerator Grommet
14	W10206339 Whirlpool Fastener
15	WP67005149 Whirlpool Roller
16	Screw
17	EXTENSION, BASEPAN
18	WPW10346415 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	W11547653 Whirlpool Refrigerator Drip Tray
21	67006425 Whirlpool Refrigerator Screw
22	W11536253 Whirlpool Refrigerator Evaporator
23	12963002SP Whirlpool Refrigerator Evaporator Support
23	DAM, RETURN (RIGHT HAND)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	W10234029 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	WPW10466675 Whirlpool Refrigerator Compressor
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	WPW10334458 Whirlpool Refrigerator Connector
