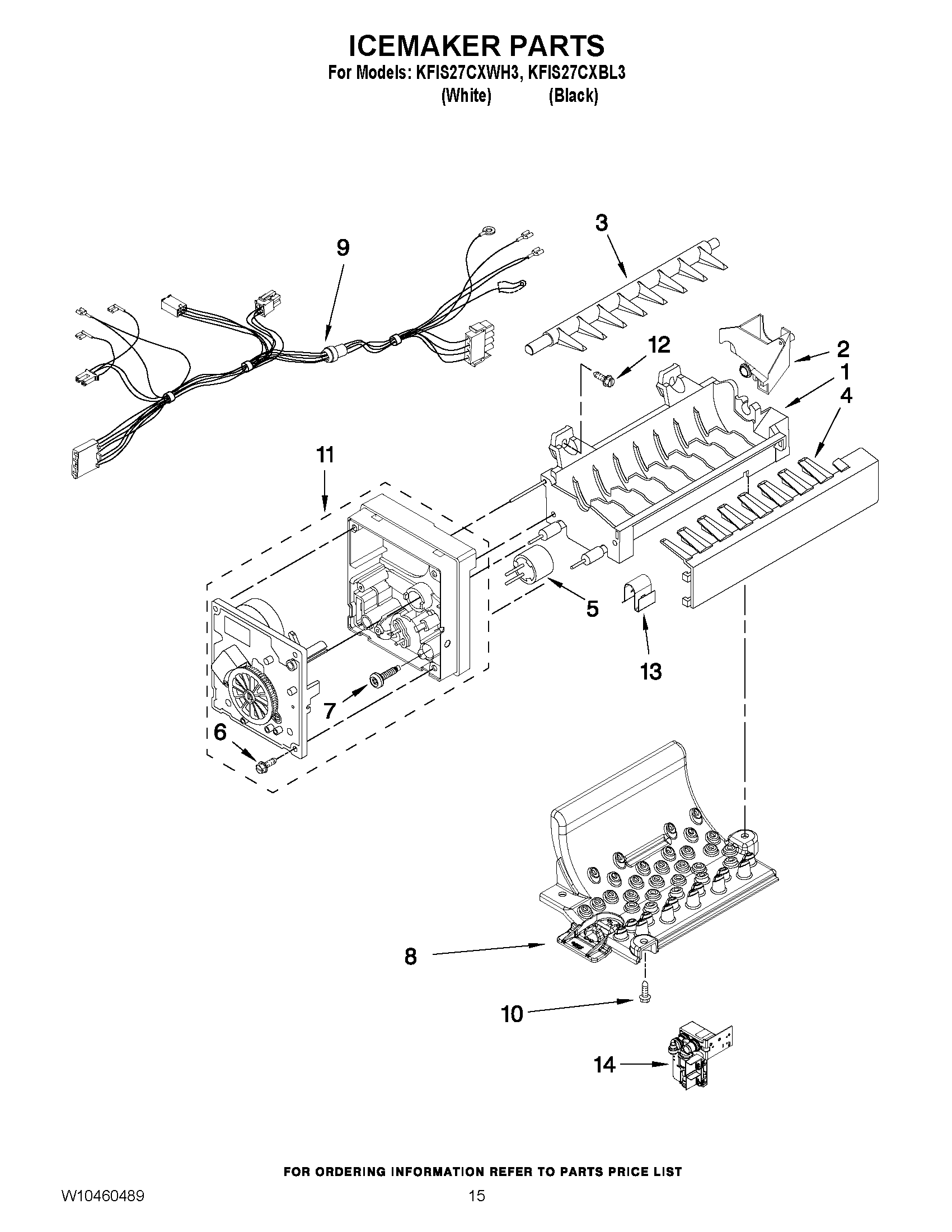

KFIS27CXBL3 08 – ICEMAKER PARTS

Products

Position	Product
NI	W11033771 Whirlpool Refrigerator Coupling
1	W10161596 Whirlpool Refrigerator Ice Mold
2	W10160726 Whirlpool Refrigerator Cup Fill
3	W10318644 Whirlpool Refrigerator Ejector Arm
4	ICE STRIPPER
5	WP627985 Whirlpool Icemaker Cycling Thermostat
6	W10001240 Whirlpool Refrigerator Screw
7	8533917 Whirlpool Refrigerator Screw
8	DUCT, IMPINGER TOP
9	W10384189 Whirlpool Refrigerator Wire Harness
10	67006425 Whirlpool Refrigerator Screw
11	MODULE ASSEMBLY
12	WPW10068250 Whirlpool Dishwasher Screw
13	WP628379 Whirlpool Refrigerator Clip
14	WPW10270395 Whirlpool Refrigerator Valve
100	ICEMAKER ASSEMBLY
