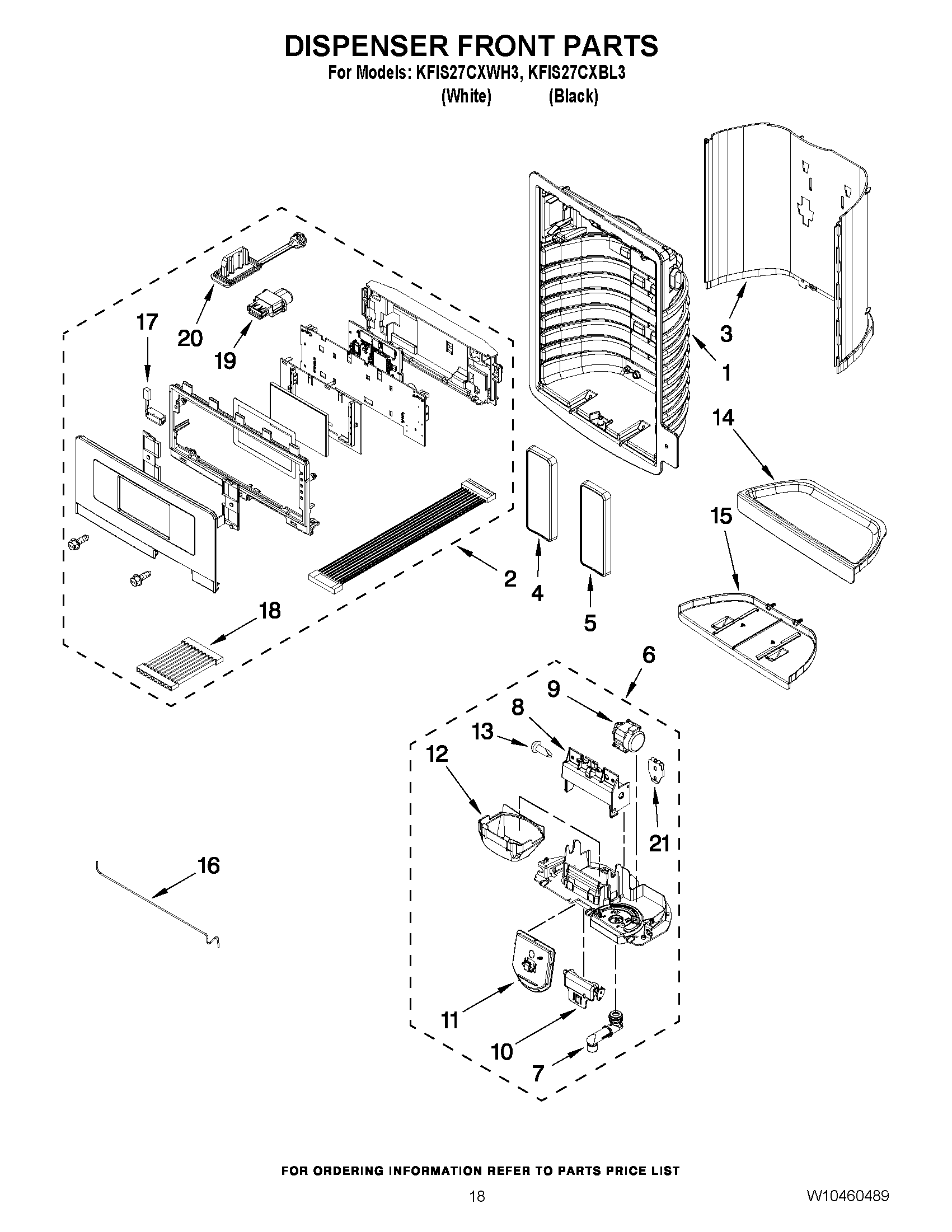

KFIS27CXBL3 10 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2UI ASSEMBLY (WHITE)
2UI ASSEMBLY (BLACK)
3W11045975 Whirlpool Refrigerator Shield
3W11045976 Whirlpool Refrigerator Shield
4PAD, ICE DISPENSER (BLACK)
4PAD, ICE DISPENSER (WHITE)
5PAD, WATER DISPENSER (BLACK)
5PAD, WATER DISPENSER (WHITE)
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8W10174827 Whirlpool Refrigerator Bracket
9WPW10205979 Whirlpool Refrigerator Ice Door Motor
10WPW10346124 Whirlpool Refrigerator Support
11WPW10317279 Whirlpool Refrigerator Door Chute
12WPW10435760 Whirlpool Refrigerator Ice Guide
13WP4449745 Whirlpool Screw
14W11045971 Whirlpool Refrigerator Drip Tray
14W11045970 Whirlpool Refrigerator Drip Tray
15W10267861 Whirlpool Refrigerator Drip Tray
15W10267860 Whirlpool Refrigerator Drip Tray
16TUBE, WATER (DISPENSER)
17W11290115 Whirlpool Refrigerator Light
18HARNESS, JUMPER
19HARNESS, USB
20COVER- USB
21W10174818 Whirlpool Refrigerator Clip
