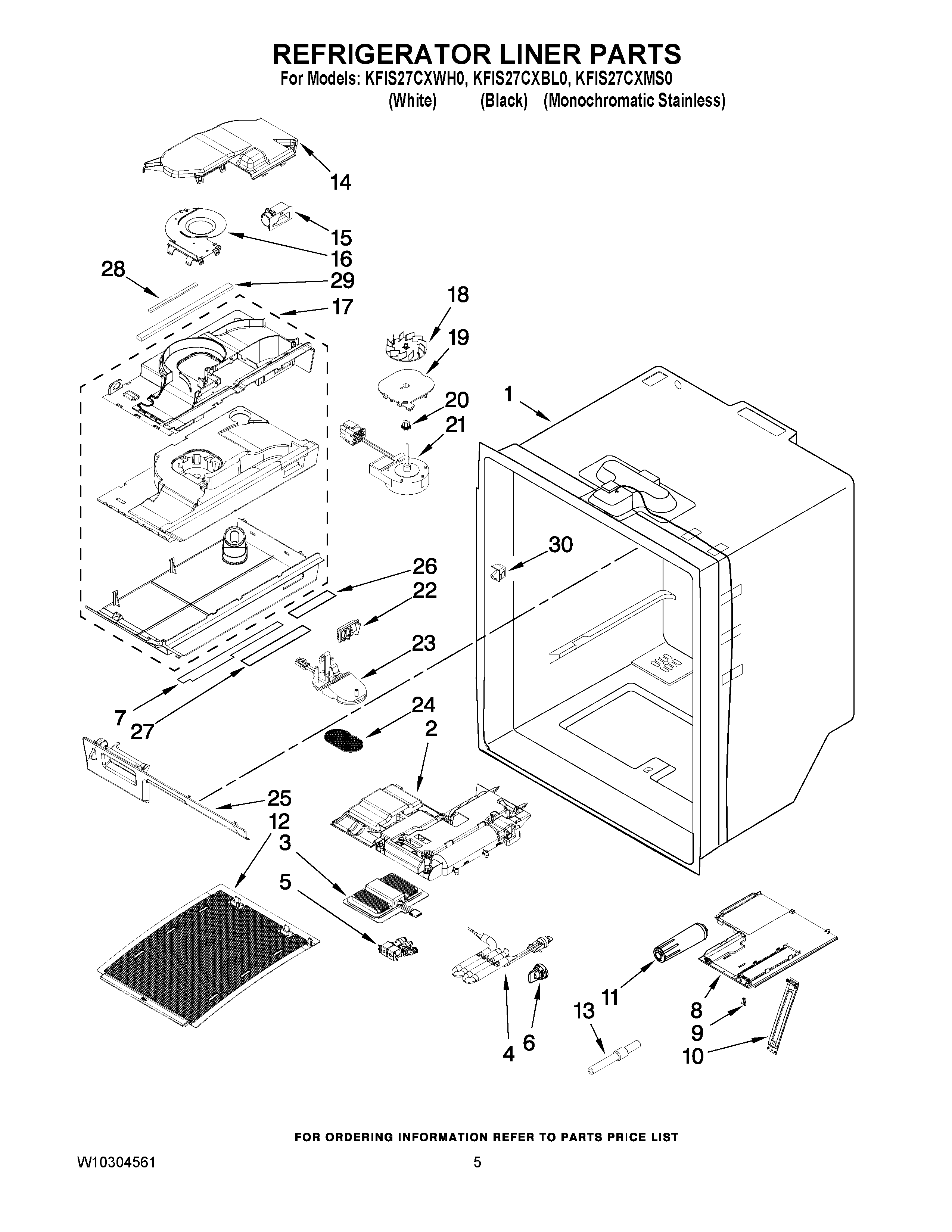

KFIS27CXMS0 03 – REFRIGERATOR LINER PARTS

KFIS27CXMS0 03 – REFRIGERATOR LINER PARTS

Written by

in

KFIS27CXMS0 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIWPW10267346 Whirlpool Refrigerator Wire Harness
2BRACKET, WATER SYSTEM
3W11125428 Whirlpool Electronic Control Board + Core
4WPW10216070 Whirlpool Refrigerator Reservoir
5WP12956105 Whirlpool Refrigerator Valve
6W11395888 Whirlpool Refrigerator Bypass Filter Cap
8COVER, WATER SYSTEM
9WP2223877 Whirlpool Door Hook
10DOOR, FILTER ACCESS
11everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
12LENS, REFRIGERATOR LED
13WATERLINE, VALVE TO HINGE
14DUCT, SCROLL INLET
15WPW10247377 Whirlpool Refrigerator Control
16PLATE, SCROLL INLET
17CABINET (NOT A SERVICEABLE PART)
18WPW10123444K Whirlpool Refrigerator Wheel
19BRACKET, MOTOR
20WP67002780 Whirlpool Refrigerator Grommet
21W11334745 Whirlpool Refrigerator Evaporator Fan Motor
22GRILLE, REF AIR
23W10679370 Whirlpool Refrigerator Module
24W10237349 Whirlpool Refrigerator Light Lens
25FASCIA ASSEMBLY (INCLUDES DOOR, SWITCH, & SPRING)
26GASKET, SMALL
27GASKET, GROMMET
28GASKET, ICEBOX (SHORT)
29GASKET, ICEBOX (LONG)
30W11396033 Whirlpool Refrigerator Rocker Switch
100ICEBOX ASSEMBLY, COMPLETE
