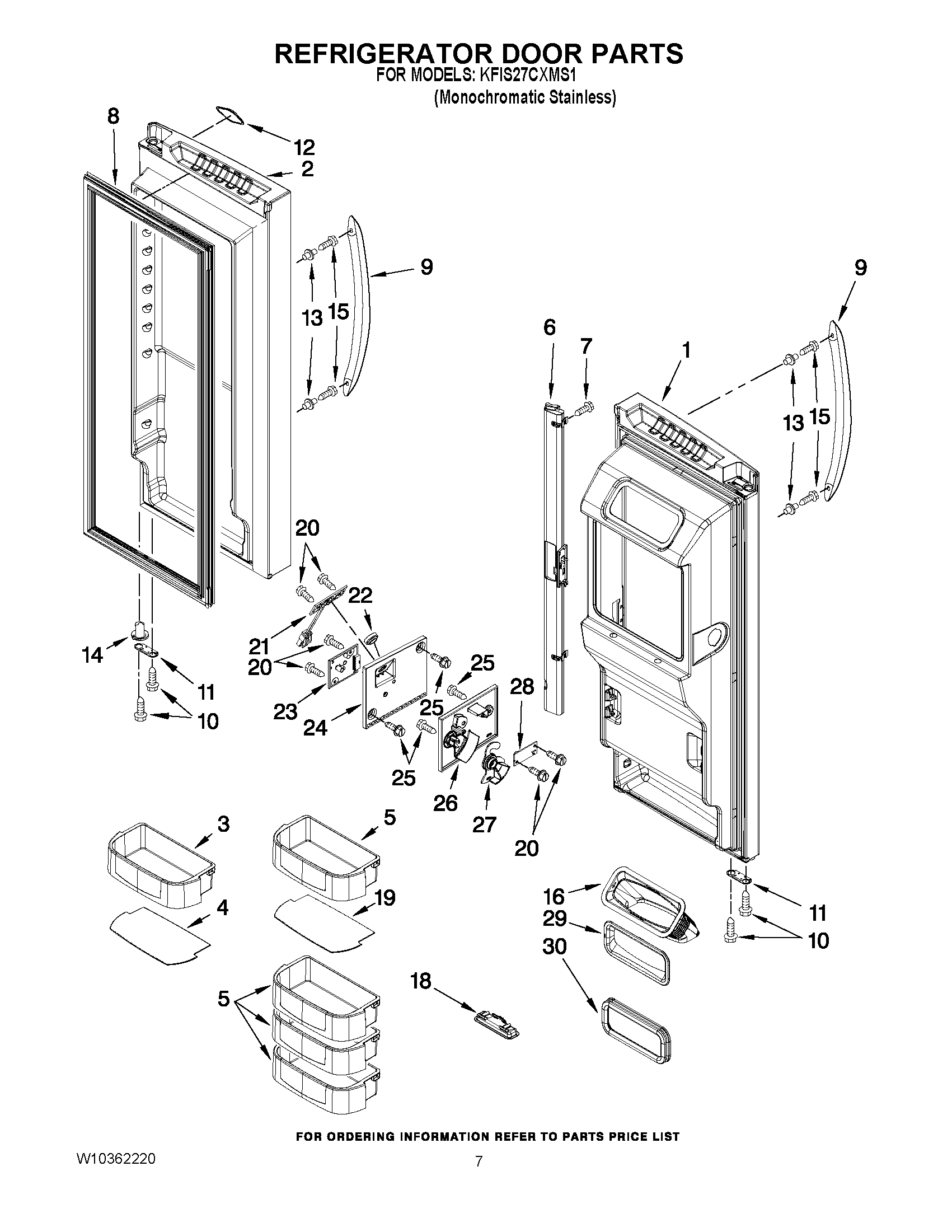

KFIS27CXMS1 04 – REFRIGERATOR DOOR PARTS

KFIS27CXMS1 04 – REFRIGERATOR DOOR PARTS

Written by

in

KFIS27CXMS1 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, LEFT (STAINLESS)
2DOOR, RIGHT (STAINLESS)
3BUCKET, SMALL
4GRIPPER, GALLON
5BUCKET, DOOR GALLON (RH) (WITHOUT GRIPPER)
6WP12722815AP Whirlpool Refrigerator Mullion Rail
7W11311945 Whirlpool Refrigerator Screw
8GASKET-FIP GRAY
9WPW10314517K Whirlpool Refrigerator Handle
10WP98165 Whirlpool Screw
11W11703060 Whirlpool Door Stop
12WPW10243391 Whirlpool Refrigerator Nameplate
13WP67006113 Whirlpool Stud Bolt
14WP12028505AP Whirlpool Closing Cam
15SCREW
16CHUTE, ICE DOOR
18LATCH, ICE BIN
19GRIPPER
202006254 Whirlpool Refrigerator Screw
21WPW10305123 Whirlpool Refrigerator Electronic Control Board
22LENS, ICE BIN LED
23BOARD, RECEIVER
24COVER, RECEIVER
25WP3400065 Whirlpool Refrigerator Screw
26COVER, EMITTER
27SHUTOFF, EMITTER
28W10870822 Whirlpool Refrigerator Electronic Control Board
29SEAL, ICE DOOR
30GASKET, ICE CHUTE
