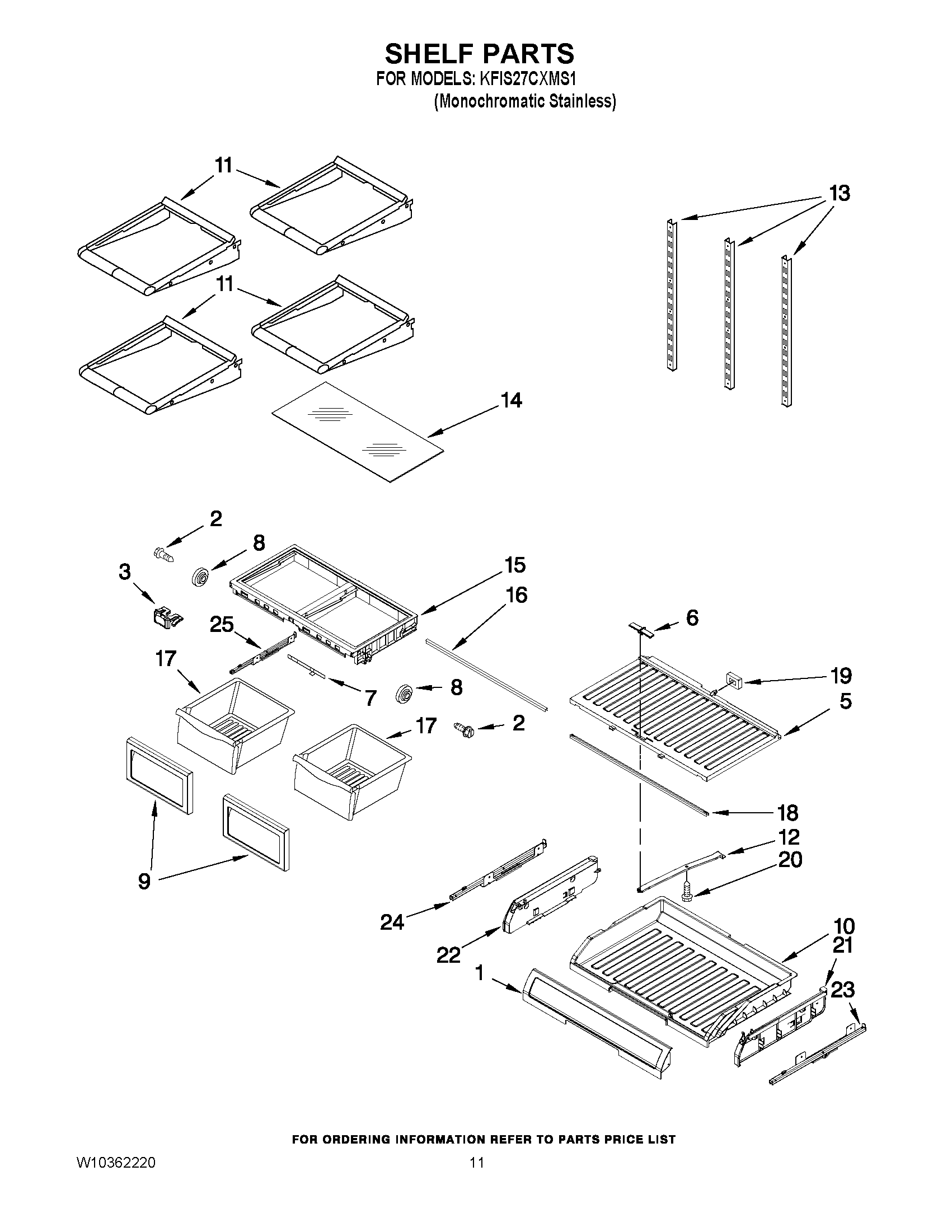

KFIS27CXMS1 06 – SHELF PARTSadmin2025-04-26T11:43:33+00:00KFIS27CXMS1 06 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | LID ASSEMBLY, PANTRY |
| 2 | 67006692 Whirlpool Refrigerator Screw |
| 3 | W10119222 Whirlpool Refrigerator Control Knob |
| 5 | PANTRY, TOP |
| 6 | KNOB, PANTRY TEMP |
| 7 | W10119217 Whirlpool Refrigerator Slide |
| 8 | ROLLER, CRISPER FRAME |
| 9 | FRONT, CRISPER |
| 10 | PAN, PANTRY |
| 11 | W10205737 Whirlpool Refrigerator Glass Shelf |
| 12 | ARM, PANTRY CONTROL |
| 13 | LADDER (3) |
| 14 | GLASS, CRISPER |
| 15 | FRAME, CRISPER |
| 16 | W10490807 Whirlpool Refrigerator Support |
| 17 | PAN, CRISPER (2) |
| 18 | WP12227305WD Whirlpool Drawer Support |
| 19 | GASKET, PANTRY |
| 20 | SCREW |
| 21 | ENDCAP, PANTRY(RH) |
| 22 | ENDCAP, PANTRY(LH) |
| 23 | W10132652 Whirlpool Refrigerator Glide |
| 24 | WPW10132653 Whirlpool Refrigerator Glide |
| 25 | GLIDE-CRISPER-L |
| 25 | GLIDE-CRISPER-R |
