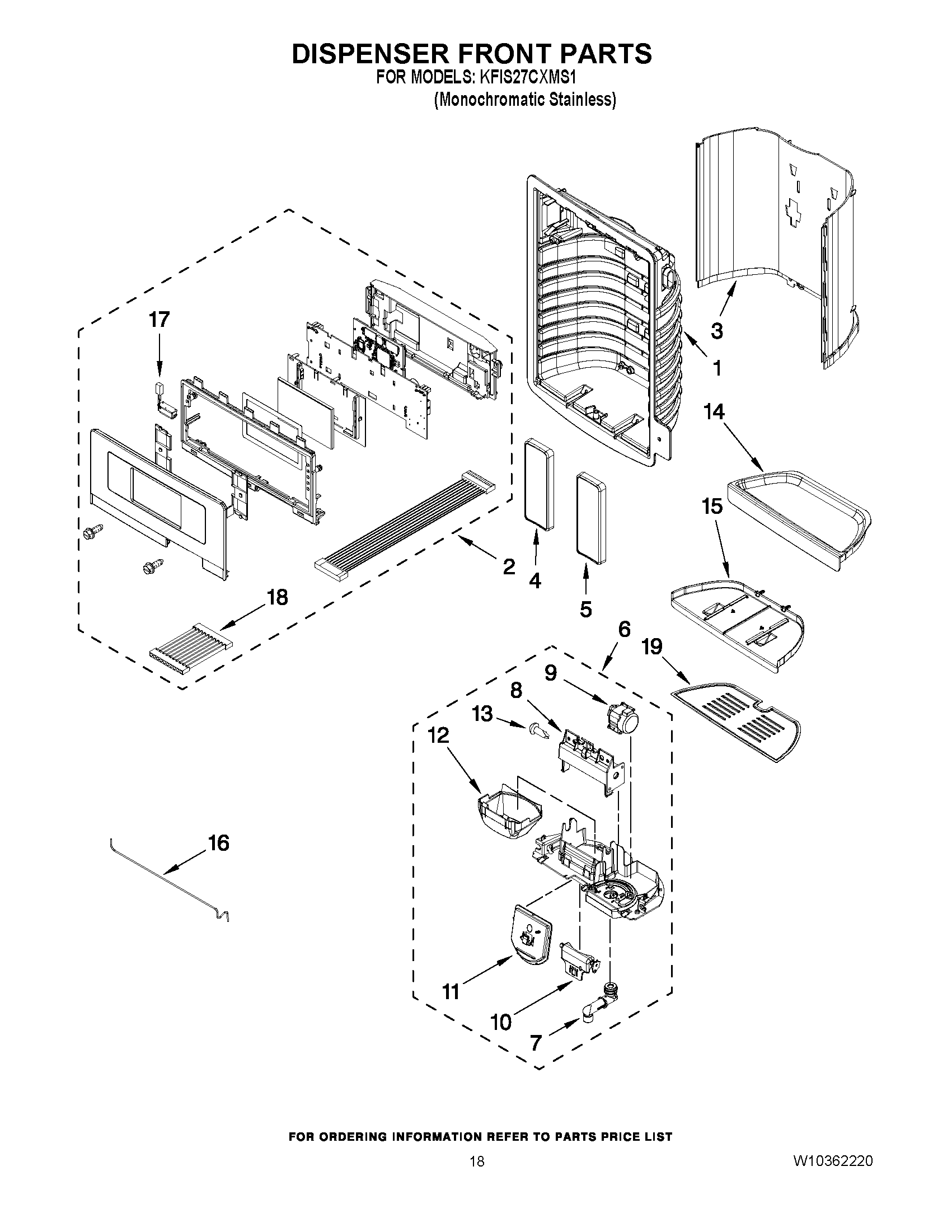

KFIS27CXMS1 10 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2UI ASSEMBLY (STAINLESS)
3W10305890 Whirlpool Refrigerator Shield
4WPW10368730 Whirlpool Refrigerator Pad
5PAD, WATER DISPENSER (APOLLO GRAY)
6WPW10353552 Whirlpool Refrigerator Separator
7W11227371 Whirlpool Refrigerator Spigot
8W10174827 Whirlpool Refrigerator Bracket
9WPW10205979 Whirlpool Refrigerator Ice Door Motor
10WPW10346124 Whirlpool Refrigerator Support
11W10346235 Whirlpool Refrigerator Chute Door
12WPW10435760 Whirlpool Refrigerator Ice Guide
13WP4449745 Whirlpool Screw
14WPW10305897 Whirlpool Refrigerator Drip Tray
15WPW10267863 Whirlpool Refrigerator Drip Tray
16TUBE, WATER (DISPENSER)
17W11290115 Whirlpool Refrigerator Light
18HARNESS, JUMPER
19GRATE, DRIP
