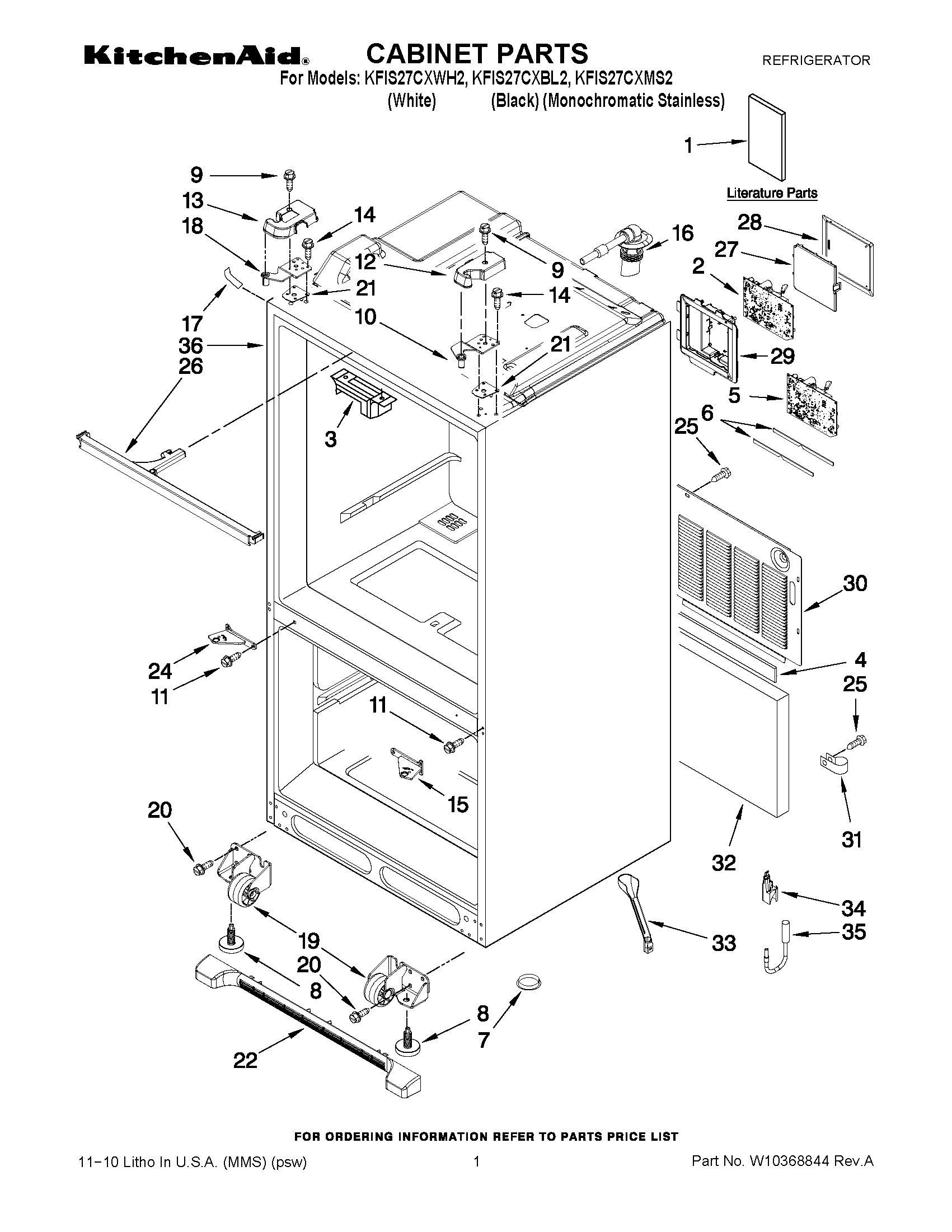

KFIS27CXMS2 01 – CABINET PARTSadmin2025-04-26T12:33:21+00:00KFIS27CXMS2 01 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | TECH SHEET |
| 1 | OWNERS MANUAL |
| 1 | TAG, ENERGY |
| 2 | WPW10226427 Whirlpool Refrigerator Electronic Control Board |
| 3 | WP67003405 Whirlpool Pivot Block |
| 4 | B5759655 Whirlpool Refrigerator Gasket |
| 5 | WPW10267646 Whirlpool Refrigerator Electronic Control Board |
| 6 | GASKET-HV CNTRL-2 |
| 7 | A3076901 Whirlpool Refrigerator Plug |
| 8 | WPW10141622 Whirlpool Leveler |
| 9 | WP8281196 Whirlpool Screw |
| 10 | W11592374 Whirlpool Refrigerator Top Door Hinge |
| 11 | WP67006380 Whirlpool Screw |
| 12 | COVER, RIGHT HINGE (WHITE) |
| 12 | COVER, RIGHT HINGE (BLACK) |
| 12 | COVER, RIGHT HINGE (APOLLO GREY) |
| 13 | COVER, LEFT HINGE (STAINLESS) |
| 13 | COVER, LEFT HINGE (BLACK) |
| 13 | COVER, LEFT HINGE (WHITE) |
| 14 | WP489349 Whirlpool Refrigerator Screw |
| 15 | W10918168 Whirlpool Refrigerator Door Hinge |
| 15 | 13000002WD Whirlpool Refrigerator Door Hinge |
| 16 | FILL TUBE, ICEMAKER |
| 17 | 12587703W Whirlpool Refrigerator Cover |
| 17 | 67003485 Whirlpool Refrigerator Corner Cover (Black) |
| 17 | WP12587703AP Whirlpool Refrigerator Filler |
| 18 | W10213415 Whirlpool Refrigerator Door Hinge |
| 19 | WPW10515763 Whirlpool Refrigerator Cabinet Roller |
| 19 | WPW10515762 Whirlpool Refrigerator Cabinet Roller |
| 20 | 67006564 Whirlpool Refrigerator Screw |
| 21 | 12999502 Whirlpool Refrigerator Hinge Shim |
| 21 | 12999501 Whirlpool Refrigerator Hinge Shim |
| 22 | WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray |
| 22 | WPW10534154 Whirlpool Refrigerator Front Grille |
| 22 | WPW10534153 Whirlpool Refrigerator Black Kickplate Grille |
| 24 | W10918164 Whirlpool Refrigerator Door Hinge |
| 24 | W10917988 Whirlpool Refrigerator Door Hinge |
| 24 | W10918113 Whirlpool Refrigerator Door Hinge |
| 25 | 67006425 Whirlpool Refrigerator Screw |
| 26 | COVER, WATER LINE (WHITE) |
| 26 | COVER, WATER LINE (BLACK) |
| 26 | COVER, WATER LINE (APOLLO GREY) |
| 27 | W11226688 Whirlpool Refrigerator Cover |
| 28 | 12961602 Whirlpool Refrigerator Wire Cover |
| 29 | WPL W10159461 |
| 30 | WPW10270394 Whirlpool Refrigerator Back Cover |
| 31 | W11456069 Whirlpool Refrigerator Clamp |
| 32 | INSULATION, SOUND |
| 33 | W10619951 Whirlpool Drain Tube with Grommet |
| 34 | COVE |
| 35 | WPL W10223786 |
| 36 | CABINET (NOT A SERVICEABLE PART) |
