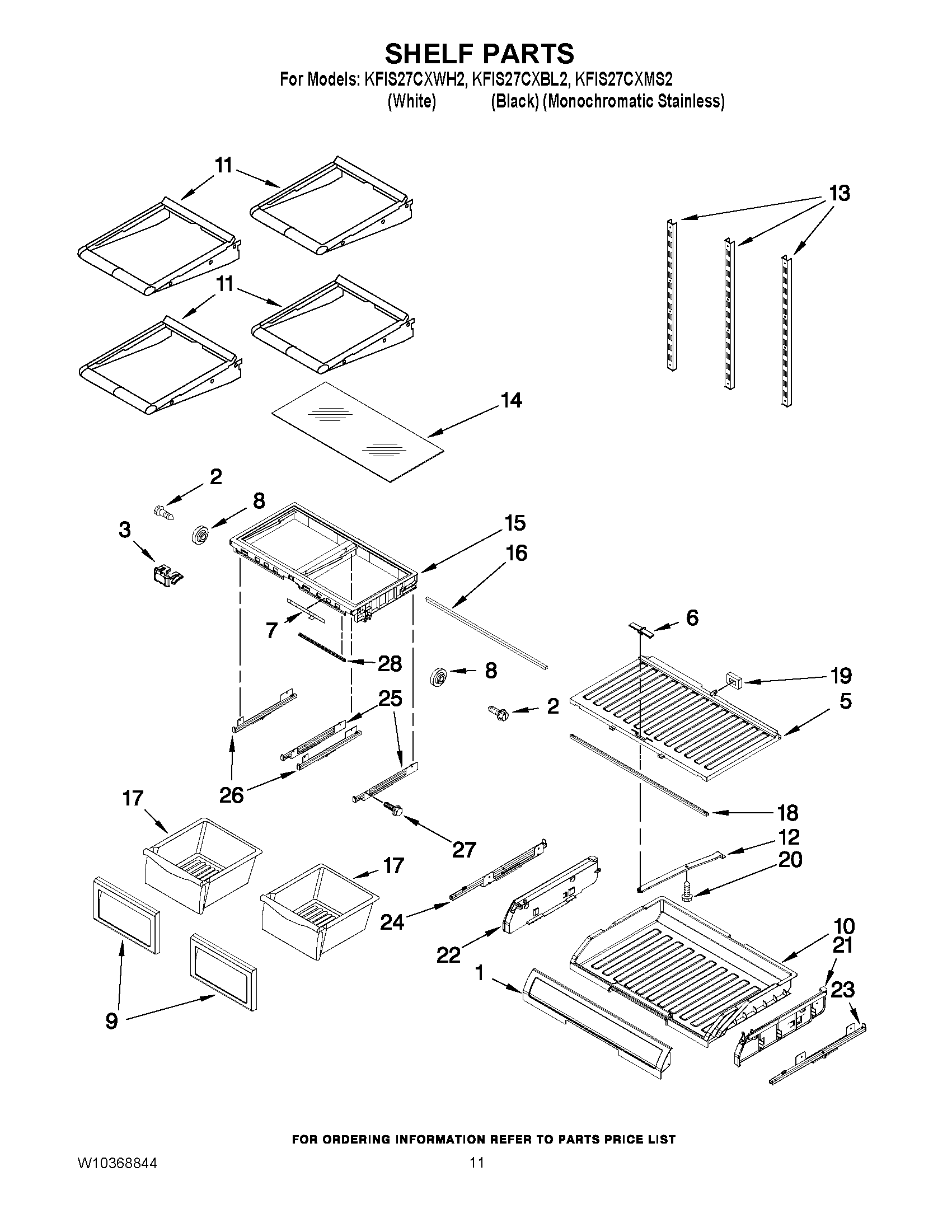

KFIS27CXMS2 06 – SHELF PARTS

Products

Position	Product
1	LID ASSEMBLY, PANTRY
2	67006692 Whirlpool Refrigerator Screw
3	W10119222 Whirlpool Refrigerator Control Knob
5	PANTRY, TOP
6	KNOB, PANTRY TEMP
7	W10119217 Whirlpool Refrigerator Slide
8	ROLLER, CRISPER FRAME
9	FRONT, CRISPER
10	PAN, PANTRY
11	W10205737 Whirlpool Refrigerator Glass Shelf
12	ARM, PANTRY CONTROL
13	LADDER (3)
14	GLASS, CRISPER
15	FRAME, CRISPER
16	W10490807 Whirlpool Refrigerator Support
17	PAN, CRISPER (2)
18	WP12227305WD Whirlpool Drawer Support
19	GASKET, PANTRY
20	SCREW
21	ENDCAP, PANTRY(RH)
22	ENDCAP, PANTRY(LH)
23	W10132652 Whirlpool Refrigerator Glide
24	WPW10132653 Whirlpool Refrigerator Glide
25	GLIDE-CRISPER-R
26	GLIDE-CRISPER-L
27	67006425 Whirlpool Refrigerator Screw
28	GASKET-PAN COVER
