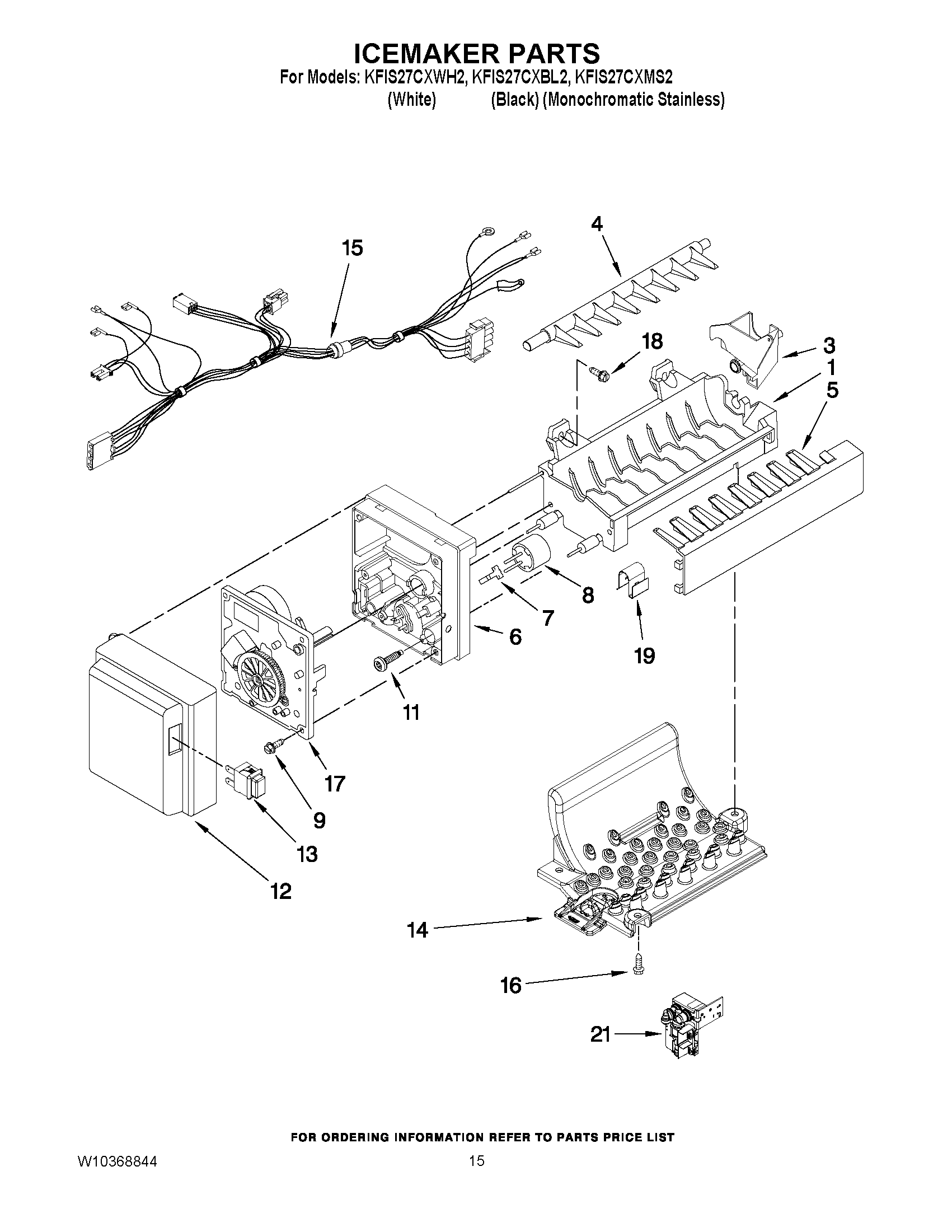

KFIS27CXMS2 08 – ICEMAKER PARTS

KFIS27CXMS2 08 – ICEMAKER PARTS

Written by

in

KFIS27CXMS2 08 – ICEMAKER PARTS

Products

PositionProduct
NIW11033771 Whirlpool Refrigerator Coupling
1W10161596 Whirlpool Refrigerator Ice Mold
3W10160726 Whirlpool Refrigerator Cup Fill
4W10318644 Whirlpool Refrigerator Ejector Arm
5ICE STRIPPER
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP627985 Whirlpool Icemaker Cycling Thermostat
9W10001240 Whirlpool Refrigerator Screw
118533917 Whirlpool Refrigerator Screw
12COVER
13W10884855 Whirlpool Refrigerator Switch
14DUCT, IMPINGER TOP
15HARNESS, ICEMAKER
1667006425 Whirlpool Refrigerator Screw
178201515 Whirlpool Refrigerator Motor and Gear Module Kit
18WPW10068250 Whirlpool Dishwasher Screw
19WP628379 Whirlpool Refrigerator Clip
21WPW10270395 Whirlpool Refrigerator Valve
100WPW10122559 Whirlpool Refrigerator Icemaker
