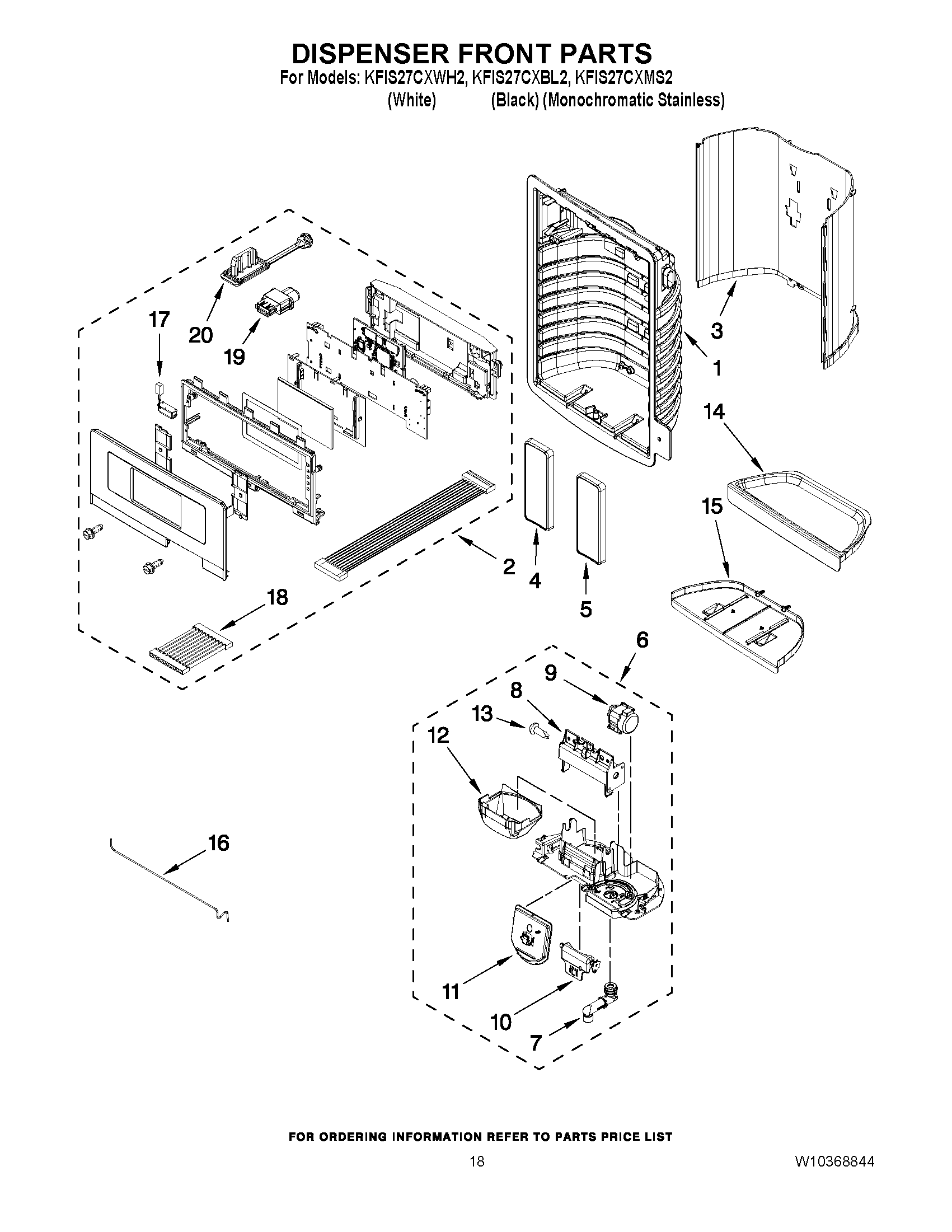

KFIS27CXMS2 10 – DISPENSER FRONT PARTSadmin2025-04-26T12:34:00+00:00KFIS27CXMS2 10 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| NI | GRATE, DRIP |
| 1 | CABINET (NOT A SERVICEABLE PART) |
| 2 | UI ASSEMBLY (BLACK) |
| 2 | UI ASSEMBLY (WHITE) |
| 2 | UI ASSEMBLY (STAINLESS) |
| 3 | W10305890 Whirlpool Refrigerator Shield |
| 3 | W11045976 Whirlpool Refrigerator Shield |
| 3 | W11045975 Whirlpool Refrigerator Shield |
| 4 | PAD, ICE DISPENSER (WHITE) |
| 4 | PAD, ICE DISPENSER (BLACK) |
| 4 | WPW10368730 Whirlpool Refrigerator Pad |
| 5 | PAD, WATER DISPENSER (APOLLO GRAY) |
| 5 | PAD, WATER DISPENSER (BLACK) |
| 5 | PAD, WATER DISPENSER (WHITE) |
| 6 | WPW10353552 Whirlpool Refrigerator Separator |
| 7 | W11227371 Whirlpool Refrigerator Spigot |
| 8 | W10174827 Whirlpool Refrigerator Bracket |
| 9 | WPW10205979 Whirlpool Refrigerator Ice Door Motor |
| 10 | WPW10346124 Whirlpool Refrigerator Support |
| 11 | W10346235 Whirlpool Refrigerator Chute Door |
| 12 | WPW10435760 Whirlpool Refrigerator Ice Guide |
| 13 | WP4449745 Whirlpool Screw |
| 14 | TRAY, DISPENSER (BLACK) |
| 14 | TRAY, DISPENSER (WHITE) |
| 14 | WPW10305897 Whirlpool Refrigerator Drip Tray |
| 15 | W10267861 Whirlpool Refrigerator Drip Tray |
| 15 | W10267860 Whirlpool Refrigerator Drip Tray |
| 15 | WPW10267863 Whirlpool Refrigerator Drip Tray |
| 16 | TUBE, WATER (DISPENSER) |
| 17 | W11290115 Whirlpool Refrigerator Light |
| 18 | HARNESS, JUMPER |
| 19 | HARNESS, USB |
| 20 | COVER- USB |
